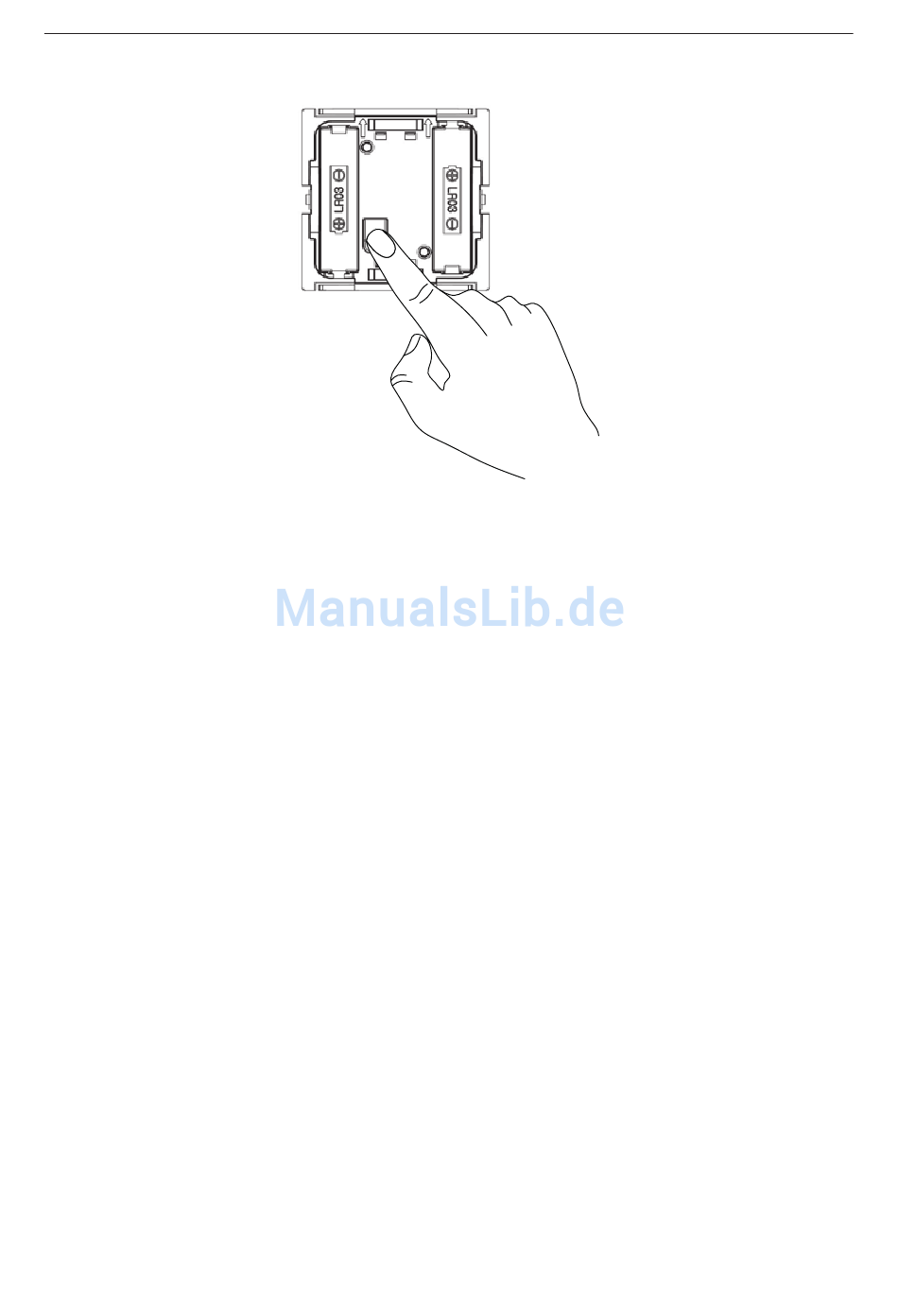

• Turn the electronic unit over and shortly press
the upper (D) and lower (I) push-button.
• The device LED (G) starts flashing orange.
• Now activate the teach-in mode of the device
that you want to connect to the status display.
For further information, please refer to the user
manual of the corresponding device.
• If teaching of rocker buttons is successful, it is
indicated with an illuminated green LED.
• The lower push-button is defined for the
functions OFF, DOWN or DARKER, the up-
per push-button for the functions ON, UP or
BRIGHTER. For dimming, press and hold down
the corresponding push-button.
• If you want to exit the configuration mode, press
the teach-in button again.
Start-up
