NE212

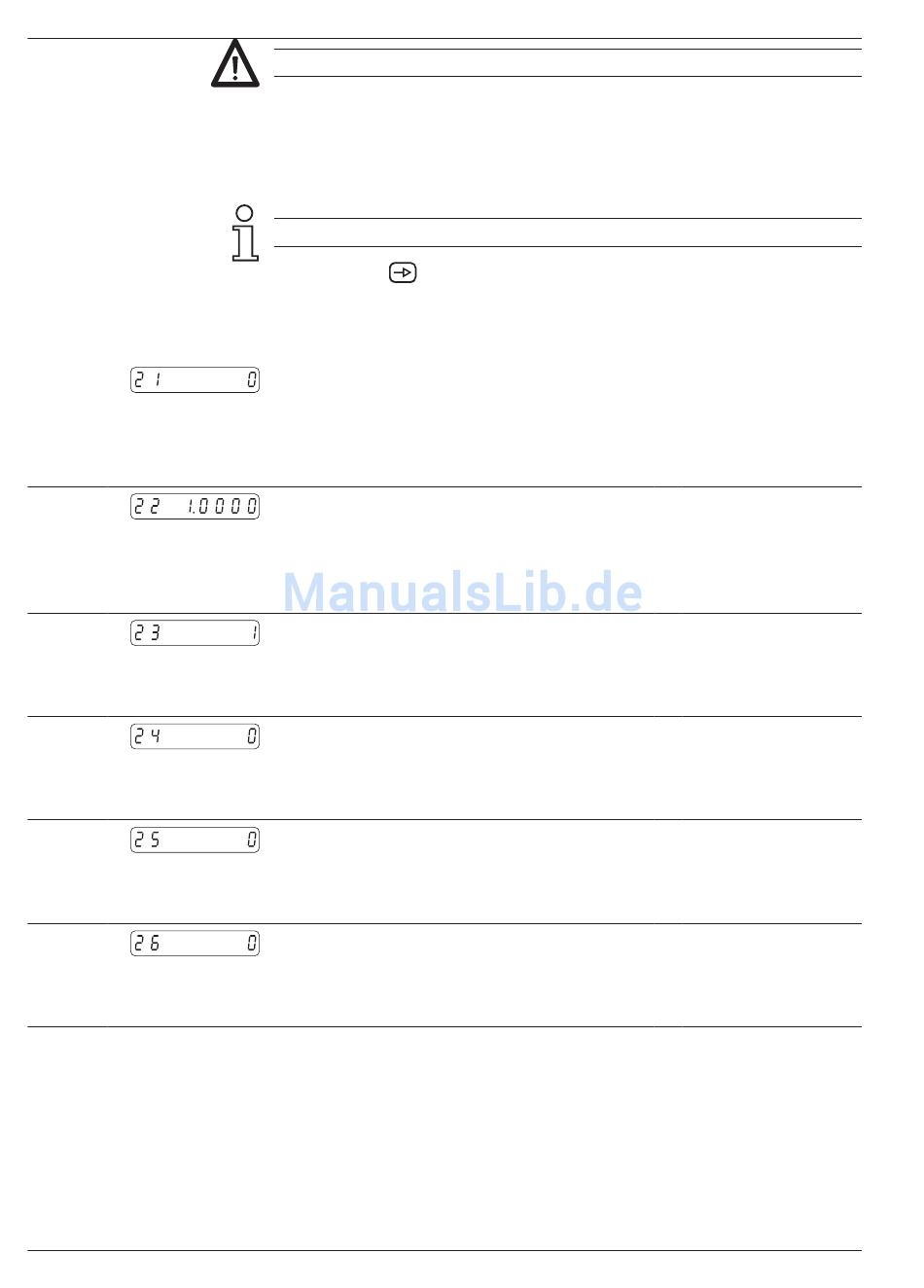

Line 21
Line 22
Line 23
Line 24
Line 25
Line 26
52
The default operating parameter status is zero.
Programming field 3 and 4
Programming field 3 begins with programming line 21, programming
field 4 with line 43. 26 programming lines are displayed in sequence
in these segments.
Default settings are always printed with *.
➜ Press the key again.
● Programming lines are displayed in succession.
The input is stored when the next line is called up.

Operating modes

0 * Step preset
1 Main presets
2 Parallel comparison
3 P1 Self-adjusting preset
Scaling factor, main counter
Scaling range from 0.0001 to 99.9999
* 1.0000
0.0001
99.9999
Multiplier, batch counter
* 1
2
99
Frequency, main counter track A
0 * 10 kHz
1 25 Hz
2 15 Hz
Frequency, main counter track B
0 * 10 kHz
1 25 Hz
2 15 Hz
Frequency, batch counter XB
0 * 10 kHz
1 25 Hz
2 15 Hz
