13. Rotate the middle hinge by 180
hinge axis is in the hinge hole of the lower door. Tighten the screws.
14. Adjust the upper door. Hold it in a safe position, so
that the middle hinge axis is in the hinge hole of the
upper door.

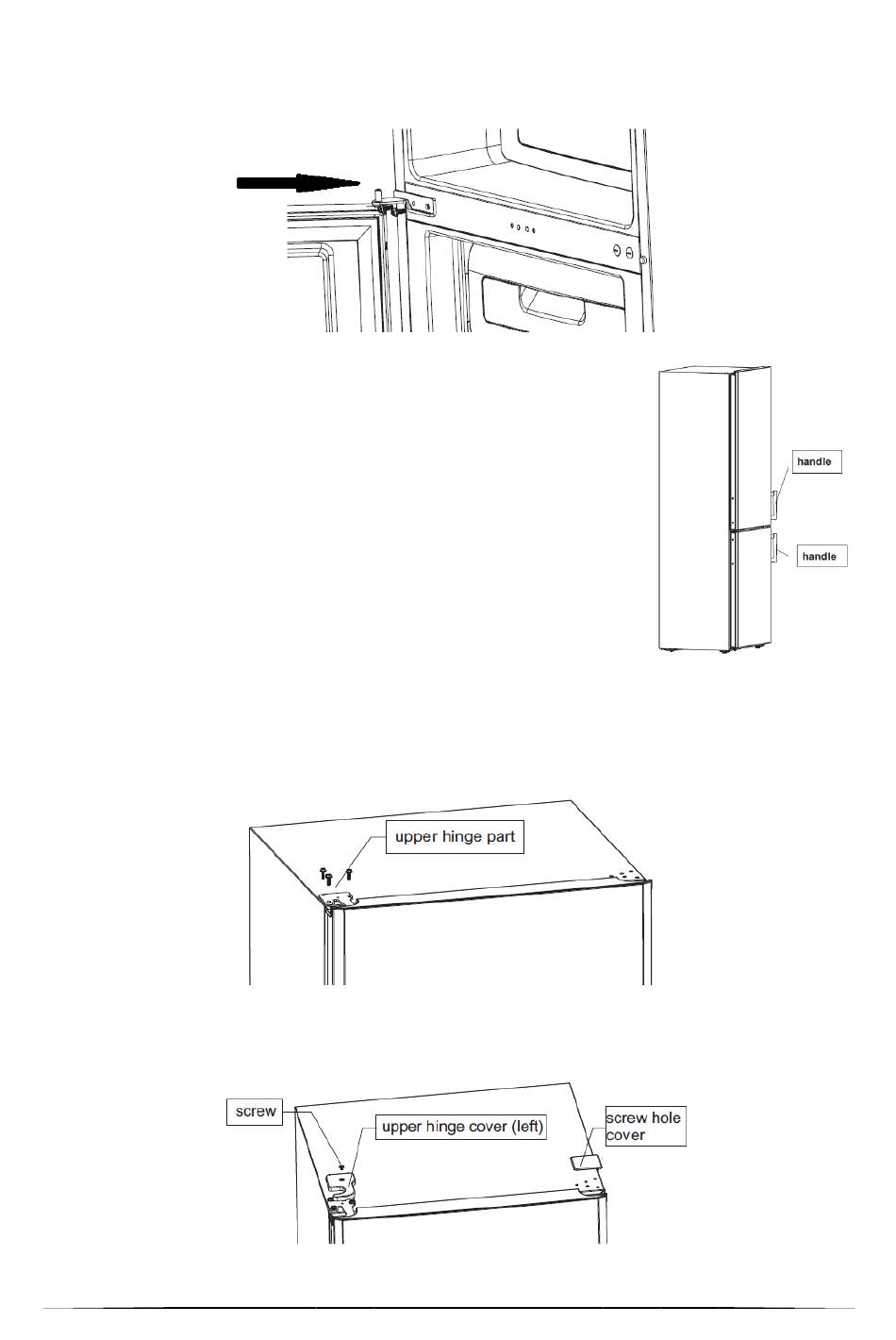

15. Fix the top hinge on the opposite side. The top hinge axis is in the hinge hole of
the upper door. Adjust the upper door properly. Support the upper door with
your hands while working.
16. Fix the covers of the screw holes on the right side. Fix the supplied top hinge
cover. Store the remaining hinge cover in a safe place.
17. Open the upper door and reinstall the door trays.
0
and place it on the opposite side, so that the
