Expanding the KVM matrix system by cascading
Cascading a matrix switch
Cascading allows you to increase the number of target computers to be connected.
In a cascade, a slave central module is connected to the dynamic ports of a master
central module. These ports must be configured as ports for the connection of target
modules.
You can connect either target modules or further slave central modules (up to 2 cas-
cade levels) to the slave central module.
Configuration and highlighting of port assignment
By default, the matrix switch auto-detects the modules connected to the ports and
configures the ports accordingly.
NOTE:
When connecting a user module or a target module, the ports are auto-con-
figured. In case of a cascade, note or change the port mode.
By default, the ports of the different variants of the ControlCenter-Compact series are
configured to connect both master and slave matrix switches:
Variant
ControlCenter-Compact-16C
ControlCenter-Compact-32C
ControlCenter-Compact-48C
ControlCenter-Compact-64C
ControlCenter-Compact-80C

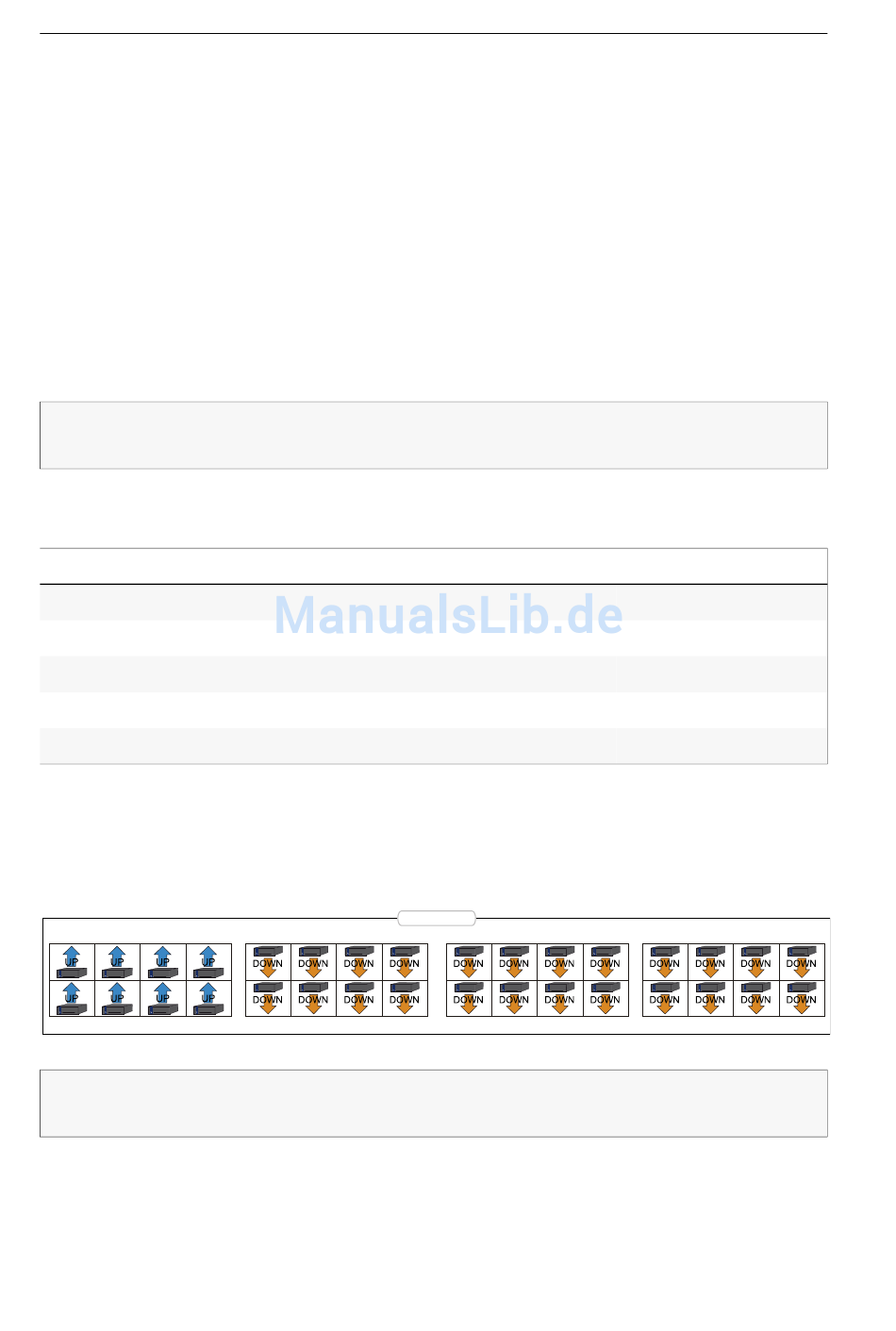

The following screenshot of the web application Config Panel shows the default port
assignment.
Connect master matrix switches to
down
ports.
2
4
6
8
1
3
5
7
IMPORTANT:
Detailed information about the configuration of dynamic ports is given
in the manual of the web application Config Panel.
16 · G&D ControlCenter-Compact
Up ports
1 to 4
1 to 8
1 to 12
1 to 16
1 to 20
up ports
Dynamic Ports
10
12
14
16
9
11
13
15
and slave matrix switches of a cascade to
18
20
22
24
17
19
21
23
Down ports
5 to 16
9 to 32
13 to 48
17 to 64
21 to 80
26
28
30
25
27
29
32
31
