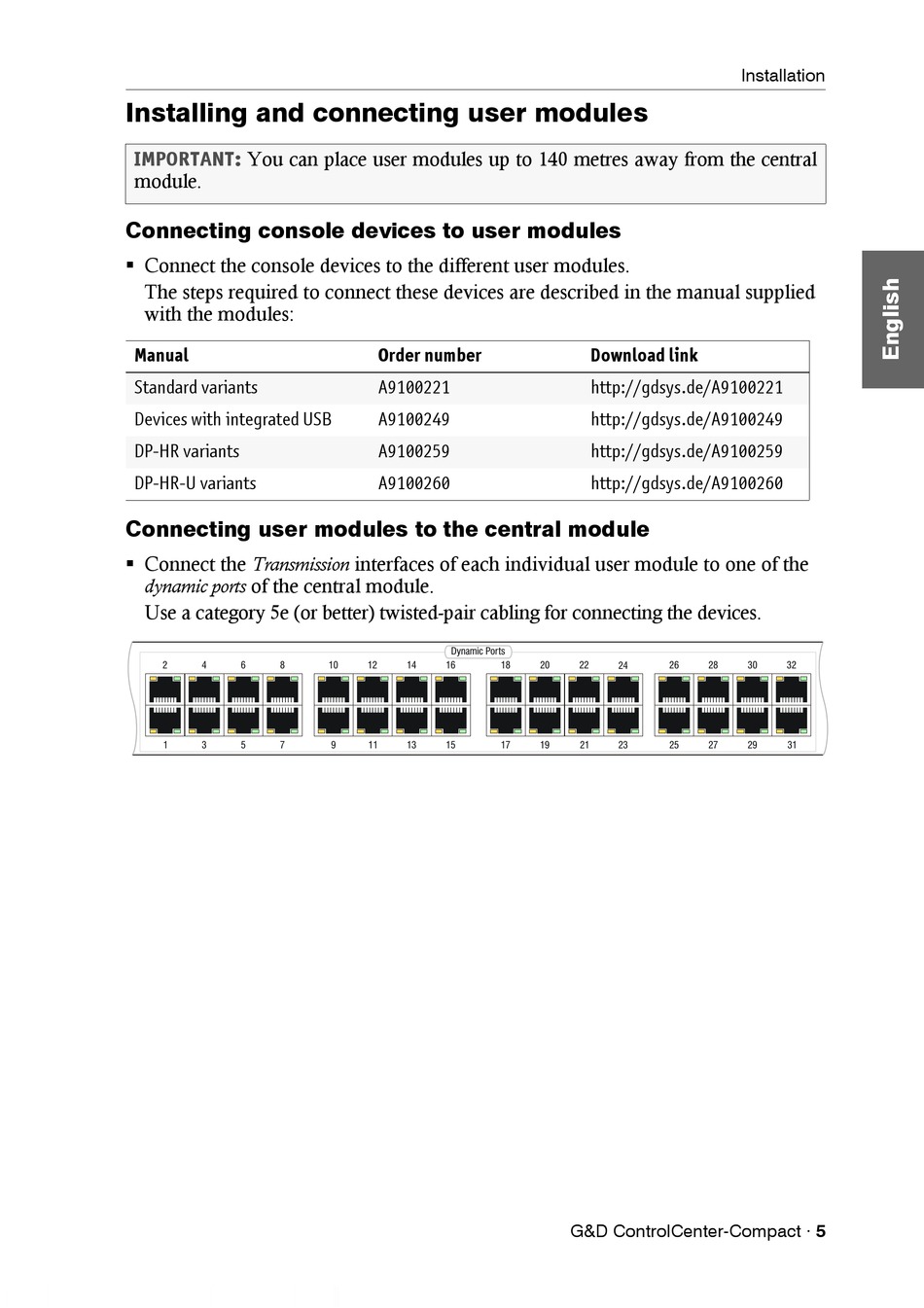

Installing and connecting user modules

IMPORTANT: You can place user modules up to 140 metres away from the central
module.

Connecting console devices to user modules

 Connect the console devices to the different user modules.
The steps required to connect these devices are described in the manual supplied
with the modules:
Manual
Standard variants
Devices with integrated USB
DP-HR variants
DP-HR-U variants

Connecting user modules to the central module

 Connect the Transmission interfaces of each individual user module to one of the
dynamic ports of the central module.
Use a category 5e (or better) twisted-pair cabling for connecting the devices.
2 4 6 8
3 5 7
1
Order number
A9100221
A9100249
A9100259
A9100260
Dynamic Ports
10 12 14 16 18
9 11 13 15 17
Download link
http://gdsys.de/A9100221
http://gdsys.de/A9100249
http://gdsys.de/A9100259
http://gdsys.de/A9100260
20 22 26 28
24
19 21 23 25 27
G&D ControlCenter-Compact · 5
Installation
30 32
29 31
