Installation

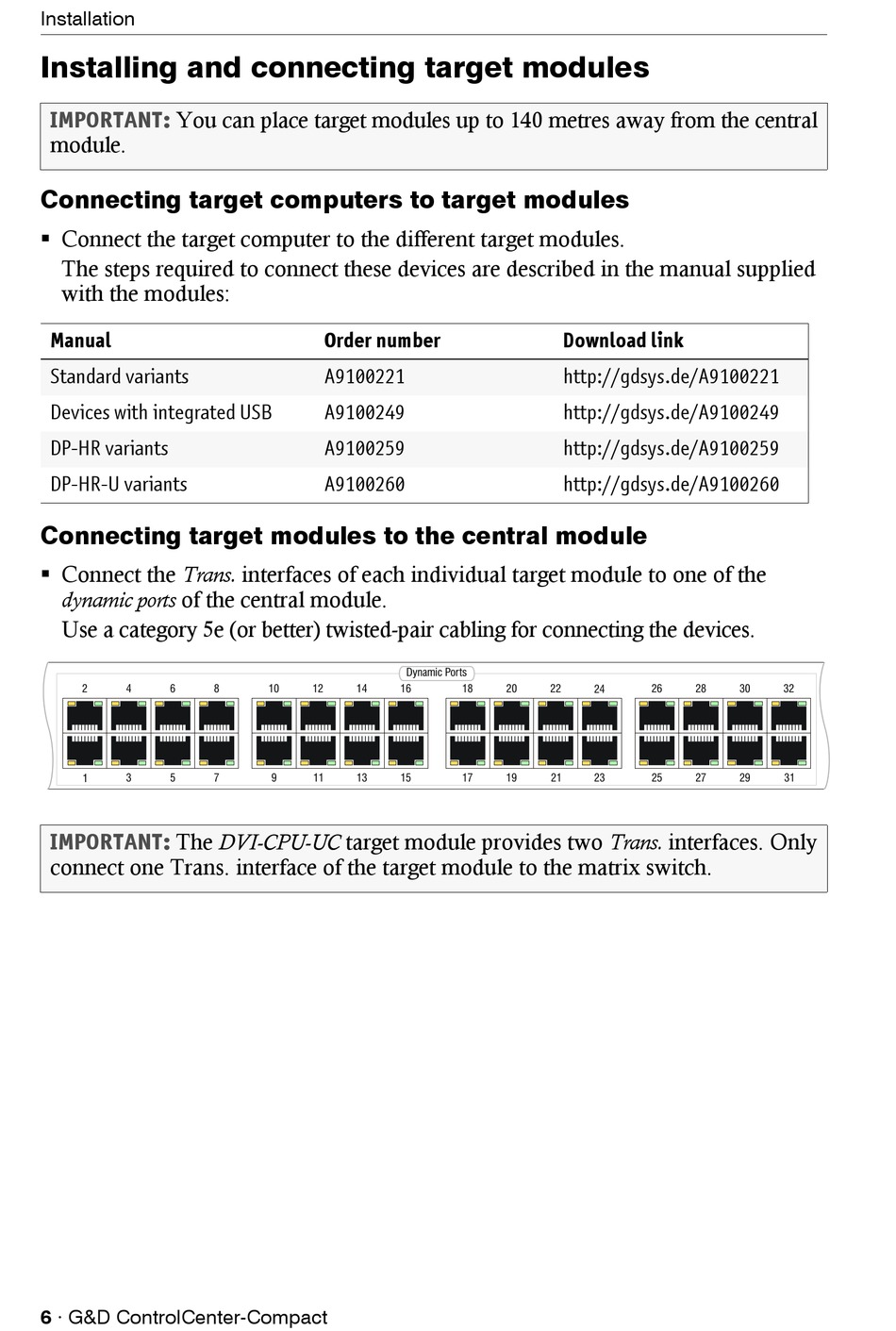

Installing and connecting target modules

IMPORTANT:
You can place target modules up to 140 metres away from the central
module.

Connecting target computers to target modules

 Connect the target computer to the different target modules.
The steps required to connect these devices are described in the manual supplied
with the modules:
Manual
Standard variants
Devices with integrated USB
DP-HR variants
DP-HR-U variants

Connecting target modules to the central module

 Connect the Trans. interfaces of each individual target module to one of the
dynamic ports of the central module.
Use a category 5e (or better) twisted-pair cabling for connecting the devices.
2 4 6
1 3 5
IMPORTANT: The DVI-CPU-UC target module provides two Trans. interfaces. Only
connect one Trans. interface of the target module to the matrix switch.
