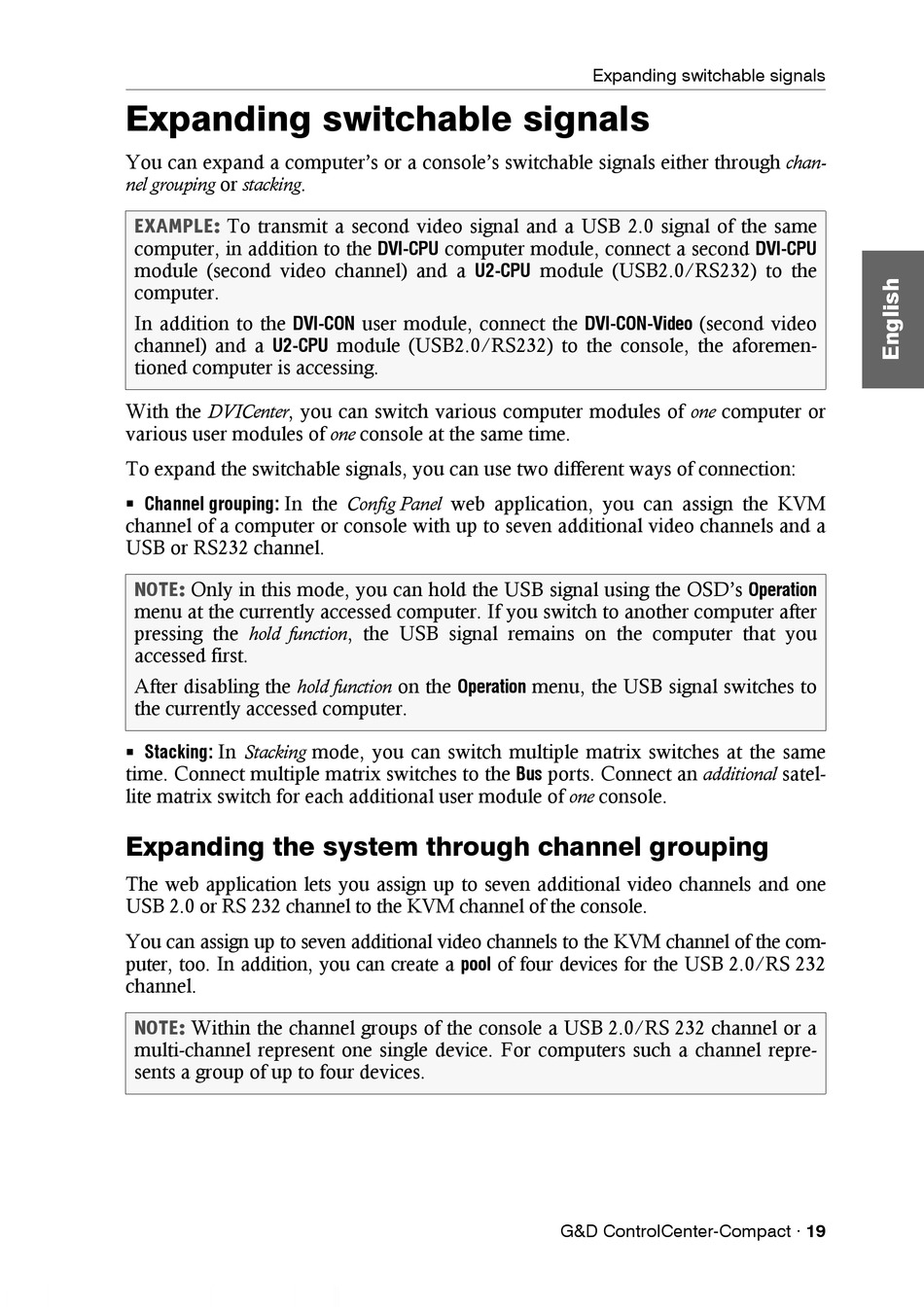

Expanding switchable signals

You can expand a computer's or a console's switchable signals either through chan-
nel grouping or stacking.
EXAMPLE: To transmit a second video signal and a USB 2.0 signal of the same
computer, in addition to the
module (second video channel) and a
computer.
In addition to the DVI-CON
channel) and a U2-CPU
tioned computer is accessing.
With the DVICenter, you can switch various computer modules of one computer or
various user modules of one console at the same time.
To expand the switchable signals, you can use two different ways of connection:
 Channel grouping: In the Config Panel web application, you can assign the KVM
channel of a computer or console with up to seven additional video channels and a
USB or RS232 channel.
NOTE: Only in this mode, you can hold the USB signal using the OSD's
menu at the currently accessed computer. If you switch to another computer after
pressing the hold function, the USB signal remains on the computer that you
accessed first.
After disabling the hold function on the
the currently accessed computer.
 Stacking: In Stacking mode, you can switch multiple matrix switches at the same
time. Connect multiple matrix switches to the
lite matrix switch for each additional user module of one console.

Expanding the system through channel grouping

The web application lets you assign up to seven additional video channels and one
USB 2.0 or RS 232 channel to the KVM channel of the console.
You can assign up to seven additional video channels to the KVM channel of the com-
puter, too. In addition, you can create a
channel.
NOTE: Within the channel groups of the console a USB 2.0/RS 232 channel or a
multi-channel represent one single device. For computers such a channel repre-
sents a group of up to four devices.
DVI-CPU computer module, connect a second
U2-CPU
user module, connect the
module (USB2.0/RS232) to the console, the aforemen-
Operation
pool of four devices for the USB 2.0/RS 232
Expanding switchable signals
module (USB2.0/RS232) to the
DVI-CON-Video
menu, the USB signal switches to
ports. Connect an additional satel-
Bus
G&D ControlCenter-Compact · 19
DVI-CPU
(second video
Operation
