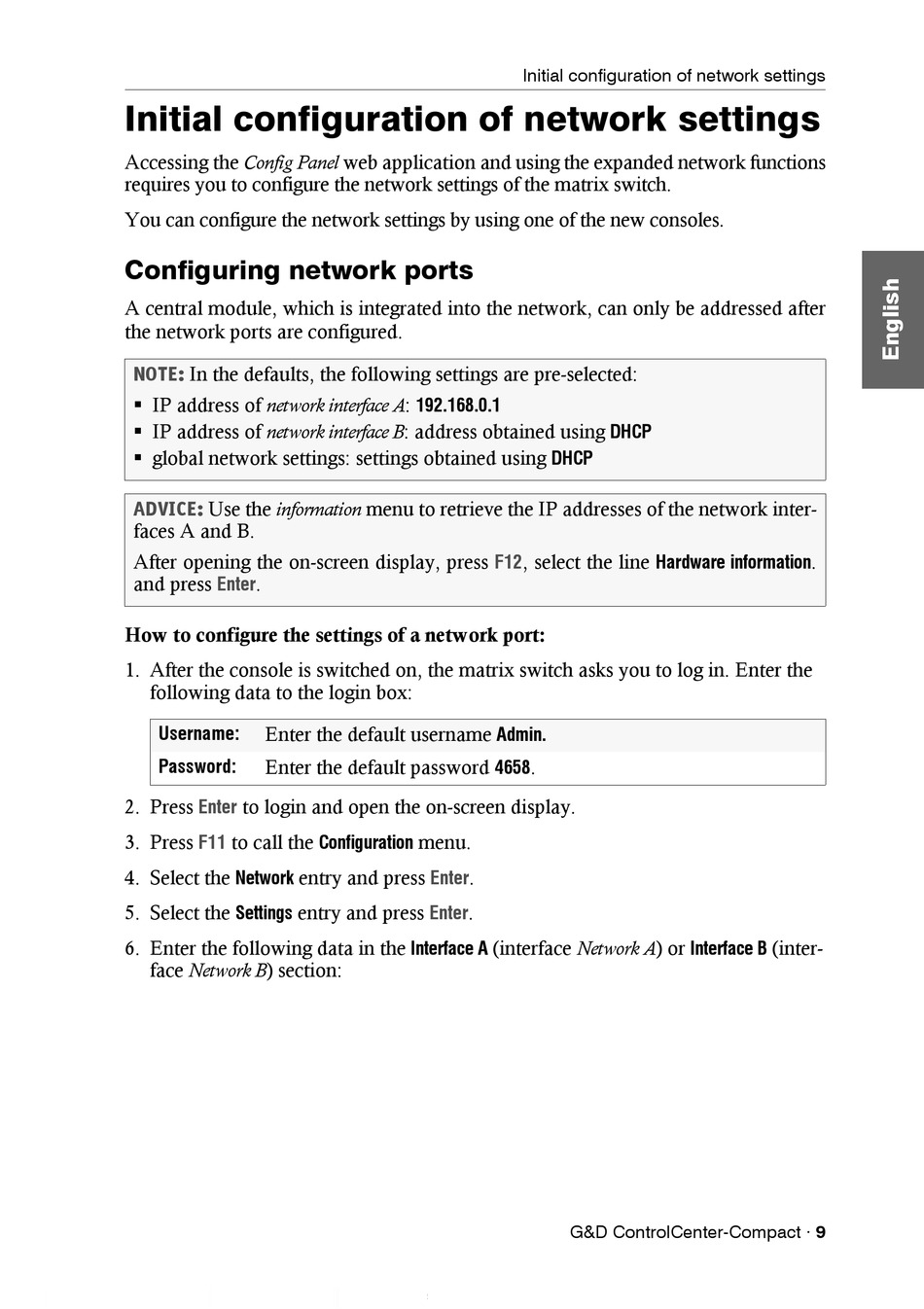

Initial configuration of network settings

Accessing the Config Panel web application and using the expanded network functions
requires you to configure the network settings of the matrix switch.
You can configure the network settings by using one of the new consoles.

Configuring network ports

A central module, which is integrated into the network, can only be addressed after
the network ports are configured.
NOTE: In the defaults, the following settings are pre-selected:
 IP address of network interface A:
 IP address of network interface B: address obtained using
 global network settings: settings obtained using
ADVICE: Use the information menu to retrieve the IP addresses of the network inter-
faces A and B.
After opening the on-screen display, press
and press Enter .
How to configure the settings of a network port:
1. After the console is switched on, the matrix switch asks you to log in. Enter the
following data to the login box:
Username:
Enter the default username
Password:
Enter the default password
2. Press to login and open the on-screen display.
Enter
3. Press to call the
F11
4. Select the Network entry and press
5. Select the Settings entry and press
6. Enter the following data in the
face Network B) section:
192.168.0.1
menu.
Configuration
Enter .
Enter .
Interface A (interface Network A) or
Initial configuration of network settings
DHCP
DHCP
, select the line
F12 Hardware information
Admin.
4658 .
G&D ControlCenter-Compact · 9
.
Interface B (inter-
