Guntermann & Drunck GmbH

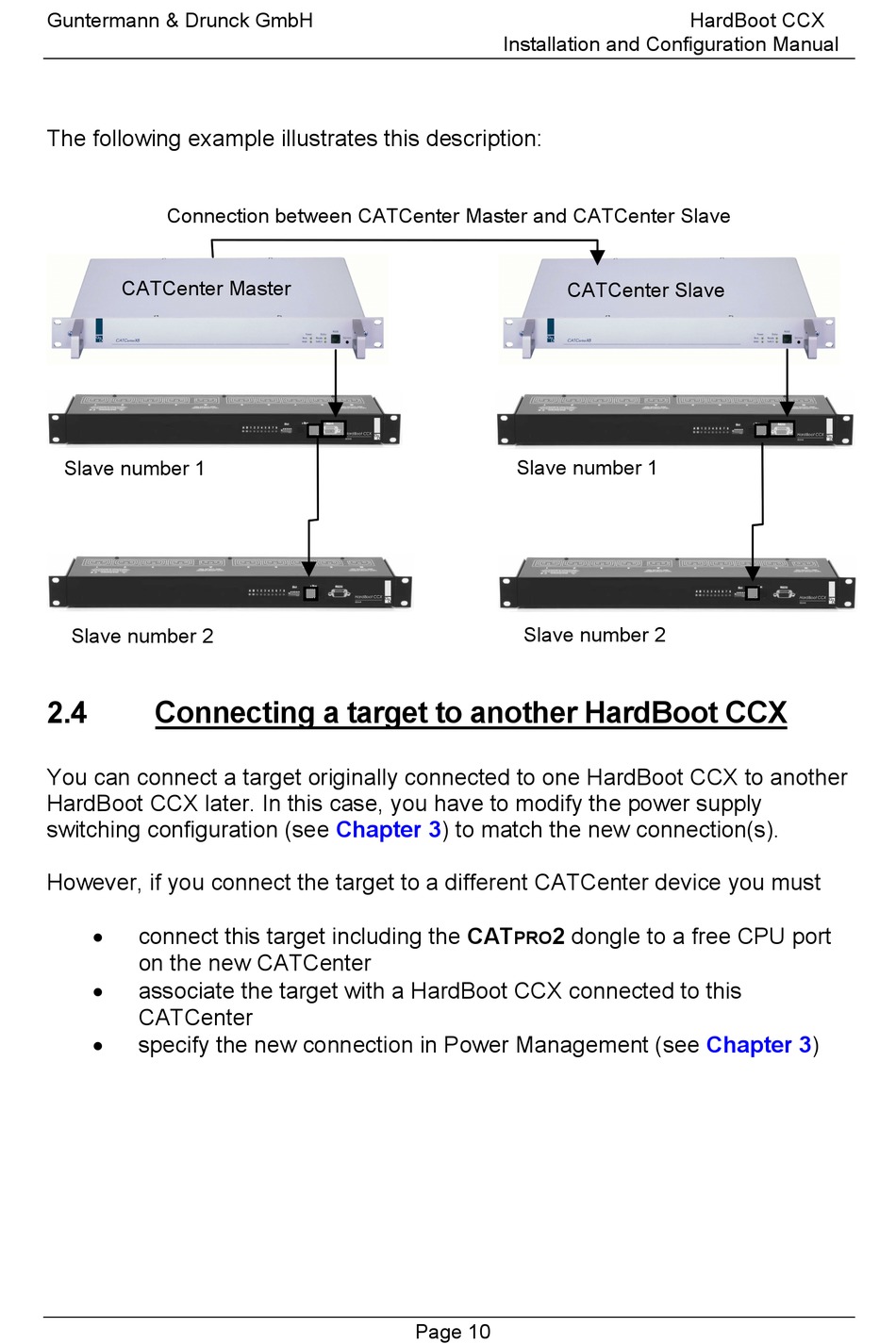

The following example illustrates this description:
Connection between CATCenter Master and CATCenter Slave
CATCenter Master
Slave number 1
Slave number 2
2.4

Connecting a target to another HardBoot CCX

You can connect a target originally connected to one HardBoot CCX to another
HardBoot CCX later. In this case, you have to modify the power supply
switching configuration (see
However, if you connect the target to a different CATCenter device you must

connect this target including the CAT
on the new CATCenter

associate the target with a HardBoot CCX connected to this
CATCenter

specify the new connection in Power Management (see
Installation and Configuration Manual
Chapter 3) to match the new connection(s).
Page 10
CATCenter Slave
Slave number 1
Slave number 2
2 dongle to a free CPU port
PRO
HardBoot CCX
Chapter 3)
