2.2

Installing HardBoot CCX

Perform the following steps to connect a HardBoot CCX to a CATCenter.

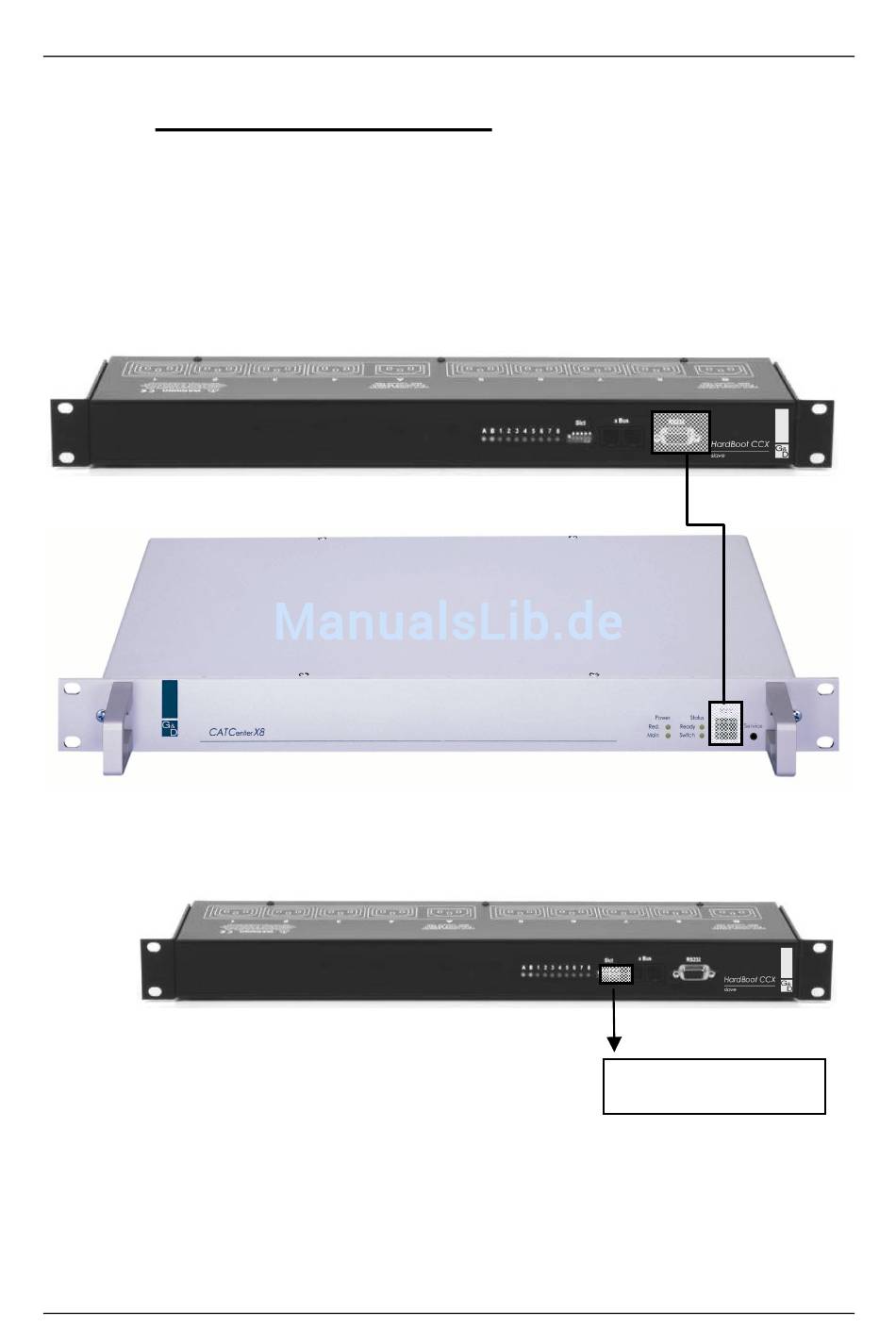

1. Plug the supplied data cable (RJ11 -> Sub-D 9) into the output port
(RS232) on the HardBoot CCX and the input port (RS232) on the
CATCenter.
2. Assign a slave number to each slave by setting the DIP-switch
marked "Slct" on the front panel of the device (see table below).
Notes:
- Always turn the device of before
changing the DIP-switch settings.
Give each slave a unique address.
-
No two devices are allowed to have the same address.
The slave number defined here is subsequently required to tell
-
the system in the CATCenter OSD on which slave the power
supply of the currently selected target is located (see
Installation and Configuration Manual
Page 6
HardBoot CCX
DIP-switch
Chapter 3).
