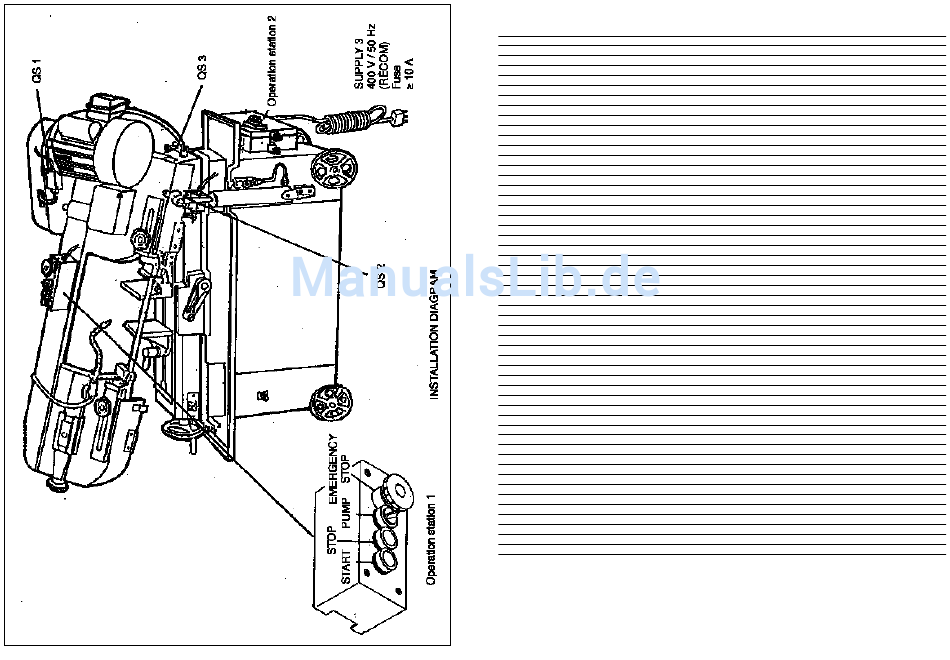

2
REF.NR. DESCRIPTION
8 Contact strip
9 Transformers
10 Mangentil switch
11 Main door power switch
20 Cylinder
29 Bottem support
34 Wheel
35 Wheel shaft
44 Filter
47 Handle wheel
50 Lead screw
51 Nut seat
52 Acme nut
53 Button
54 Retainer
55 Spring washer
67 Limit switch
73 Stop block
81 Pivot arm
87 Spring
100 Scale
103 Pump
110 hose
116 worm gear
118 ball bearing 6005 ZZ
124 Blade wheel(rear)
127 Spare saw blade
132 Adjustable bracket (rear)
133 Ball bearing 608 ZZ
134 Blade adjustable seat
136 Eccentric shaft
145 Top support
153 Brush
155 Control panel
156 Nozzle cock
162 Limit switch
163 Adjustable bracket (front)
174 Ball bearing 6203 ZZ
175 Blade wheel (FRONT)
181 Blade adjustable handle
183 V-belt
184 Worm pulley
185 Motor pulley
189 Pulley cover
192 Motor
199 Ball bearing 6003 ZZ
201 Oil seal
202 Bearing bush
203 Worm shaft
208 Limit switch stop plate
211 Limit switch stop plate
Ferm Ferm
SPARE PARTS BZ-1750
FERM.NR.
400030
400031
400033
400034
400035
400095
400036
400037
400038
400039
400040
400041
400042
400043
400049
400050
400051
400052
400053
400054
400055
400056
400058
400061
806005
400062
330746
400063
800608
400064
400065
400096
400066
400069
400071
400079
400080
806203
400081
400082
400083
400084
400085
400088
400089
806003
400090
400091
400092
400093
400094
