FEATURES
• Line input for emergency signal with contact closure
• 2 microphone/line input sockets with microphone/line switch and switchable 24 V phantom power
• Switchable chime feature in Mic/Line 1 channel
• 2 line inputs with RCA sockets and Bluetooth 4.0 interface (mono summed)
• Gain control and clip LED indicator for emergency and mic/line inputs
• Class-D amplifier with 125 W (IMA 120) or 240 W (IMA 240) output power
• Output for low impedance speakers and 70/100 V outputs with LO-Z/HI-Z switching. In low impedance
mode, the audio signal is completely isolated from the transformers for optimal frequency response
• Balanced AUX line output with Music-Mix switch, for controlling external amplifiers, active subwoofers
or music-on-hold systems
• Music mix switch on AUX out for setting whether AUX out plays the overall mix or only the selected
music source
• Separate tone control for treble and bass on the back of the device
• Four priority levels for comprehensive integration options
• Switchable auto standby mode for reduction of energy consumption
• User-friendly control panel design for intuitive operation with capacitive control panels for selecting
music source and for Bluetooth pairing
• Clearly arranged and labelled sockets and operating elements on the back for easy installation
• Universal wide-range switching power supply
• Format: Half rack width, 2 U
• Optional: Rack mounting kit (IMA RK) for installation of one or two IMA 30/60/120/240 units in a 19" rack

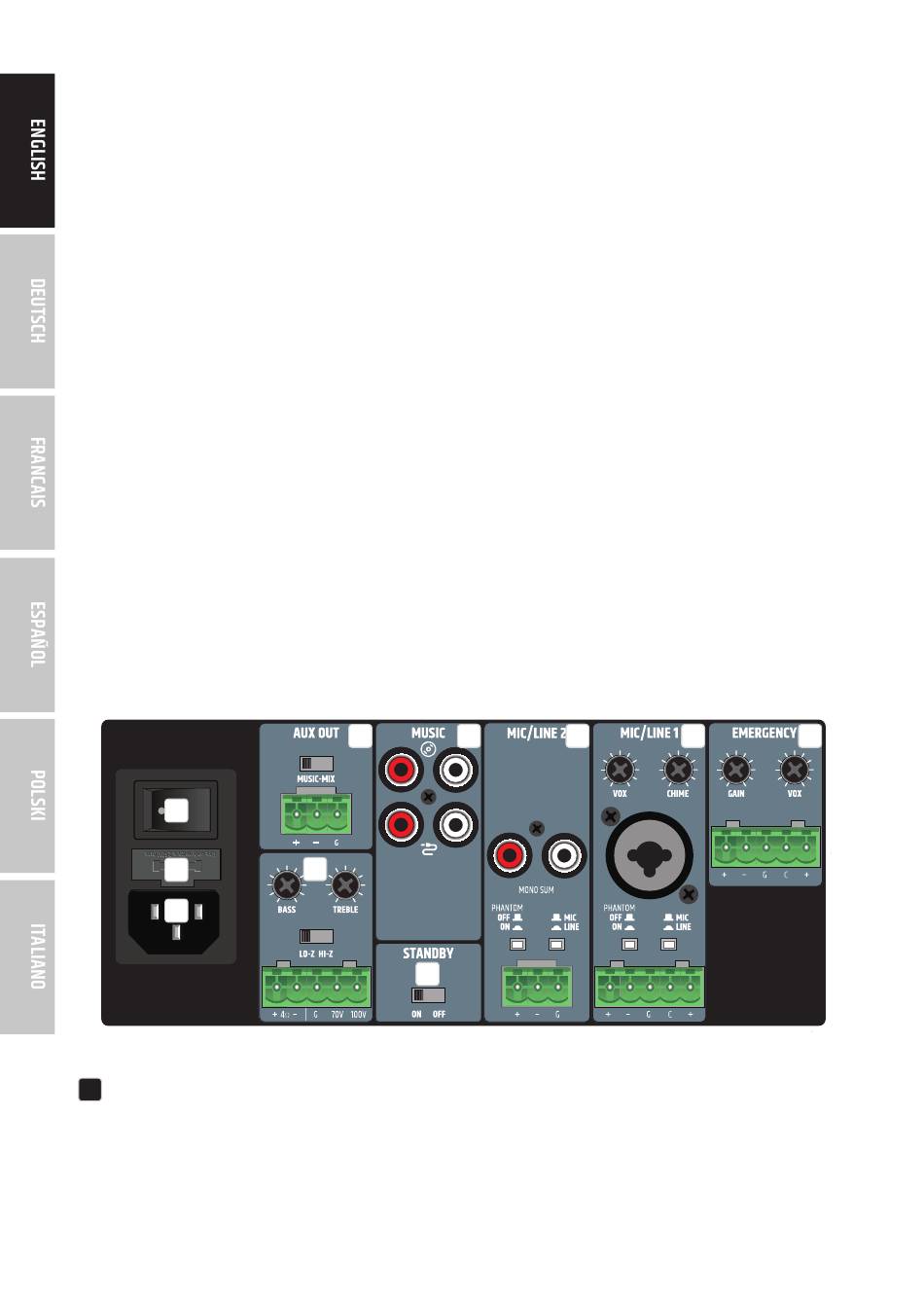

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

3
2
1
Connections, operating and display elements of the two units IMA 120 and IMA 240 are identical
POWER SOCKET
1
IEC socket for power supply to the unit (mains cable included).
10
8 7
9
10
10
6 5 4
