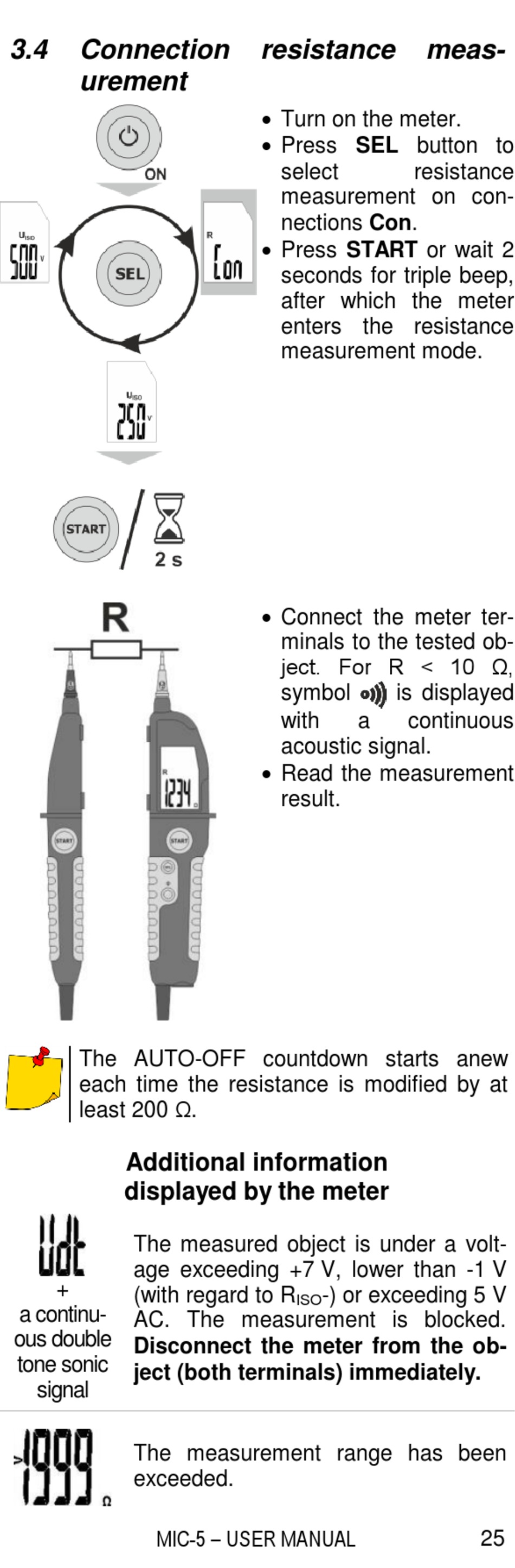

3.4 Connection
urement
The AUTO-OFF countdown starts anew
each time the resistance is modified by at
least 200 Ω.
+
a continu-
ous double
tone sonic
signal
Additional information
displayed by the meter
The measured object is under a volt-
age exceeding +7 V, lower than -1 V
(with regard to R
AC. The measurement is blocked.
Disconnect the meter from the ob-
ject (both terminals) immediately.
The measurement range has been
exceeded.
MIC-5 – USER MANUAL
resistance
 Turn on the meter.
 Press SEL button to
select
measurement on con-
nections Con.
 Press START or wait 2
seconds for triple beep,
after which the meter
enters the resistance
measurement mode.
 Connect the meter ter-
minals to the tested ob-
ject. For R < 10 Ω,
symbol
with a
acoustic signal.
 Read the measurement
result.
-) or exceeding 5 V
ISO
meas-
resistance
is displayed
continuous
25
