SECTION 7
Item No Qty Part Number
1 1
2 1
3 1
4 1
5 1
6 1
7 2
8 2
9 2
10 1
11 1
1
12 1
NOTICE
Description
952182 Spout –Remote Filler
See Below Gauge –200PSI
636702 Switch – Toggle DPDT 3pos 15A 125V
634518 Switch – Toggle DPDT 2pos 15A
2062018 POT 10K 2W
954619 Overlay 200I
951061 Meter – LED 5VDC
672508 Switch – Toggle 2PST 2pos 15A
952556 Fuse – 30A 600V
639533 Bushing –Snap .88ID X 1.09 MH X .45L
33053 Strain Relief
951188 Locknut – Conduit 2 in. NPT
13733935 Panel Recpt 2-1/0
P/N 598481
ESP-200 Plasmarc Cutting System
Replacement Parts

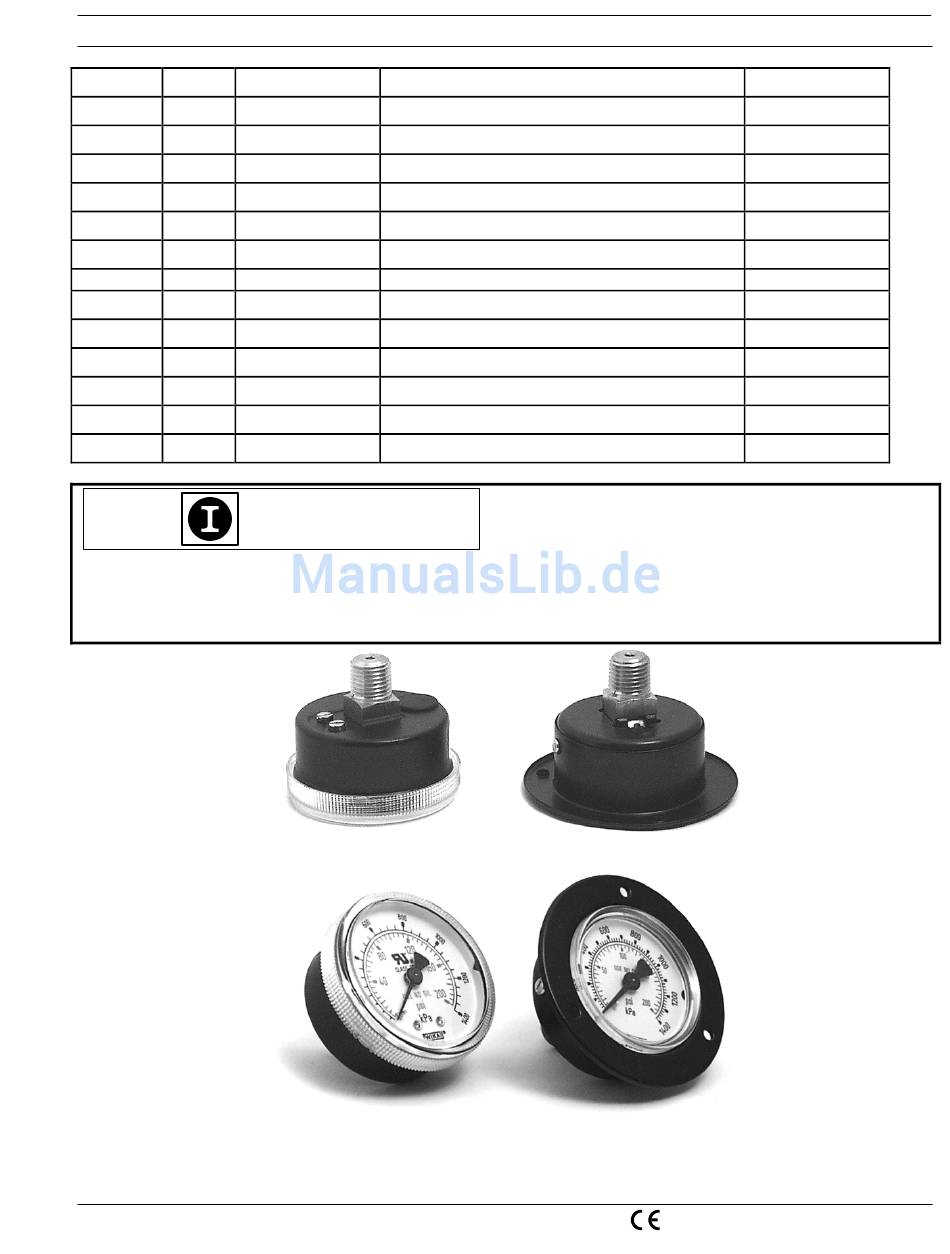

Refer to Console Serial Number to determine
which gauge to order. Gauges require
different hole sizes in front panel and are not
interchangeable.
•
Console with serial number in PxxJ348xx
format require gauge P/N 0558004488
•
All others use P/N 598481
P/N 0558004488
Circuit Symbol
S4
S2
R1
AM1, VM1
S1, S3
F1, F2
