Observe regional and country-specific safety and testing regulations
The relevant regional, country-specific safety and testing regulations apply
to all work on RATIONAL units. These regulations may vary by region and
are country-specific and are therefore not listed separately in this document.
The technician is responsible for complying with these regulations.

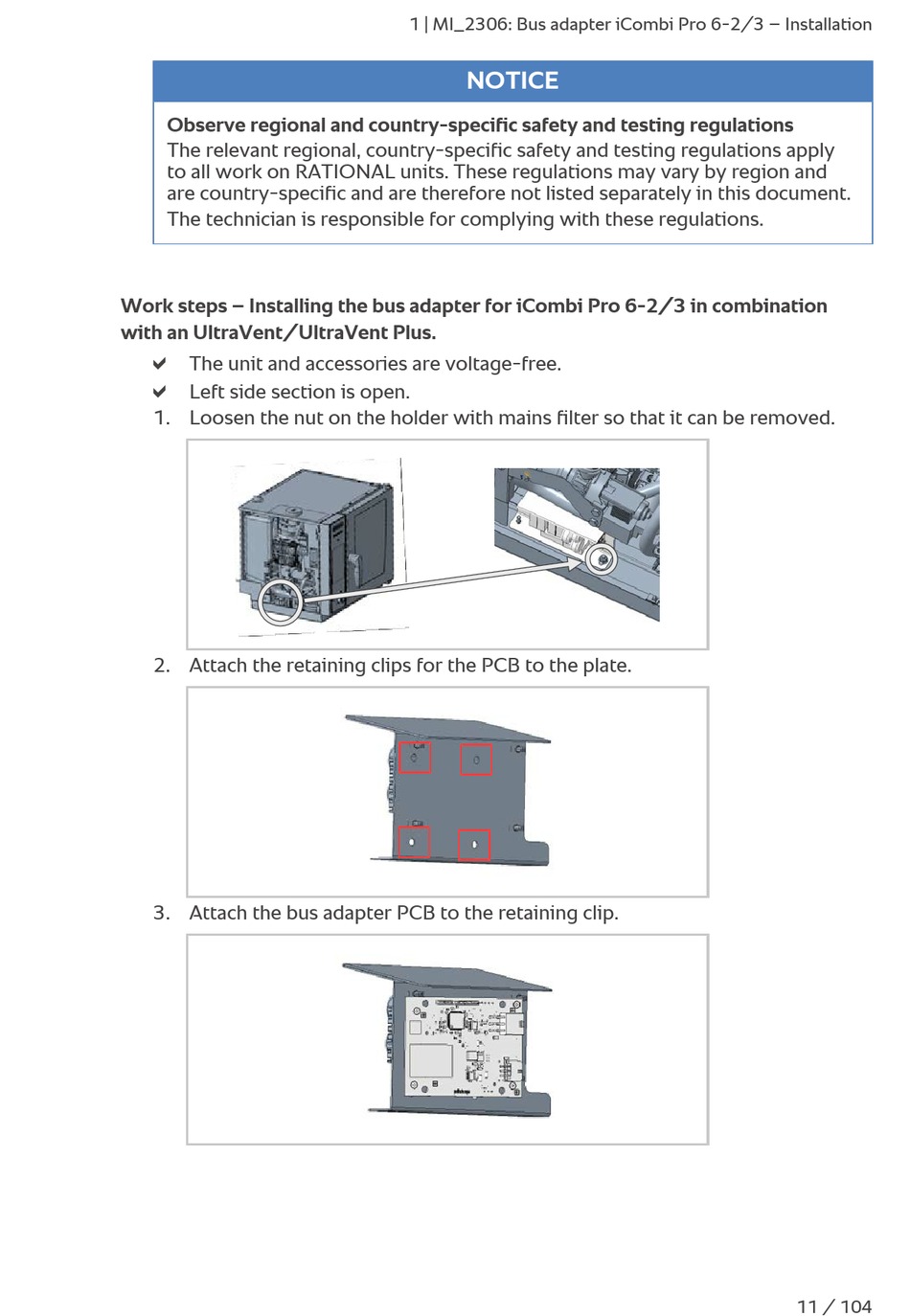

Work steps – Installing the bus adapter for iCombi Pro 6-2/3 in combination
with an UltraVent/UltraVent Plus.
a
The unit and accessories are voltage-free.
a
Left side section is open.
1. Loosen the nut on the holder with mains filter so that it can be removed.
2. Attach the retaining clips for the PCB to the plate.
3. Attach the bus adapter PCB to the retaining clip.
1 | MI_2306: Bus adapter iCombi Pro 6-2/3 – Installation
NOTICE
11 / 104
