Wall
>50cm

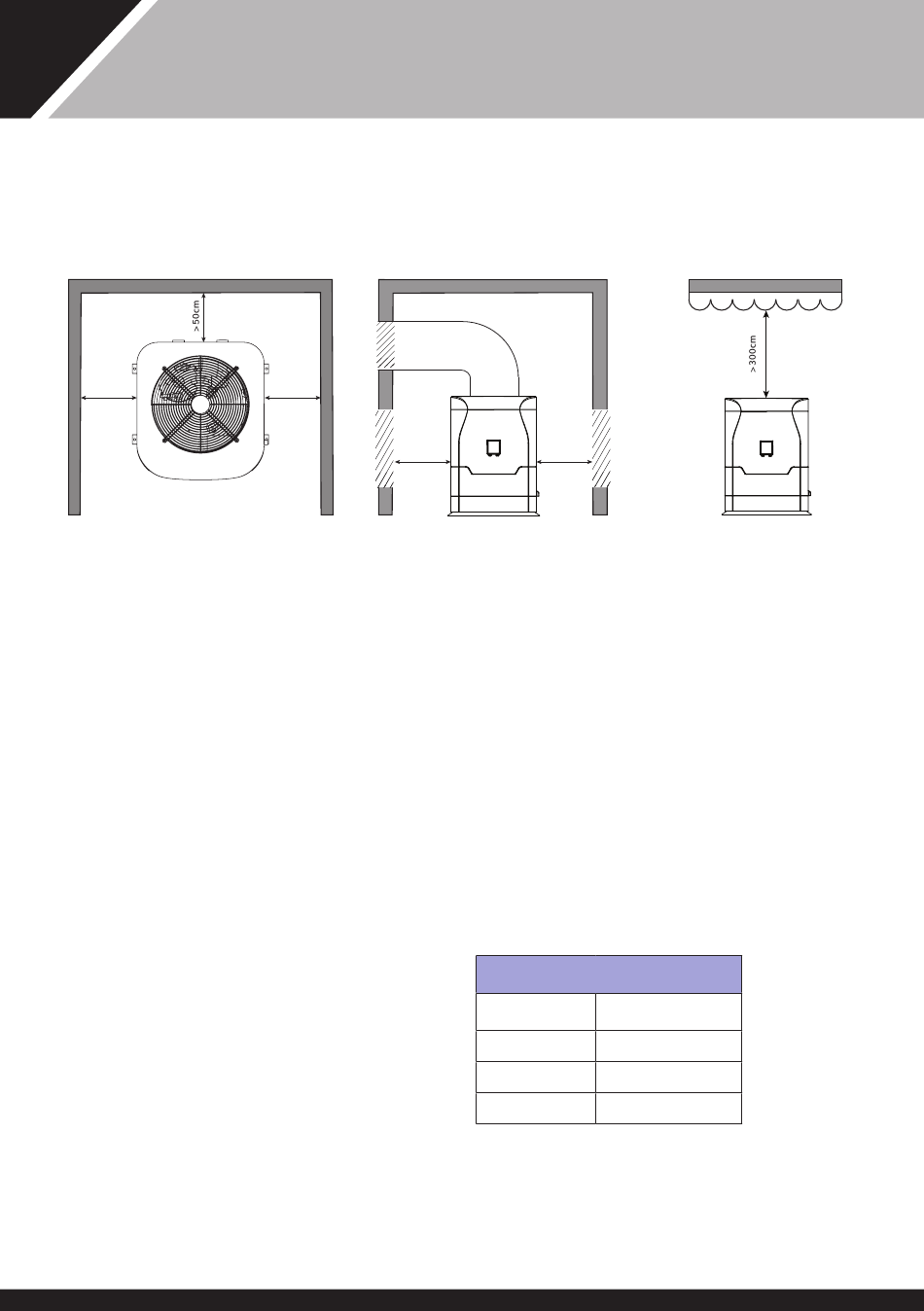

Required free areas to provide air flow to and from heat
pumps when installed in an enclosed area or where
required to pass air through a wall etc. Ensure holes
through walls are sealed to avoid the outlet air entering
cavities and to avoid the possibility of recirculation.
Free area is the available area through which air can
pass through a grille or louvres.
1005759 ISSUE 5
Wall
>50cm
>50cm
Typical inside or plant room
(Not recommended for long duct
The plant room must not
be used as an occupied
>50cm
installation.
runs).
space.
Minimum free areas m
Model Discharge area
VPT 12
0.188
VPT 16
0.188
VPT 22
0.220
Typical outside installation.
2
