External Cover for Painting

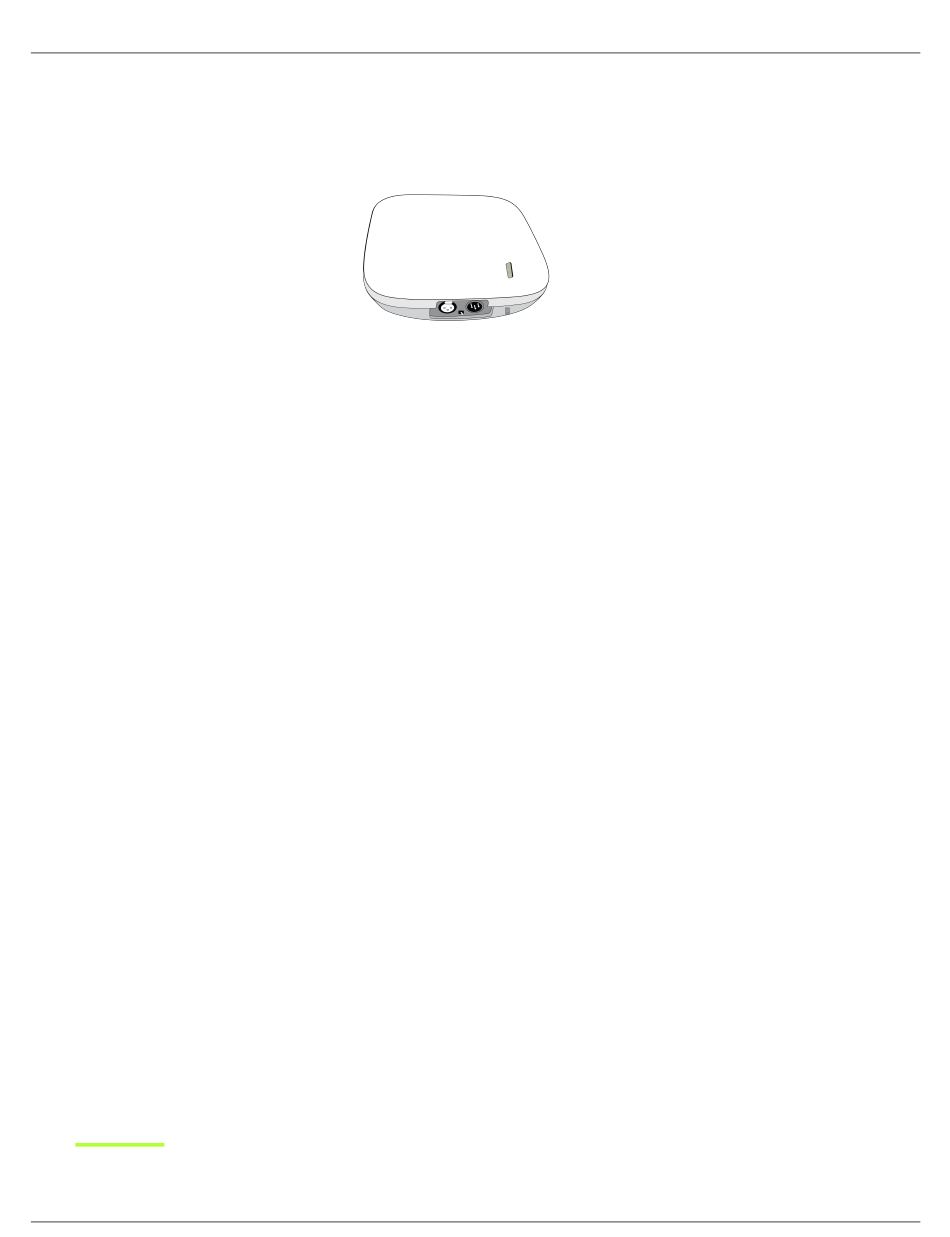

The access point is supplied with an external cover that can be painted to match the decor around the installation. Snap onto
the front plate of the device after it has been painted.
Mounting Options
Wall or Ceiling:
1.
Mark and drill pilot holes using the mounting bracket as a template.
2.
Secure the mounting bracket to the surface using #8 (4 mm) screws (not included).
3.
Connect the Ethernet cable to the access point using the cable route path and mount the access point to the bracket.
Electrical Box:
1.
Pull the Ethernet cable through the electrical box.
2.
Mount the bracket to the electrical box using #6-32 (3.5/16 mm) screws (not included).
3.
Connect the Ethernet cable to the access point using the cable route path and mount the access point to the bracket.
Drywall:
1.
Mark and drill pilot holes using the mounting bracket as a template.
2.
Install drywall anchors.
3.
Mount the bracket to the drywall anchors using #8 (4 mm) screws (not included).
4.
Connect the Ethernet cable to the access point using the cable route path and mount the access point to the bracket.
Wood Paneling:
1.
Mark and drill 3/32" (2 mm) holes using the mounting bracket as a template.
2.
Mount the bracket to the wall using #8 (4 mm) screws (not included).
3.
Connect the Ethernet cable to the access point using the cable route path and mount the access point to the bracket.
Ceiling Tile:
Important: Use large fender washers or a large metal plate on the back side of the ceiling tile to support the weight of the ac
cess point.
1.
Mark and drill pilot holes for the screws and cable entrance using the mounting bracket as a template.
2.
Mount the bracket to the ceiling using #6 (3.5 mm) screws (not included).
3.
Pull the cable through the hole to connect it to the access point, and mount the access point to the bracket.
Tripod:
Use an adapter to bolt the mounting bracket to a microphone stand or tripod.
