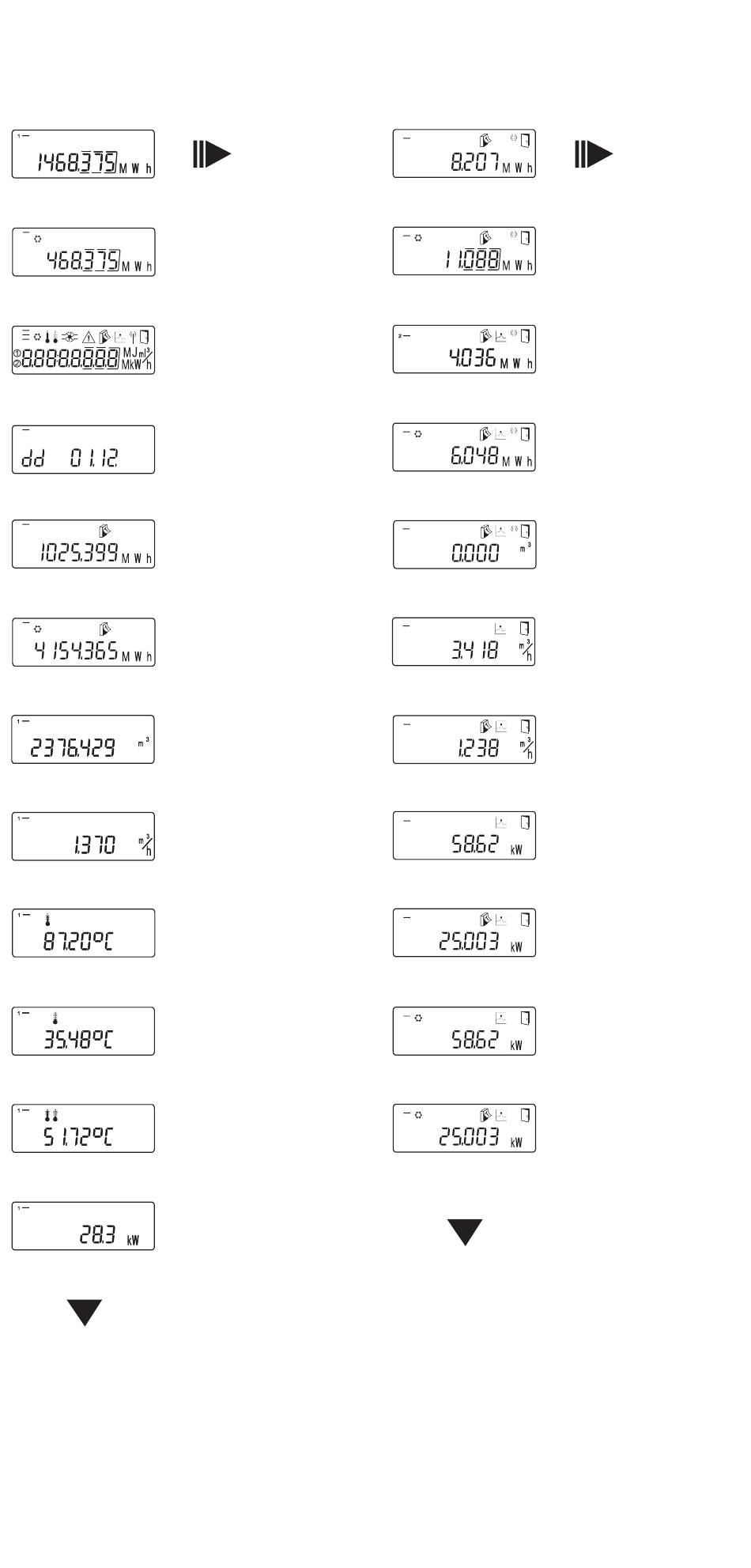

Simple example of the display menu
Level 1
Heat energy
(Main display)
1
1
Cooling energy
1
1
2
2
3
3
Segment test
1
1
Date last due date
1
1
Heat energy at last due date
1
1
Cooling energy at last due date
Volume
Flow rate
Supply temperature
Return temperature
Temperature difference
Current power
S
S
Depending on your meter's model its displays can differ in number and
order from those shown here.
After choosing a display position different to the main display and no
operation of the push button within approx. 2 minutes, the meter returns
automatically to the main display.
26
H
H
Level 2
2
2
Heat energy difference from
last due date to now
2
2
Cooling energy difference from
last due date to now
Heat energy difference from
1. of this month to now
2
2
Cooling energy difference from
1. of this month to now
2
2
Volume difference from
1. of this month to now
2
2
Maximum flow rate
2
2
Maximum monthly flow rate
2
2
Maximum heating power, hourly average
value since commissioning
2
2
Maximum monthly heating power
2
2
Maximum cooling power, hourly average
value since commissioning
2
2
Maximum monthly cooling power
S
S
H
H
