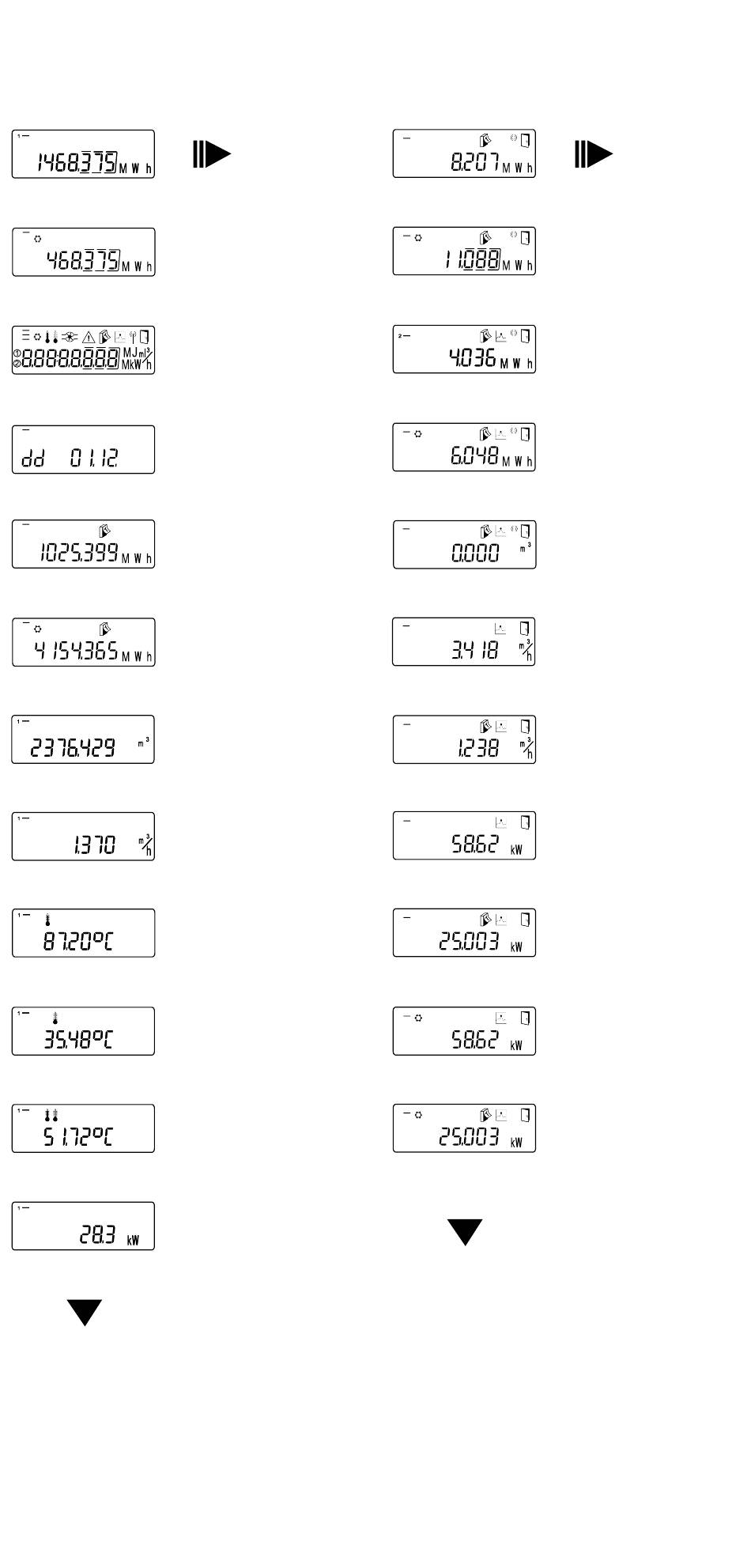

Simple example of the display menu

Level 1
Heat energy
(Main display)
1
Cooling energy
1
2
3
Segment test
1
Date last due date
1
Heat energy at last due date
1
Cooling energy at last due date
Volume
Flow rate
Supply temperature
Return temperature
Temperature dif-
ference
Current power
S
Depending on your meter's model its displays can differ in number and order from
those shown here.
Recall of software version number
The software version of the firmware can be accessed from the display level
3 (display level "firmware version").
A detailed display overview including sub-menus is available upon request.
22
H
Level 2
2
Heat energy difference from
last due date to now
2
Cooling energy difference from
last due date to now
Heat energy difference from
1. of this month to now
2
Cooling energy difference from
1. of this month to now
2
Volume difference from 1. of
this month to now
2
Maximum flow rate
2
Maximum monthly flow rate
2
Maximum heating power, average value
since commissioning
2
Maximum monthly heating power
2
Maximum cooling power, average
value since commissioning
2
Maximum monthly cooling power
S
