Startup and Installation Instructions for the inLab PC system inEos

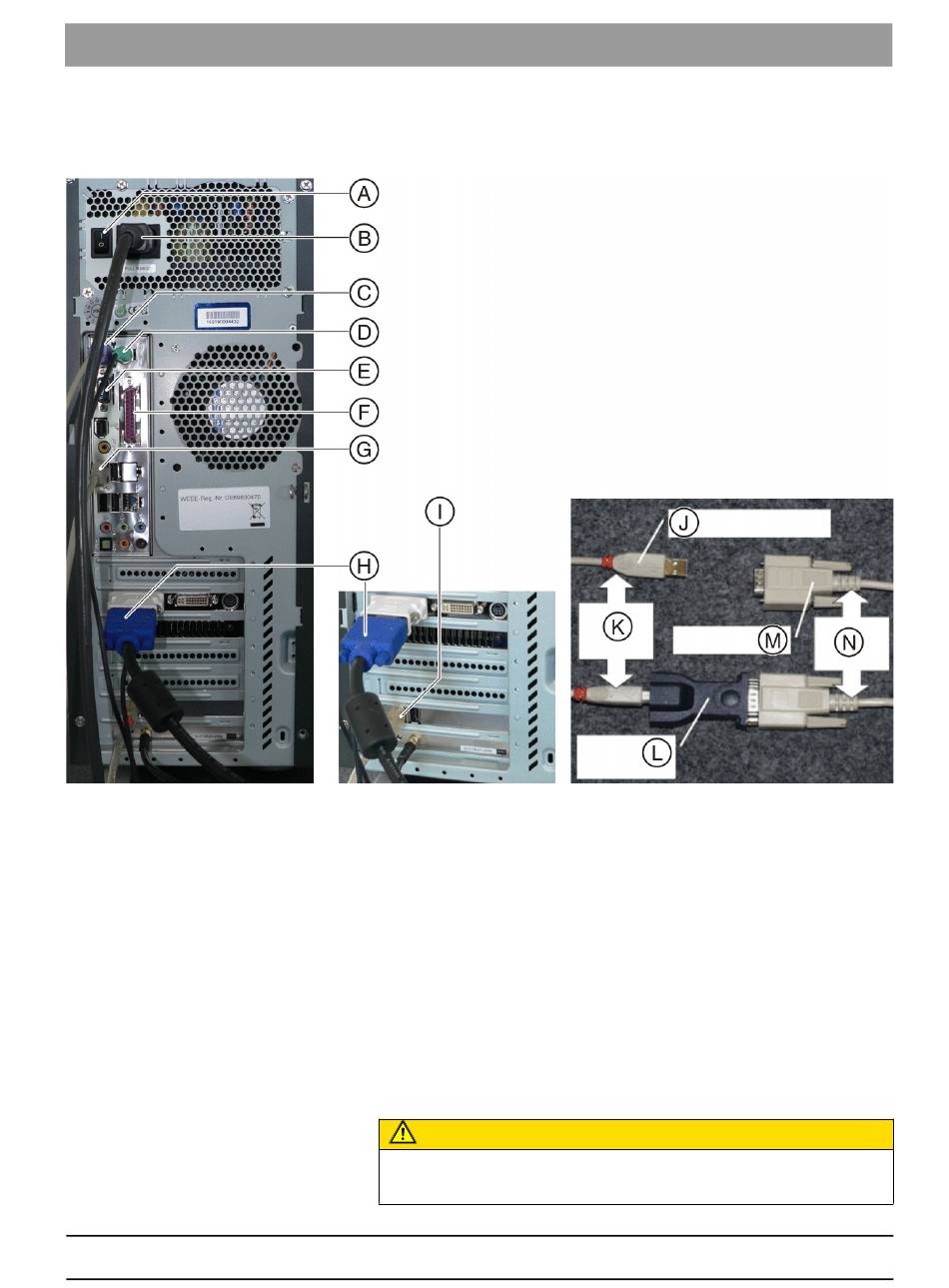

A Power switch, if applicable
B Power supply
C Keyboard
D Mouse
E COM 1 for milling unit if applicable
F LPT 1 for softguard dongle if required
G USB on COM 3
60 35 302 D 3446
D 3446.031.01.05.02 06.2009
1 Requirements for initial startup of the inEos with the inLab PC system
1.2

Making connections

H VGA monitor
I FireWire 1394
J USB to COM 3 on PC
K USB cable
L USB - RS 232 converter
M RS 232 to inEos
N RS 232 cable
1. Connect the keyboard and the mouse to the PC.
2. Connect the monitor to the PC with the VGA/DVI cable.
3. Turn on the monitor and PC power supplies.
CAUTION
The FireWire port located on the front panel of the PC does not function
Do not use the FireWire port on the front panel of the PC.
Making connections
