TORQUE AND DIRECTION OF ROTATION DISPLAY

Torque
If a clockwise torque is introduced, an output signal from 0...+10 V or 10...15 kHz is
present.
Direction of rotation
The sign of the display indicates the direction of rotation. On HBM amplifiers, the output
voltage and reading is positive when the measurement shaft is rotated clockwise facing
the measuring side.

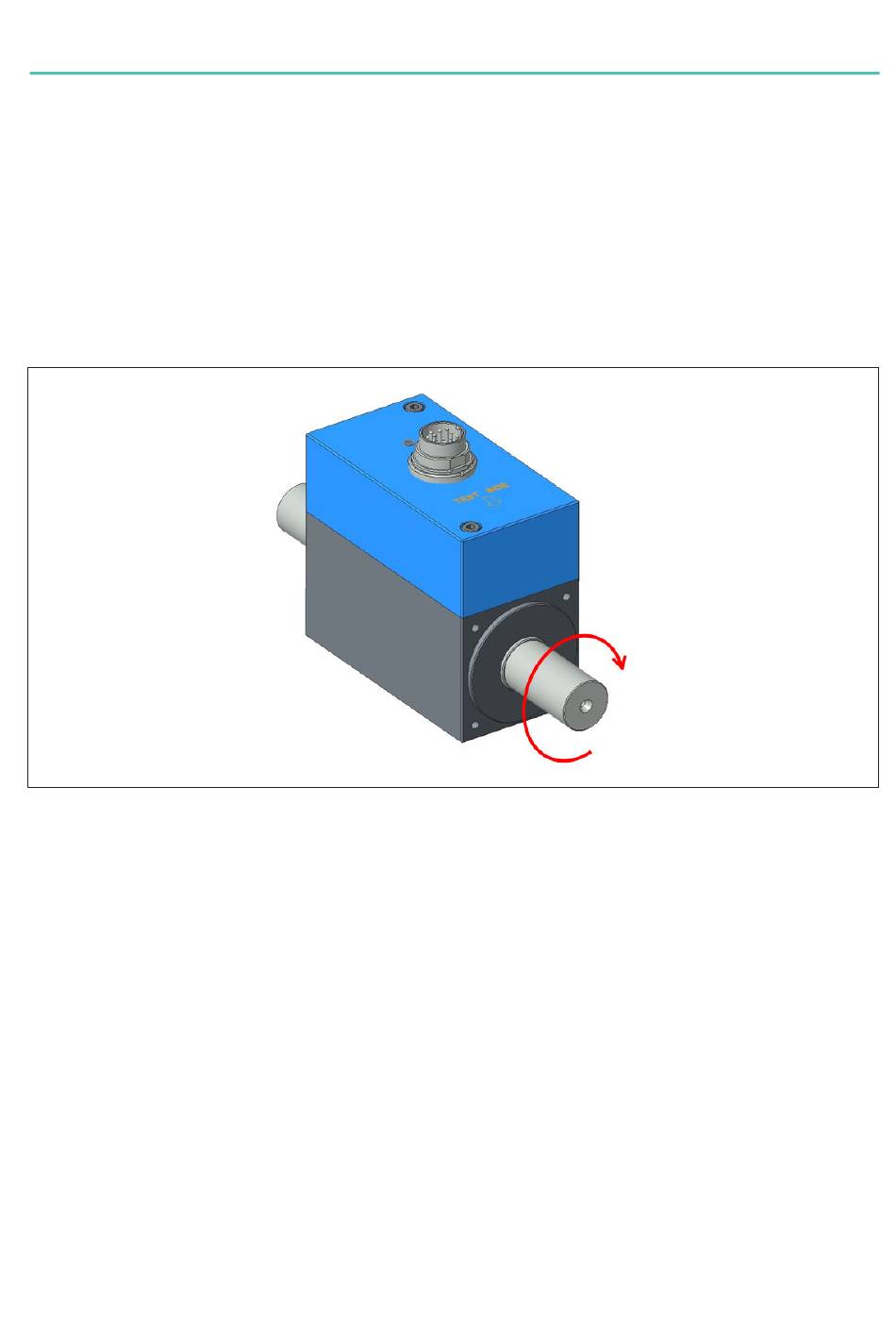

Fig. 7.1 Direction of rotation for positive reading
