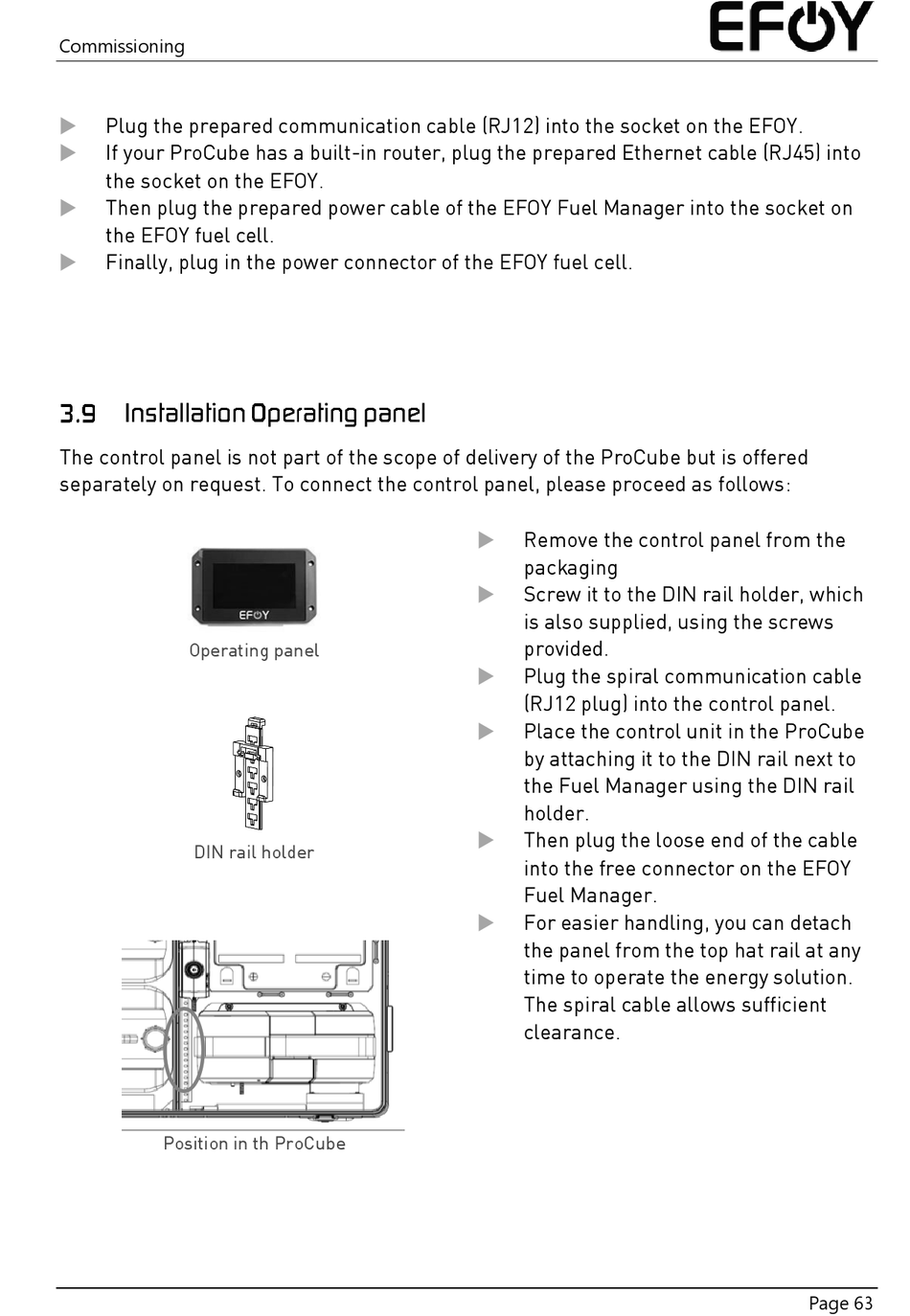

Commissioning
Plug the prepared communication cable (RJ12) into the socket on the EFOY.
If your ProCube has a built-in router, plug the prepared Ethernet cable (RJ45) into
the socket on the EFOY.
Then plug the prepared power cable of the EFOY Fuel Manager into the socket on
the EFOY fuel cell.
Finally, plug in the power connector of the EFOY fuel cell.
The control panel is not part of the scope of delivery of the ProCube but is offered
separately on request. To connect the control panel, please proceed as follows:
Operating panel
DIN rail holder
Position in th ProCube
Remove the control panel from the
packaging
Screw it to the DIN rail holder, which
is also supplied, using the screws
provided.
Plug the spiral communication cable
(RJ12 plug) into the control panel.
Place the control unit in the ProCube
by attaching it to the DIN rail next to
the Fuel Manager using the DIN rail
holder.
Then plug the loose end of the cable
into the free connector on the EFOY
Fuel Manager.
For easier handling, you can detach
the panel from the top hat rail at any
time to operate the energy solution.
The spiral cable allows sufficient
clearance.
Page 63
