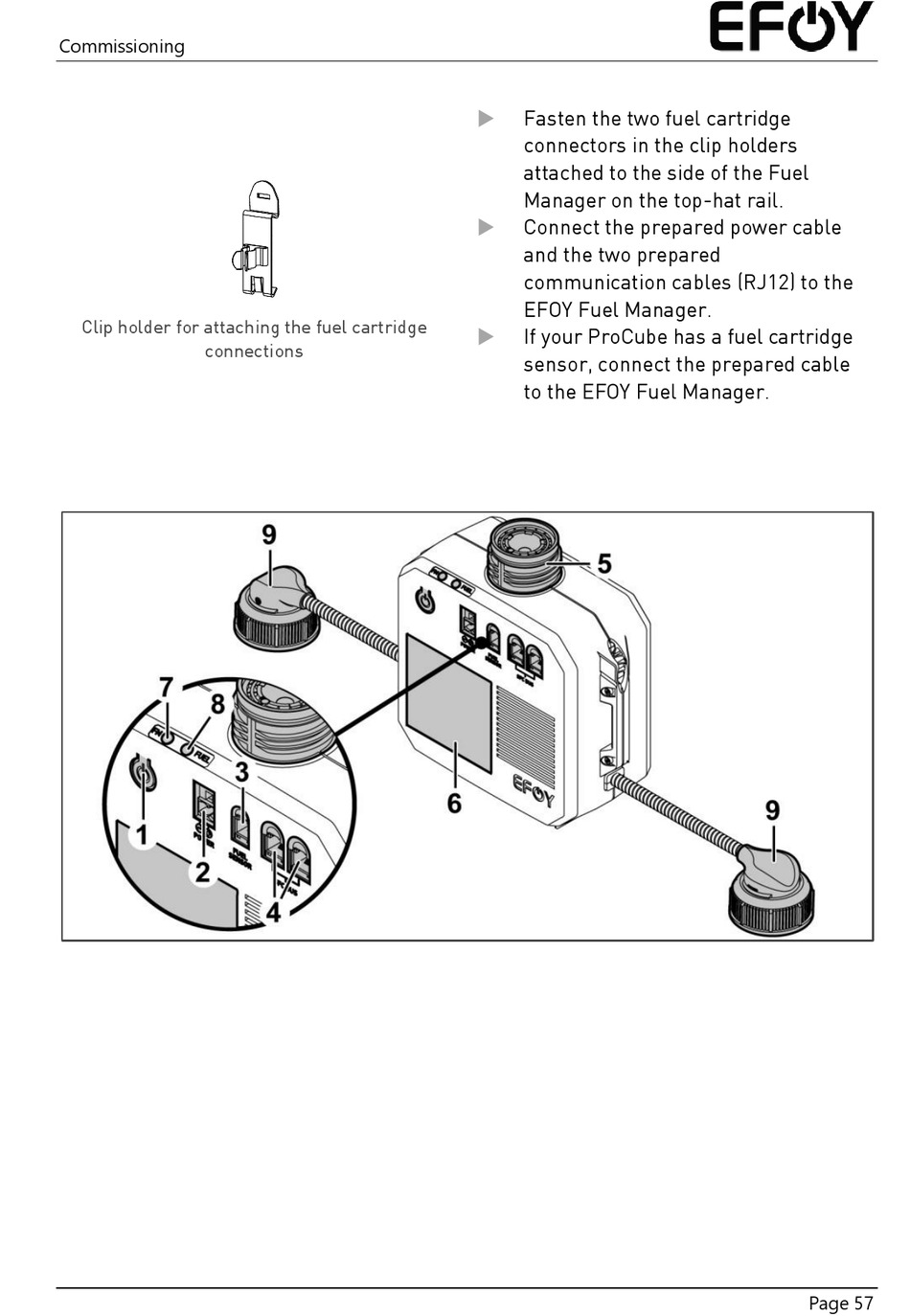

Commissioning
Clip holder for attaching the fuel cartridge
connections
Fasten the two fuel cartridge
connectors in the clip holders
attached to the side of the Fuel
Manager on the top-hat rail.
Connect the prepared power cable
and the two prepared
communication cables (RJ12) to the
EFOY Fuel Manager.
If your ProCube has a fuel cartridge
sensor, connect the prepared cable
to the EFOY Fuel Manager.
Page 57
