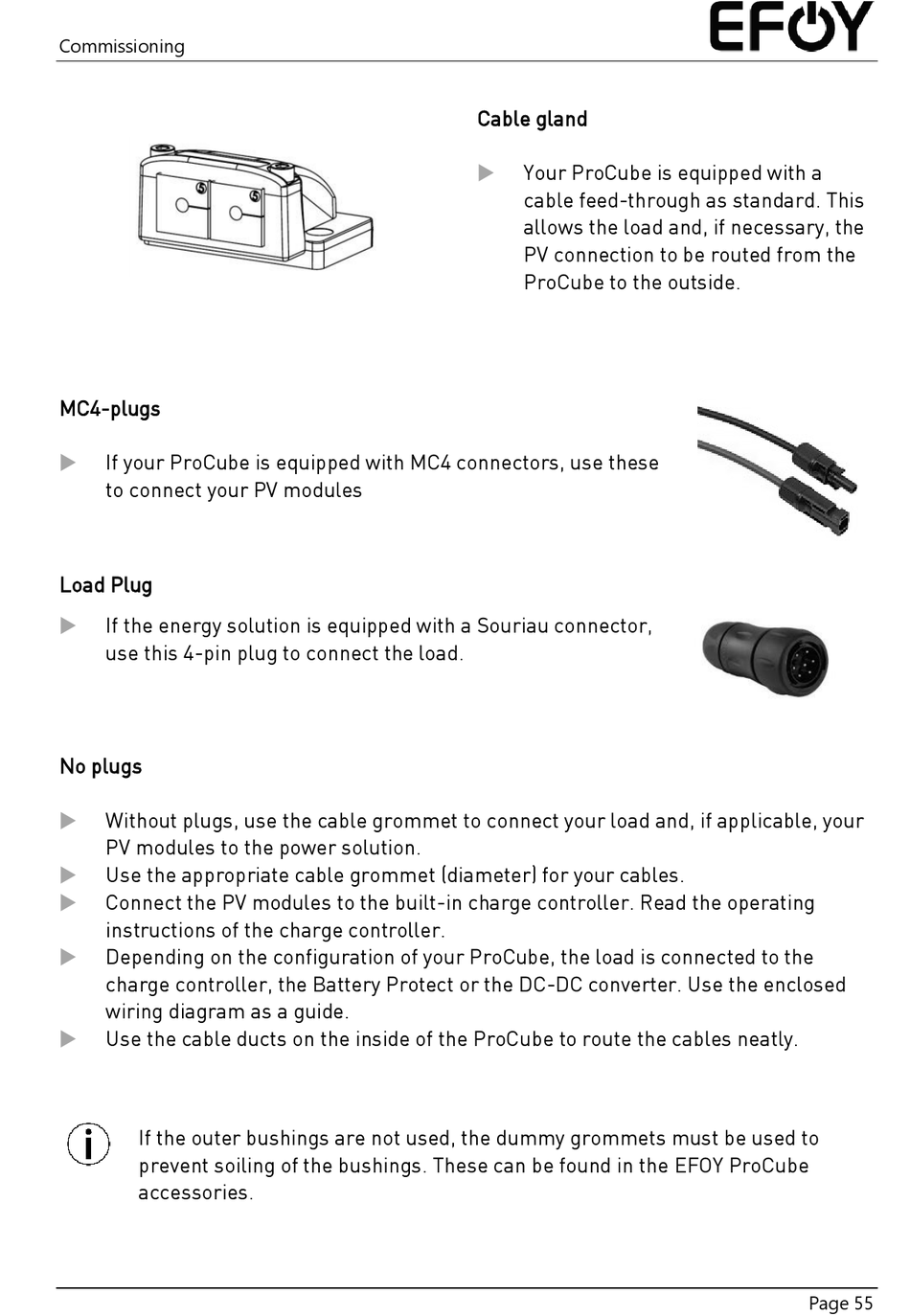

Commissioning
MC4-plugs
If your ProCube is equipped with MC4 connectors, use these
to connect your PV modules
Load Plug
If the energy solution is equipped with a Souriau connector,
use this 4-pin plug to connect the load.
No plugs
Without plugs, use the cable grommet to connect your load and, if applicable, your
PV modules to the power solution.
Use the appropriate cable grommet (diameter) for your cables.
Connect the PV modules to the built-in charge controller. Read the operating
instructions of the charge controller.
Depending on the configuration of your ProCube, the load is connected to the
charge controller, the Battery Protect or the DC-DC converter. Use the enclosed
wiring diagram as a guide.
Use the cable ducts on the inside of the ProCube to route the cables neatly.
If the outer bushings are not used, the dummy grommets must be used to
prevent soiling of the bushings. These can be found in the EFOY ProCube
accessories.
Cable gland
Your ProCube is equipped with a
cable feed-through as standard. This
allows the load and, if necessary, the
PV connection to be routed from the
ProCube to the outside.
Page 55
