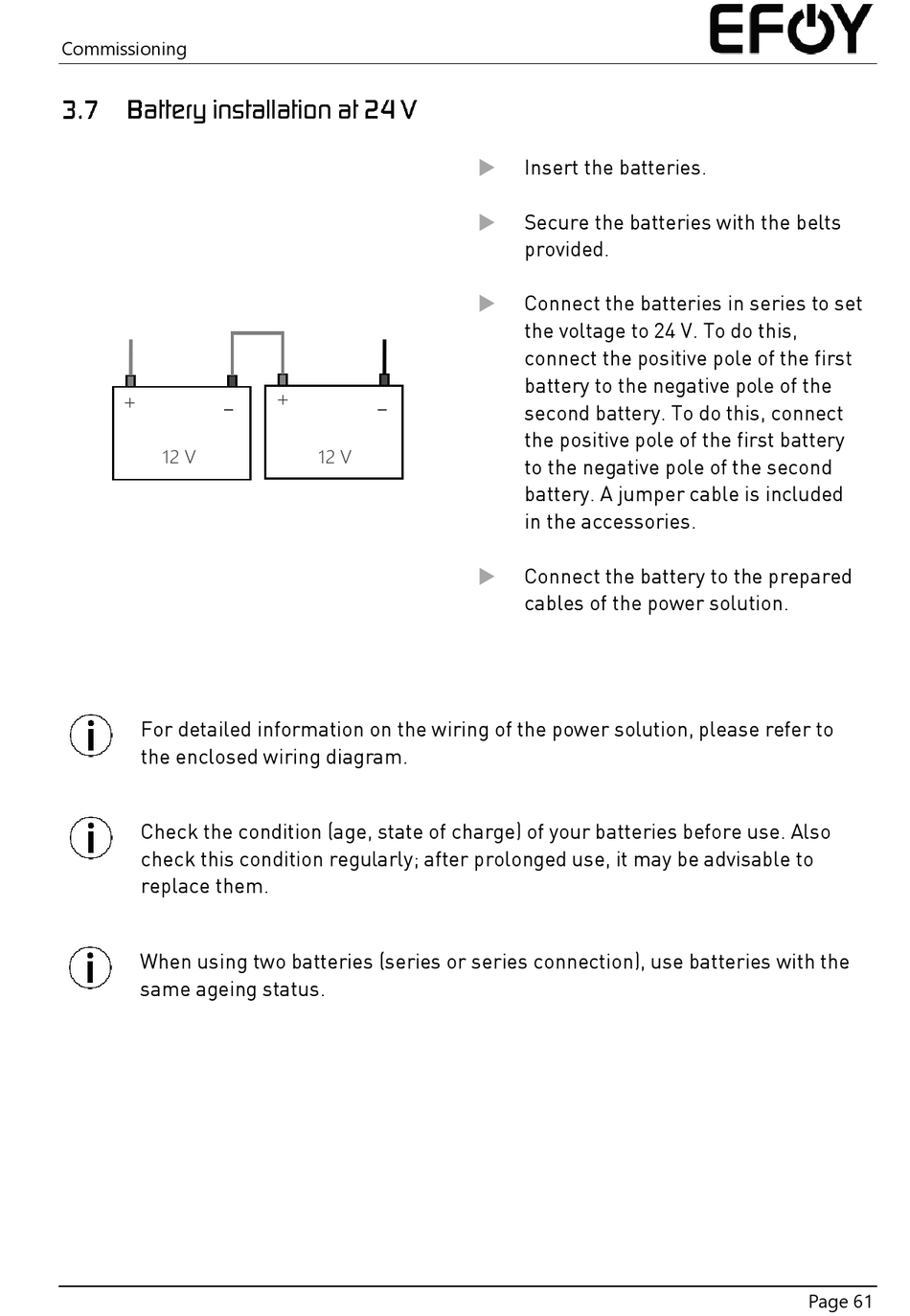

Commissioning
+
-
12 V
For detailed information on the wiring of the power solution, please refer to
the enclosed wiring diagram.
Check the condition (age, state of charge) of your batteries before use. Also
check this condition regularly; after prolonged use, it may be advisable to
replace them.
When using two batteries (series or series connection), use batteries with the
same ageing status.
+
-
12 V
Insert the batteries.
Secure the batteries with the belts
provided.
Connect the batteries in series to set
the voltage to 24 V. To do this,
connect the positive pole of the first
battery to the negative pole of the
second battery. To do this, connect
the positive pole of the first battery
to the negative pole of the second
battery. A jumper cable is included
in the accessories.
Connect the battery to the prepared
cables of the power solution.
Page 61
