8

Changing impact body

This tester has a very unique feature, which impact device can convert between D and DL simply by
changing impact body. This two-in-one probe is equivalent to two individual probes. With this optional
accessory, you can take measurement at very narrow surface such as slot bottom, gear tooth that probe
D cannot match. Please refer to the following steps to change impact body. Unscrew the support ring
from the tester and let the impact body D out. Insert the impact body DL into probe and screw the guide
tube onto the probe.
Note: The block D supplied with the new tester indicates the standard HLD value instead
of LDL value, when measuring on standard block D with DL probe, the reading is LDL
value, which is different from the HLD value marked on the block. If you need standard
LDL value, please contact with the manufacturer.
9

Take a measurement

9.1

Loading spring

9.1.1

Hold the main body (the tester) with left hand while right hand is holding the loading tube.

9.1.2

Push the loading tube with a little force against spring force toward tester until to lock the impact

body.

9.1.3

Loose the force and let the loading tube return to the original position.

Manual

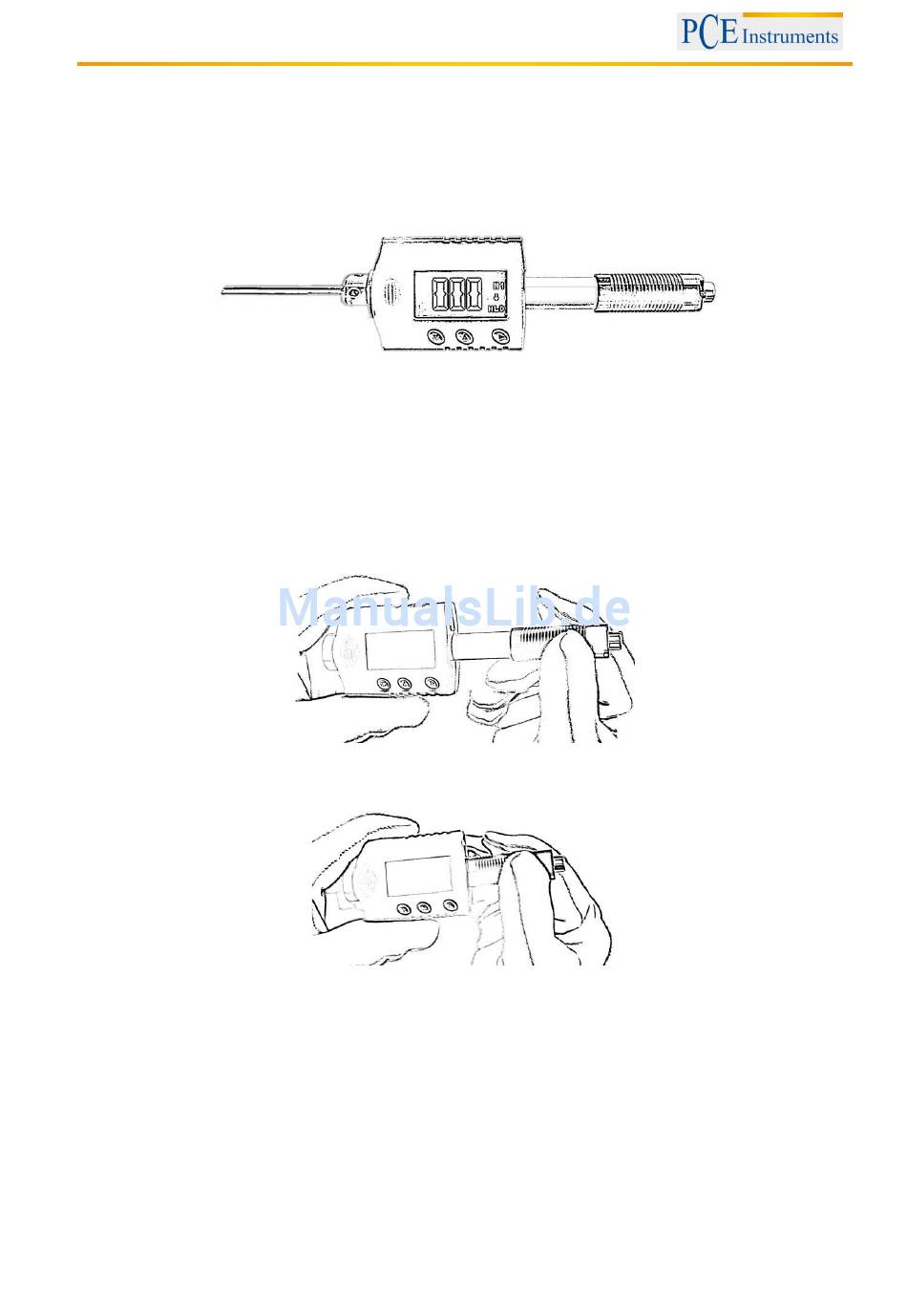

Tester equipped with DL impact device
18
