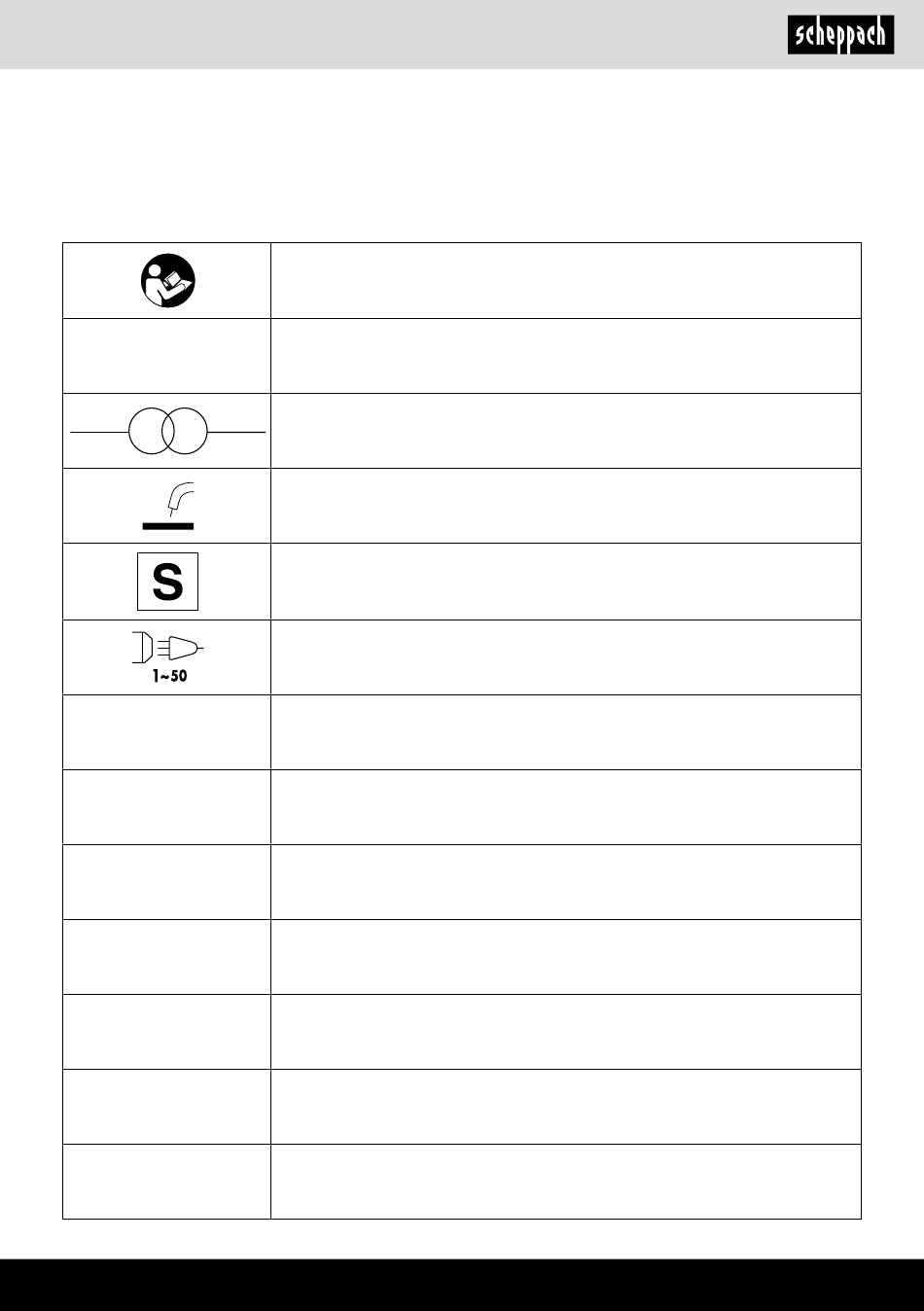

Explanation of the symbols on the device
Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the
accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot
replace proper accident prevention measures.
EN 60974-1
1~ 1~
U
0
U
1
X
l
2
U
2
l
max
l
eff
Read the operating and safety instructions before start-up and follow them!
European standard for welding machines for manual arc welding with limited duty
cycle.
Single-phase transformer
Symbol for self-shielding cored-wire welding
Suitable for welding under increased electrical risk
Mains input; Number of phases as well as alternating current symbol and rated
value of the frequency
Off-load voltage
Mains voltage
Duty cycle
Welding current
Welding voltage [V]
highest rated of mains current
Effective value of the largest mains current [A]
