Status LEDs

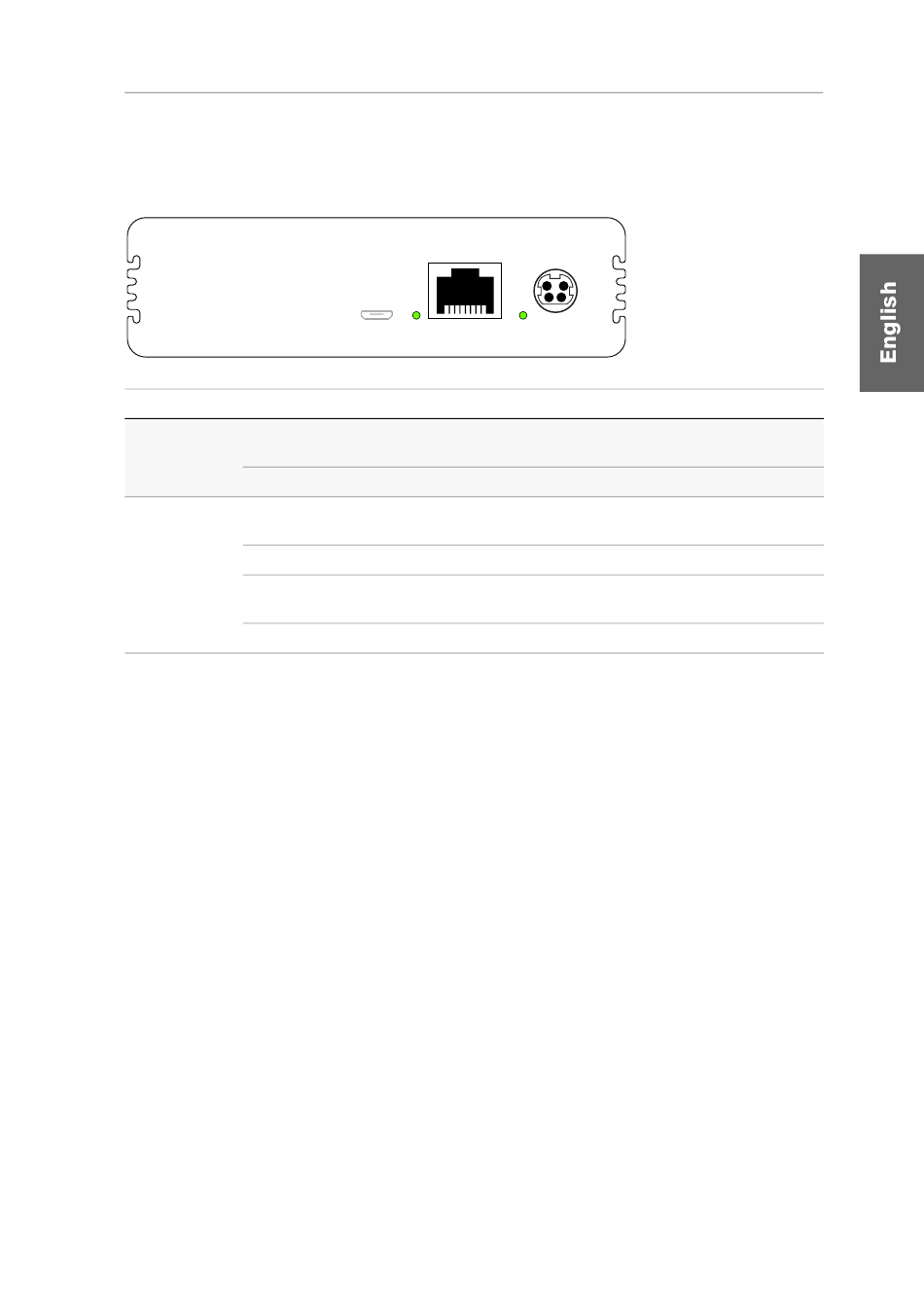

The LEDs on the back panel of the matrix switch let you control the operational sta-
tus of the device at any time.
Area Color
Network green
yellow
Power green
yellow
blue
Service Service Network
Status Meaning
on The connection to the network has been
successfully established.
on A connection could not be established.
on The matrix switch is supplied with voltage and the device
software has been started successfully.
on The matrix switch is supplied with voltage.
on On as soon as the LED has been activated via
web application.
off The matrix switch is not supplied with voltage.
12VDC
Power
G&D ControlCenter-IP-XS · 21
