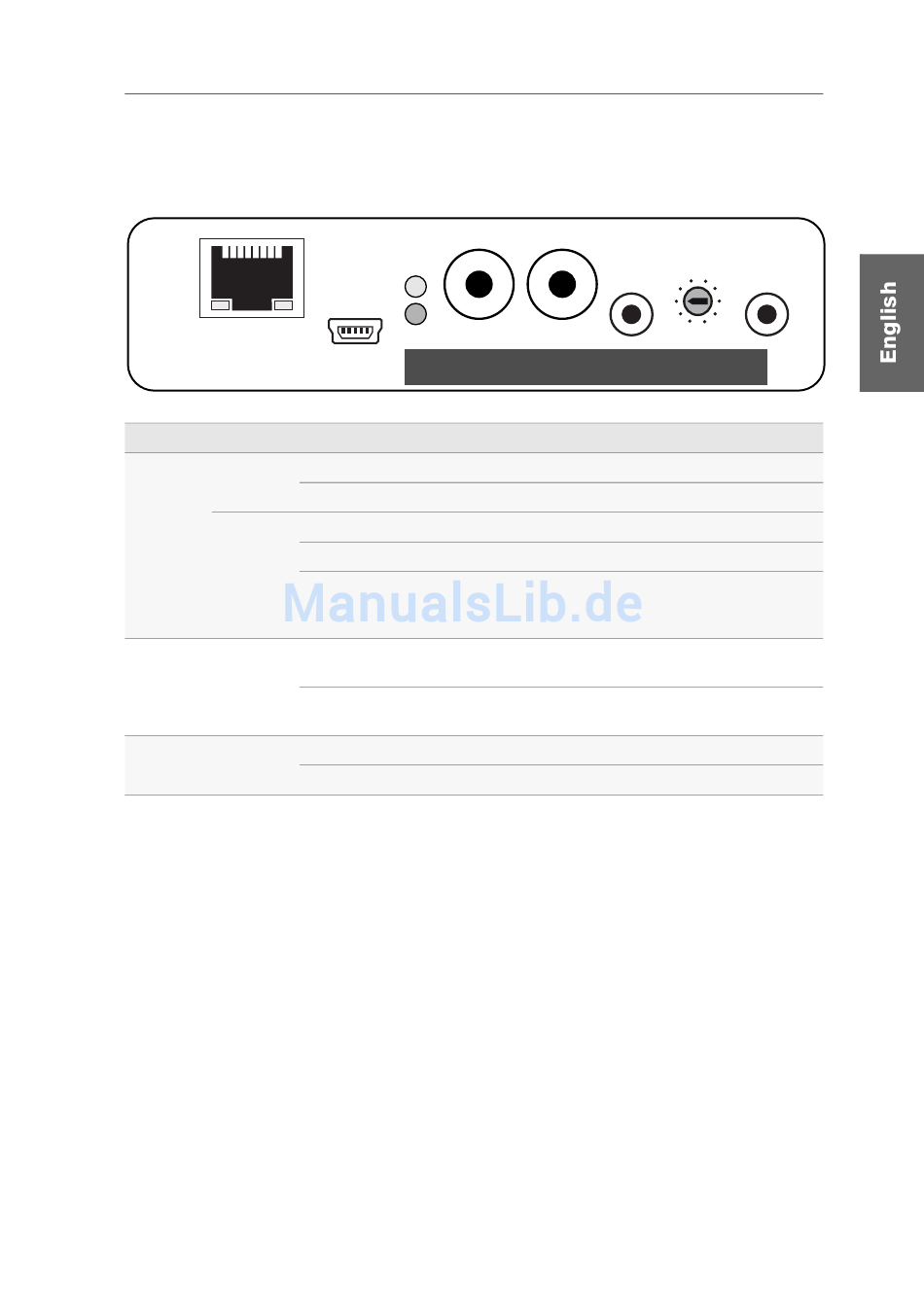

Status displays

The LEDs on the front panel of the signal extender enable you to control the opera-
tional status at any time.
Trans.
LED Colour
Trans. Yellow
Green
Audio Yellow
Power Green
Digital Audio
Audio
Service
Power Out
Audio-Transceiver-CAT
Status Meaning
On Established connection to remote signal extender.
Off No connection to remote signal extender.
On The device is ready for operation.
Off The device is ready for operation.
Flashing Audio input »Auto« or »SPDIF« is active and a ompatible
audio signal is detected at the »Digital Audio – In«
interface.
On Incoming audio signal of remote signal extender
detected.
Flashing No incoming audio signal of remote signal extender
detected.
On Signal extender supplied with power.
Off Signal extender not supplied with power.
Status displays
Line In/
2 3
Micro In
1 4
0 5
9 6
8 7
In
Audio-Transceiver-CAT · 12
Line Out/
Speaker
