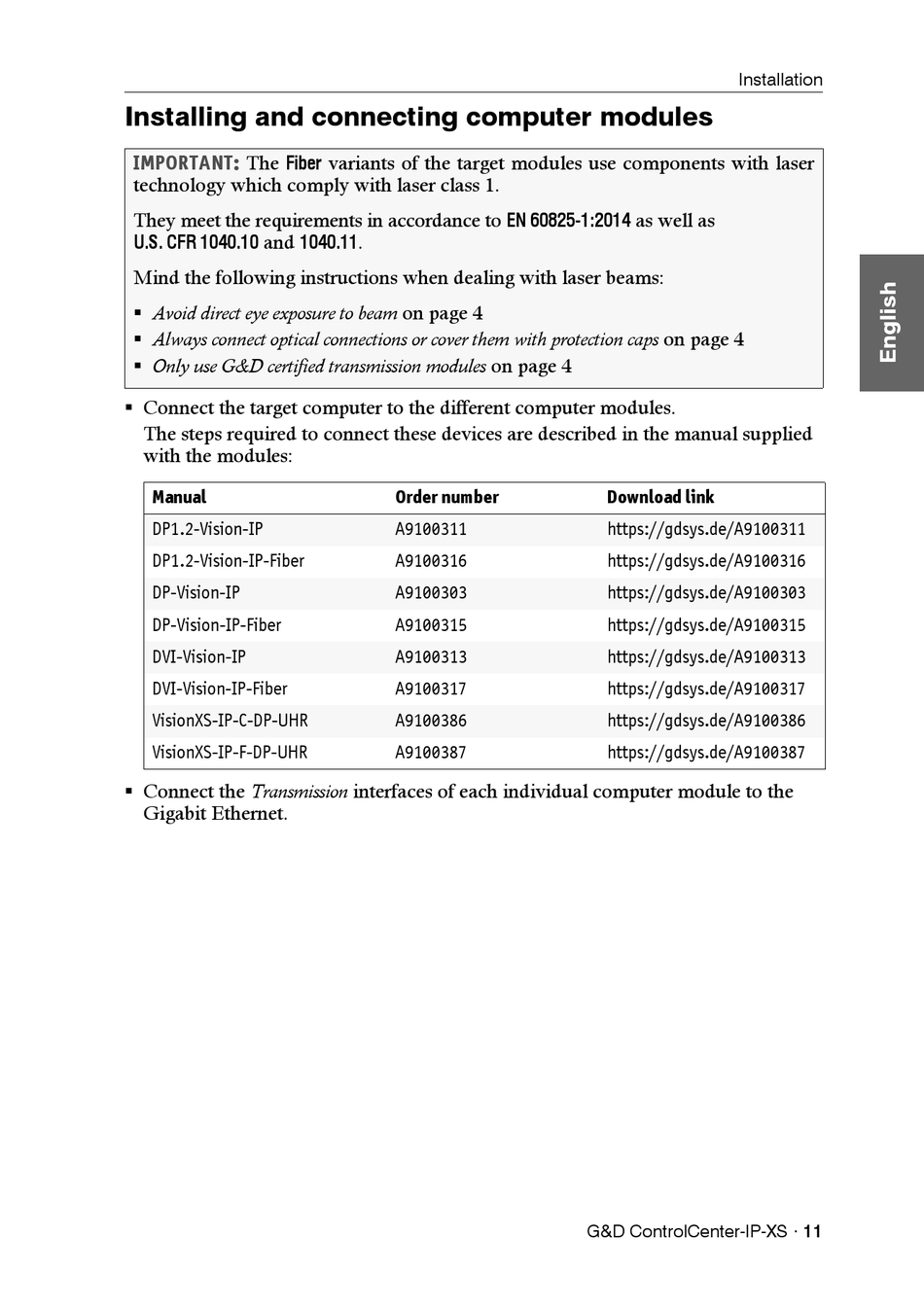

Installing and connecting computer modules

IMPORTANT: The Fiber
technology which comply with laser class 1.
They meet the requirements in accordance to
and
U.S. CFR 1040.10
Mind the following instructions when dealing with laser beams:
 Avoid direct eye exposure to beam on page 4
 Always connect optical connections or cover them with protection caps on page 4
 Only use G&D certified transmission modules on page 4
 Connect the target computer to the different computer modules.
The steps required to connect these devices are described in the manual supplied
with the modules:
Manual
DP1.2-Vision-IP
DP1.2-Vision-IP-Fiber
DP-Vision-IP
DP-Vision-IP-Fiber
DVI-Vision-IP
DVI-Vision-IP-Fiber
VisionXS-IP-C-DP-UHR
VisionXS-IP-F-DP-UHR
 Connect the Transmission interfaces of each individual computer module to the
Gigabit Ethernet.
variants of the target modules use components with laser
.
1040.11
Order number
A9100311
A9100316
A9100303
A9100315
A9100313
A9100317
A9100386
A9100387
EN 60825-1:2014 as well as
Download link
https://gdsys.de/A9100311
https://gdsys.de/A9100316
https://gdsys.de/A9100303
https://gdsys.de/A9100315
https://gdsys.de/A9100313
https://gdsys.de/A9100317
https://gdsys.de/A9100386
https://gdsys.de/A9100387
G&D ControlCenter-IP-XS · 11
Installation
