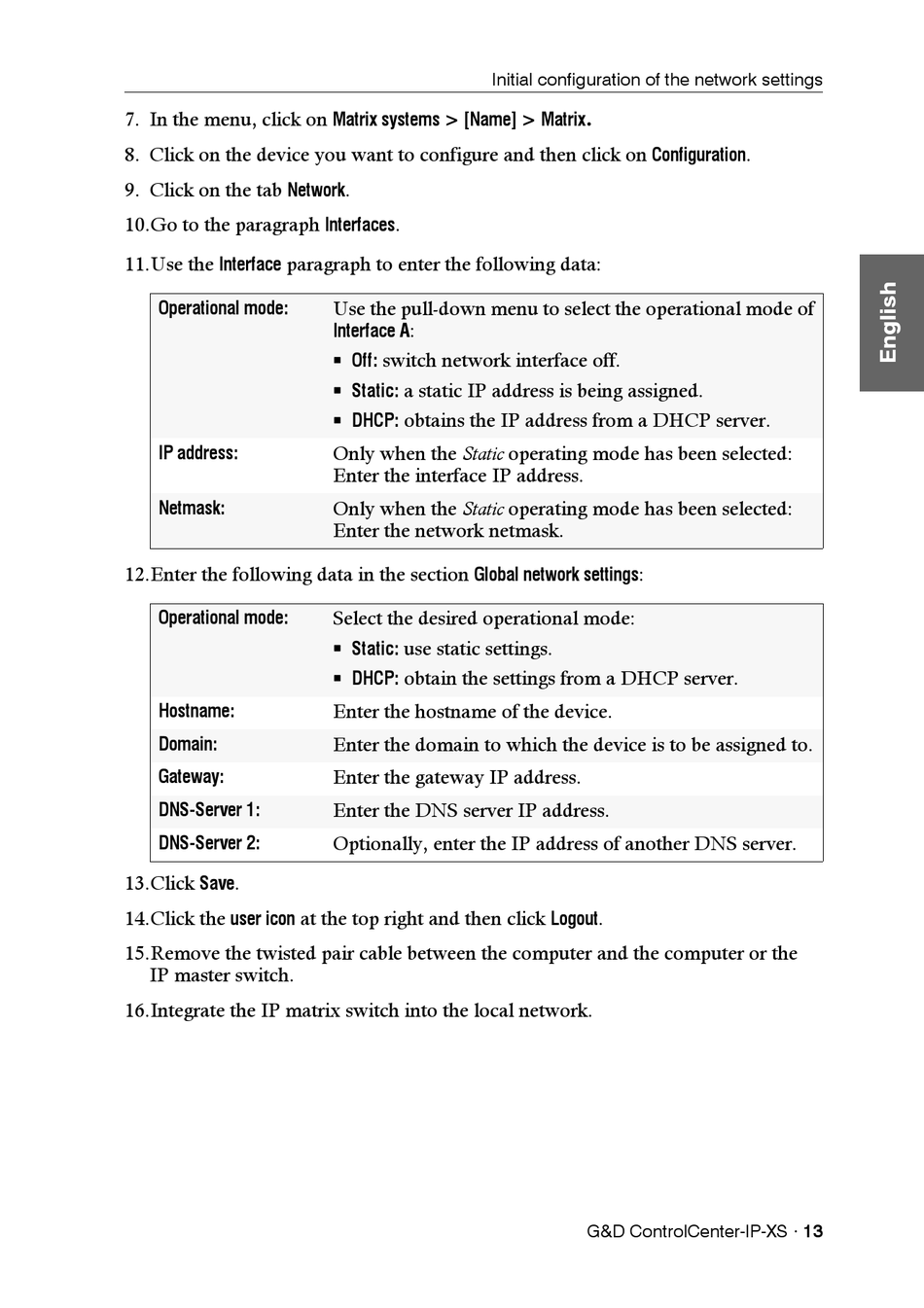

7. In the menu, click on
8. Click on the device you want to configure and then click on
9. Click on the tab Network
10.Go to the paragraph
11.Use the Interface paragraph to enter the following data:
Operational mode:
IP address:
Netmask:
12.Enter the following data in the section
Operational mode:
Hostname:
Domain:
Gateway:
DNS-Server 1:
DNS-Server 2:
13.Click .
Save
14.Click the
user icon
15.Remove the twisted pair cable between the computer and the computer or the
IP master switch.
16.Integrate the IP matrix switch into the local network.
Matrix systems > [Name] > Matrix
.
Interfaces .
Use the pull-down menu to select the operational mode of
Interface A :
 Off: switch network interface off.
 Static: a static IP address is being assigned.
 DHCP: obtains the IP address from a DHCP server.
Only when the Static operating mode has been selected:
Enter the interface IP address.
Only when the Static operating mode has been selected:
Enter the network netmask.
Global network settings
Select the desired operational mode:
 Static: use static settings.
 DHCP: obtain the settings from a DHCP server.
Enter the hostname of the device.
Enter the domain to which the device is to be assigned to.
Enter the gateway IP address.
Enter the DNS server IP address.
Optionally, enter the IP address of another DNS server.
at the top right and then click
Initial configuration of the network settings
.
Configuration
:
.
Logout
G&D ControlCenter-IP-XS · 13
.
