Initial Configuration Of The Network Settings - G&D ControlCenter-IP-XS Installationsanleitung

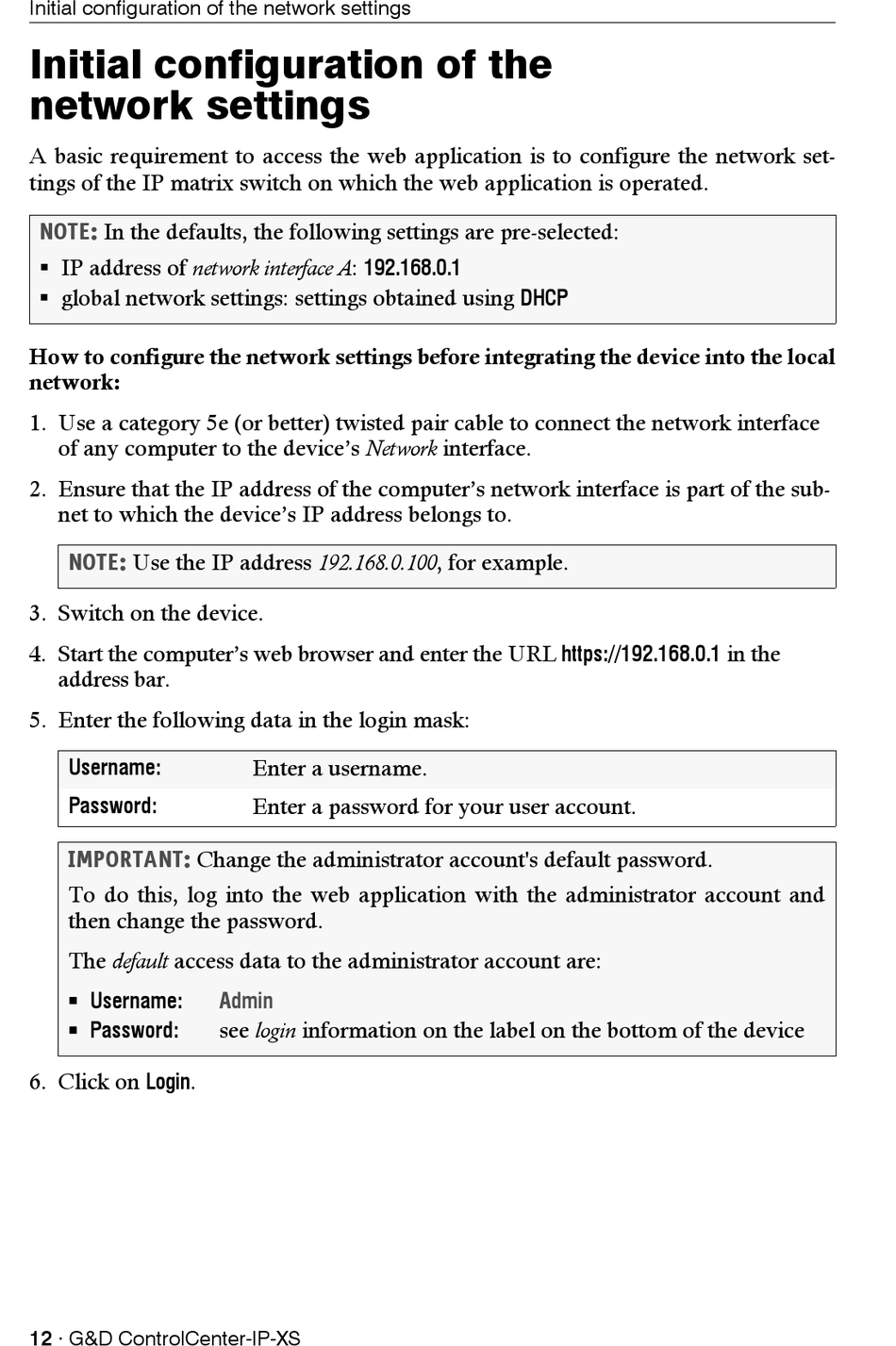

Initial configuration of the network settings

Initial configuration of the
network settings
A basic requirement to access the web application is to configure the network set-
tings of the IP matrix switch on which the web application is operated.
NOTE:
In the defaults, the following settings are pre-selected:
 IP address of network interface A:
 global network settings: settings obtained using
How to configure the network settings before integrating the device into the local
network:
1. Use a category 5e (or better) twisted pair cable to connect the network interface
of any computer to the device's Network interface.
2. Ensure that the IP address of the computer's network interface is part of the sub-
net to which the device's IP address belongs to.
NOTE:
Use the IP address 192.168.0.100, for example.
3. Switch on the device.
4. Start the computer's web browser and enter the URL
address bar.
5. Enter the following data in the login mask:
Username:
Password:
IMPORTANT: Change the administrator account's default password.
To do this, log into the web application with the administrator account and
then change the password.
The default access data to the administrator account are:
 Username:
 Password:
6. Click on Login .
12 · G&D ControlCenter-IP-XS
192.168.0.1
Enter a username.
Enter a password for your user account.
Admin
see login information on the label on the bottom of the device
DHCP
https://192.168.0.1 in the
