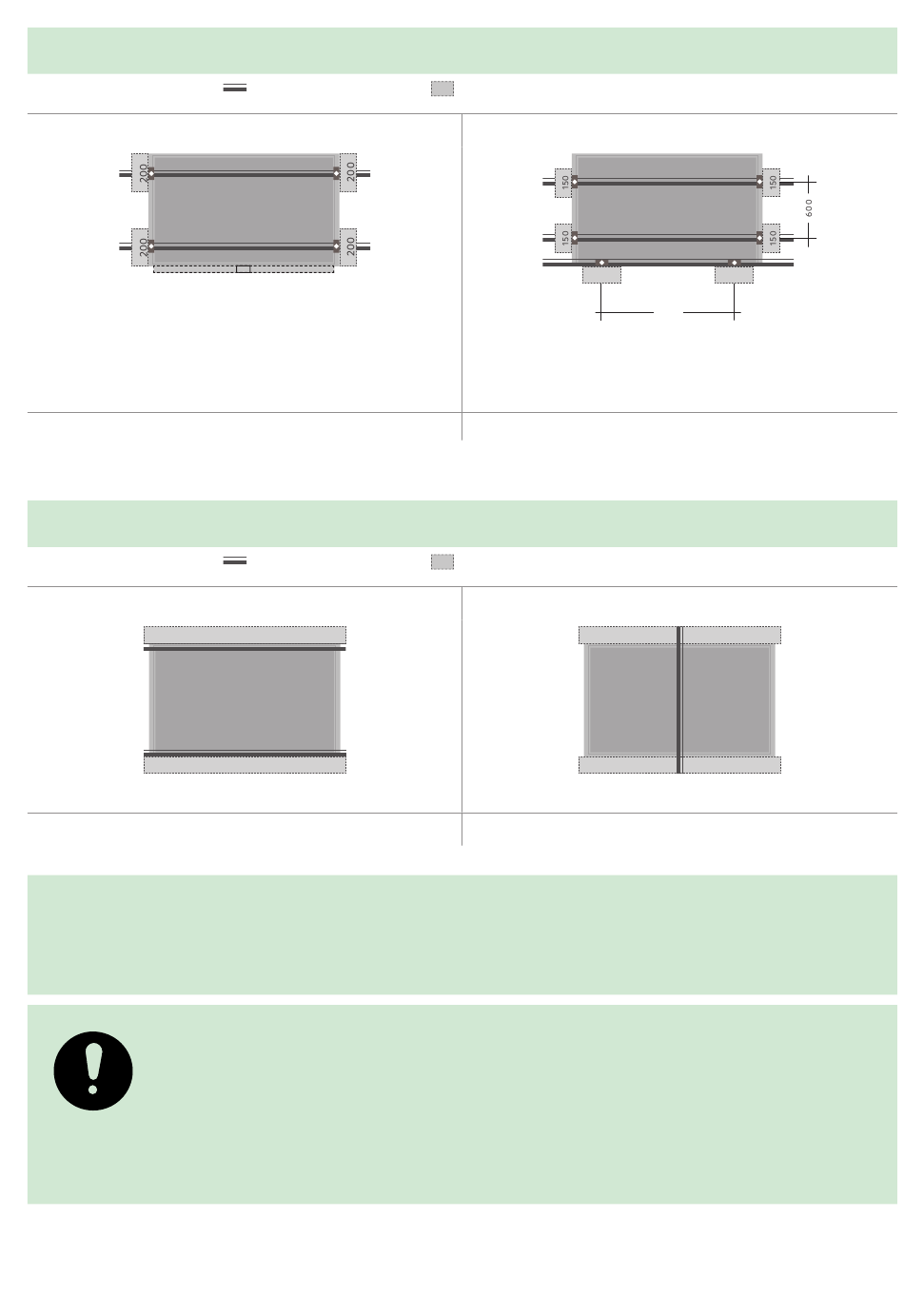

Module clamps
Min. clamp surface area: 7 x 40 mm
requires a central, round or linear support
on the lower frame side (central support)
Max. recommended pressure load to the module: 2,400 N/m²
Insertion system
Max. recommended pressure load to the module: 3,600 N/m²
Additional system-specific load limits can be found in the download area
at solarwatt.com.
NOTE
Under mechanical load, no contact between solar glass and hard materials (eg.
metal, glass) may occur. The drainage holes in the module frame must not be
covered, as it could cause frost damage on the module frame. Do not place any
plug connectors in the frame.
32
substructure
substructure
Module clamps
areas approved for fastening
Min. clamp surface area: 7 x 40 mm
200
Max. recommended pressure load to the module: 5,400 N/m²
areas approved for fastening
Max. recommended pressure load to the module: 5,400 N/m²
Subject to change | © 2022 Solarwatt GmbH
200
1.100
