SOLARWATT Vision 60M construct Montageanleitung Seite 30

Only use the holes (diameter 9 mm ) provided in the frame!
Max. recommended pressure load to the module: 2,800 N/m²

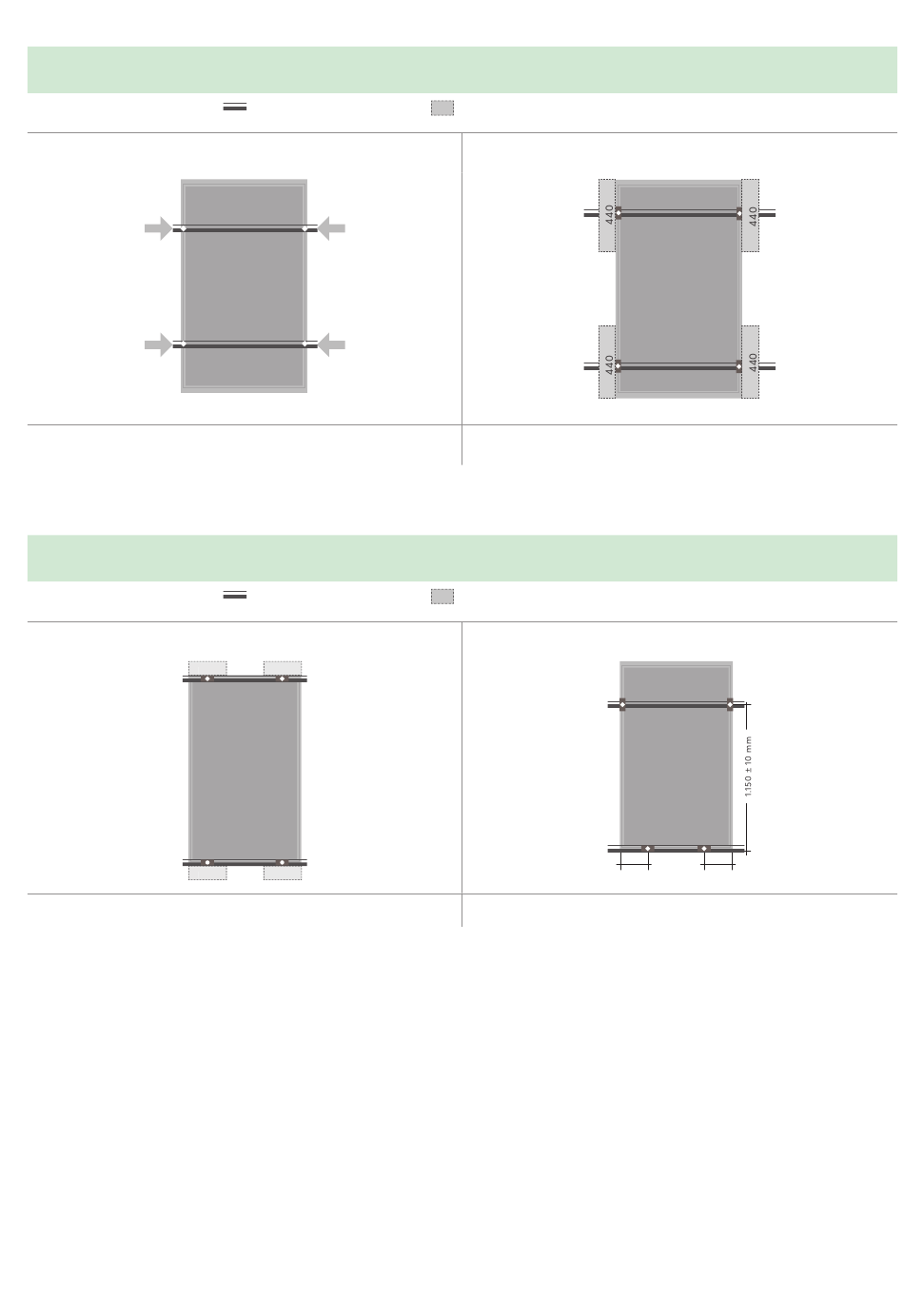

Module clamps
Min. clamp surface area: 7 x 40 mm
Max. recommended pressure load to the module: 2,400 N/m²
30
Screws
substructure
substructure
200 200 200
200 200 200
Module clamps
areas approved for fastening
Min. clamp surface area: 7 x 40 mm
Max. recommended pressure load to the module: 2,800 N/m²
Module clamps
areas approved for fastening
Min. clamp surface area: 8 x 100 mm
245 ± 5 m m
Max. recommended pressure load to the module: 3,600 N/m²
Subject to change | © 2022 Solarwatt GmbH
245 ± 5 m m
