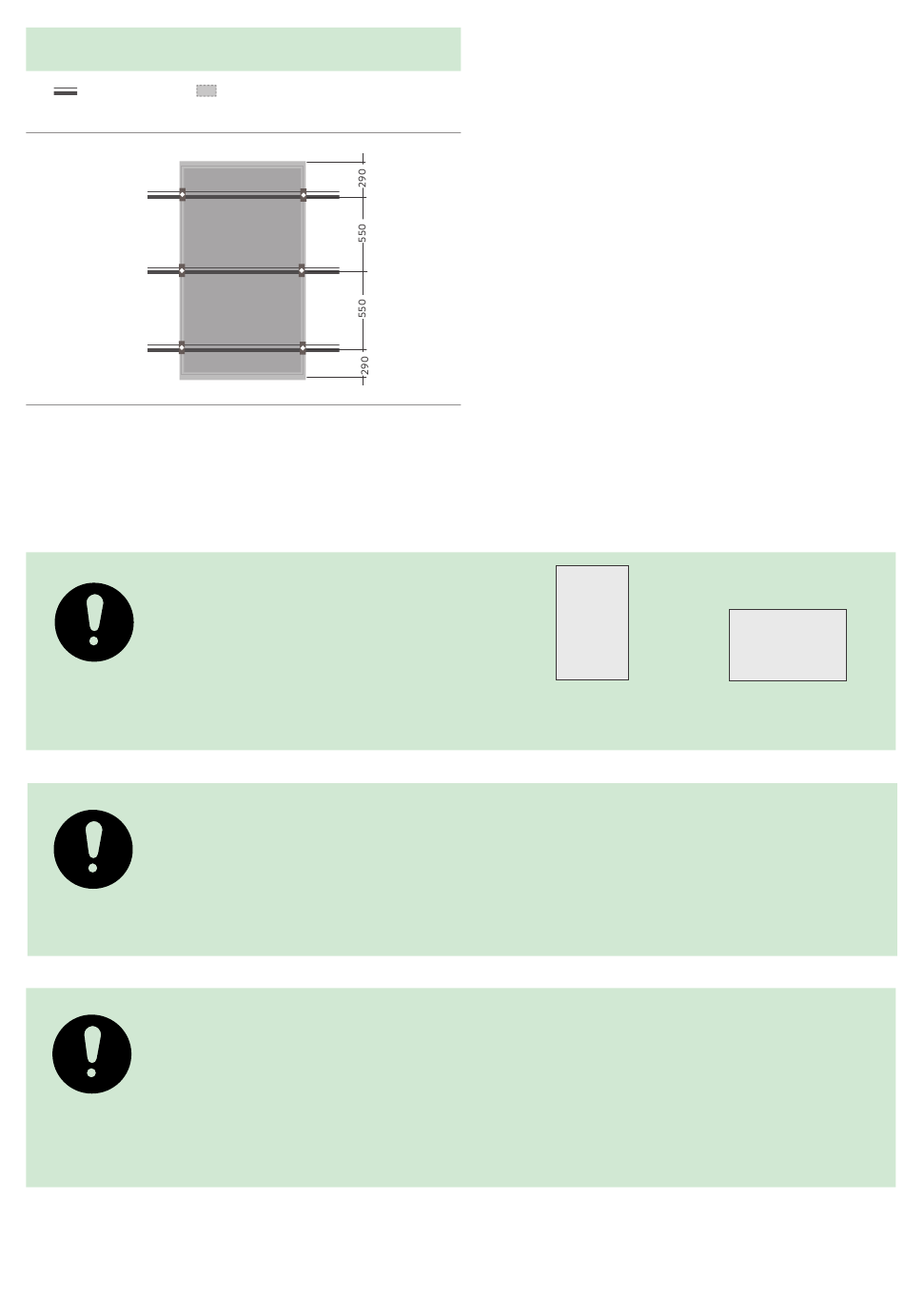

SOLARWATT Vision 60M construct Montageanleitung Seite 28

Long side with point clamping (6 points)
substructure
Max. recommended pressure load to the module:
qd.ULS D ≤ 1.70 kN/m²
Max. recommended suction load to the module:
qd.ULS S ≤ -1.70 kN/m²
NOTE
The solar modules can be
installed both vertically (portrait)
and horizontally (landscape).
NOTE
When using the solar modules as overhead glazing, the provisions of the natio-
nal technical approval apply and must be observed. For roof installation, these
solar modules may only be installed over a fire-resistant roof covering.
NOTE
Under mechanical load, no contact between solar glass and hard materials (eg.
metal, glass) may occur. The drainage holes in the module frame must not be
covered, as it could cause frost damage on the module frame. Do not place any
plug connectors in the frame.
28
areas approved for fastening
vertical installation
(portrait)
Subject to change | © 2022 Solarwatt GmbH
horizontal installation
(landscape)
