SOLARWATT Vision 60M construct Montageanleitung Seite 27

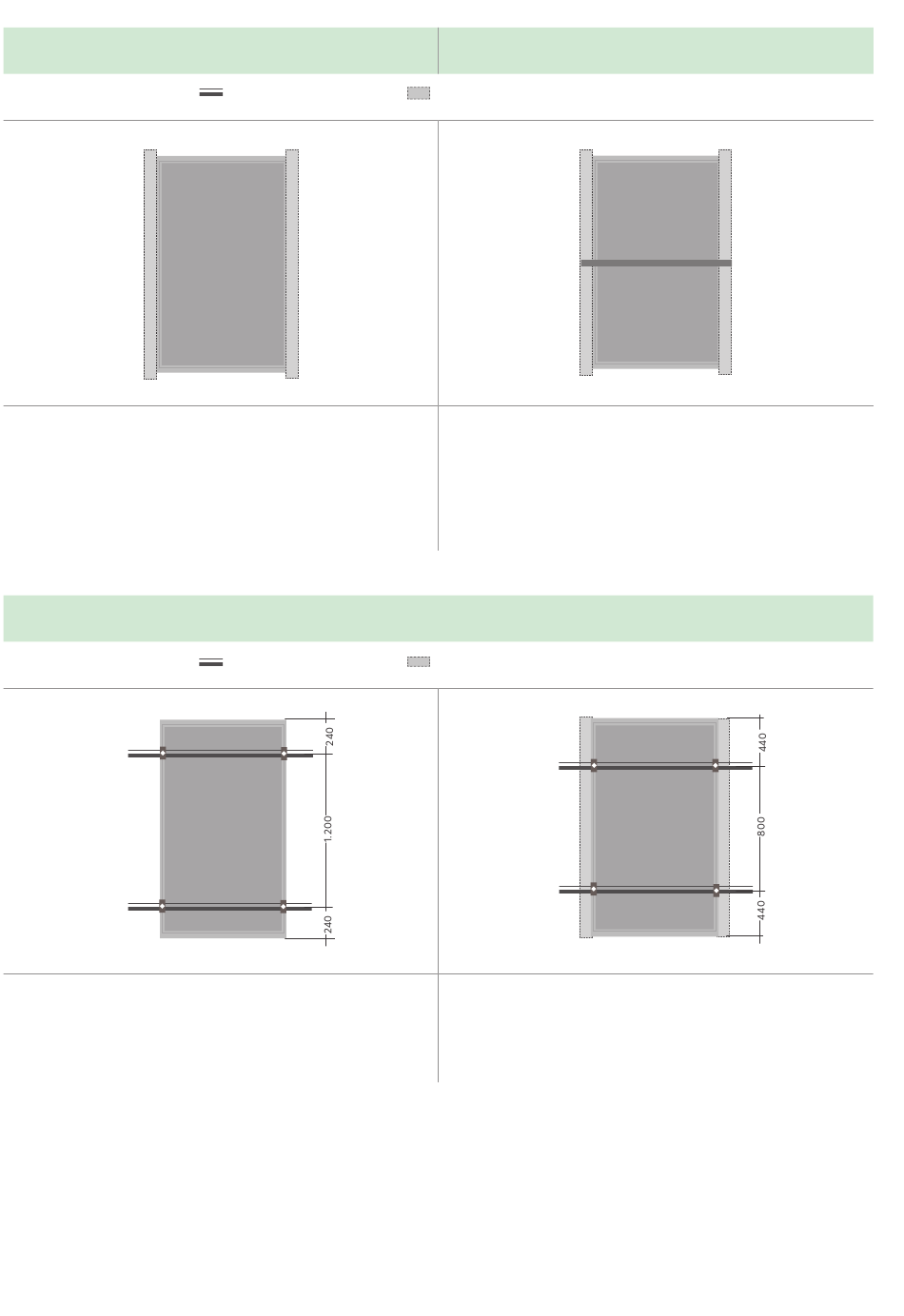

Long side linear
Max. recommended pressure load to the module:
qd.ULS D ≤ 2.00 kN/m²
Max. recommended suction load to the module:
qd.ULS S ≤ -2.00 kN/m²
Long side with point clamping (4 points)
Max. recommended pressure load to the module:
qd.ULS D ≤ 1.70 kN/m²
Max. recommended suction load to the module
qd.ULS S ≤ -1.70 kN/m²
Subject to change | © 2022 Solarwatt GmbH
substructure
substructure
Long side linear with middle strive
areas approved for fastening
Max. recommended pressure load to the module:
qd.ULS ≤ ca. 3.30 kN/m² *
D
Max. recommended suction load to the module:
qd.ULS ≤ -2.00 kN/m²
S
* depends on profile size of the middle strive
Long side linear/ point clamping (4 points)
areas approved for fastening
Max. recommended pressure load to the module:
qd.ULS ≤ 2.00 kN/m²
D
Max. recommended suction load to the module:
qd.ULS ≤ -1.90 kN/m²
S
