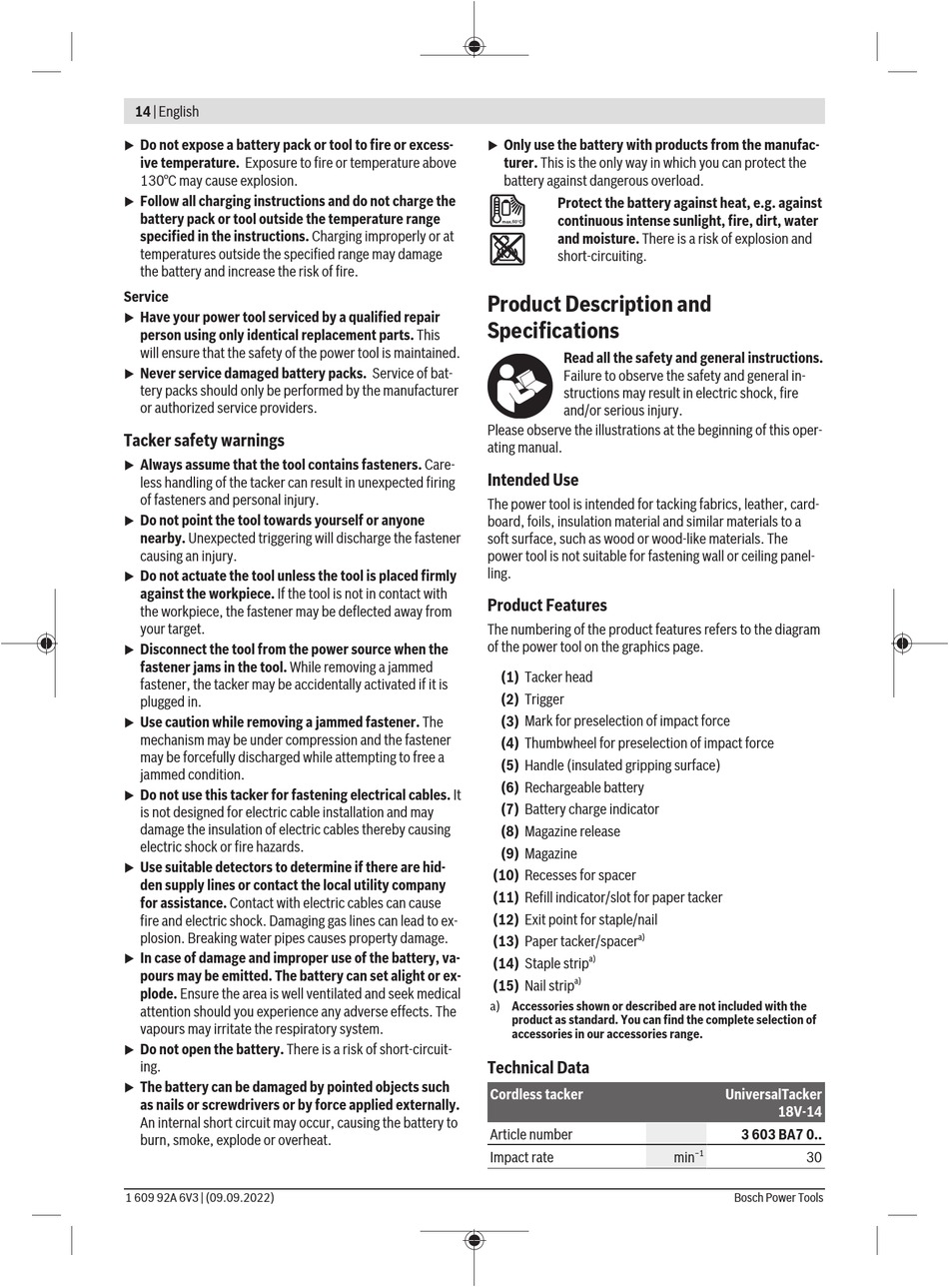

14 | English
Do not expose a battery pack or tool to fire or excess-
u
ive temperature. Exposure to fire or temperature above
130°C may cause explosion.
Follow all charging instructions and do not charge the
u
battery pack or tool outside the temperature range
specified in the instructions. Charging improperly or at
temperatures outside the specified range may damage
the battery and increase the risk of fire.
Service
Have your power tool serviced by a qualified repair
u
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
Never service damaged battery packs. Service of bat-
u
tery packs should only be performed by the manufacturer
or authorized service providers.
Tacker safety warnings
Always assume that the tool contains fasteners. Care-
u
less handling of the tacker can result in unexpected firing
of fasteners and personal injury.
Do not point the tool towards yourself or anyone
u
nearby. Unexpected triggering will discharge the fastener
causing an injury.
Do not actuate the tool unless the tool is placed firmly
u
against the workpiece. If the tool is not in contact with
the workpiece, the fastener may be deflected away from
your target.
Disconnect the tool from the power source when the
u
fastener jams in the tool. While removing a jammed
fastener, the tacker may be accidentally activated if it is
plugged in.
Use caution while removing a jammed fastener. The
u
mechanism may be under compression and the fastener
may be forcefully discharged while attempting to free a
jammed condition.
Do not use this tacker for fastening electrical cables. It
u
is not designed for electric cable installation and may
damage the insulation of electric cables thereby causing
electric shock or fire hazards.
Use suitable detectors to determine if there are hid-
u
den supply lines or contact the local utility company
for assistance. Contact with electric cables can cause
fire and electric shock. Damaging gas lines can lead to ex-
plosion. Breaking water pipes causes property damage.
In case of damage and improper use of the battery, va-
u
pours may be emitted. The battery can set alight or ex-
plode. Ensure the area is well ventilated and seek medical
attention should you experience any adverse effects. The
vapours may irritate the respiratory system.
Do not open the battery. There is a risk of short-circuit-
u
ing.
The battery can be damaged by pointed objects such
u
as nails or screwdrivers or by force applied externally.
An internal short circuit may occur, causing the battery to
burn, smoke, explode or overheat.
1 609 92A 6V3 | (09.09.2022)
Only use the battery with products from the manufac-
u
turer. This is the only way in which you can protect the
battery against dangerous overload.
Protect the battery against heat, e.g. against
continuous intense sunlight, fire, dirt, water
and moisture. There is a risk of explosion and
short-circuiting.
Product Description and
Specifications
Read all the safety and general instructions.
Failure to observe the safety and general in-
structions may result in electric shock, fire
and/or serious injury.
Please observe the illustrations at the beginning of this oper-
ating manual.
Intended Use
The power tool is intended for tacking fabrics, leather, card-
board, foils, insulation material and similar materials to a
soft surface, such as wood or wood-like materials. The
power tool is not suitable for fastening wall or ceiling panel-
ling.
Product Features
The numbering of the product features refers to the diagram
of the power tool on the graphics page.
(1) Tacker head
(2) Trigger
(3) Mark for preselection of impact force
(4) Thumbwheel for preselection of impact force
(5) Handle (insulated gripping surface)
(6) Rechargeable battery
(7) Battery charge indicator
(8) Magazine release
(9) Magazine
(10) Recesses for spacer
(11) Refill indicator/slot for paper tacker
(12) Exit point for staple/nail
a)
(13) Paper tacker/spacer
a)
(14) Staple strip
a)
(15) Nail strip
a) Accessories shown or described are not included with the
product as standard. You can find the complete selection of
accessories in our accessories range.
Technical Data
Cordless tacker
Article number
Impact rate
UniversalTacker
18V-14
3 603 BA7 0..
−1
min 30
