3. OPERATION

3.1 ADJUSTMENT OF THE SCREW-IN-TYPE EYE CUPS

Basically, there are three (SLC 42) or four (SLC 56) different
adjustment positions available with different distances bet-
ween the eye and the lens. This allows you to adjust the eye
cups individually to your personal preference.

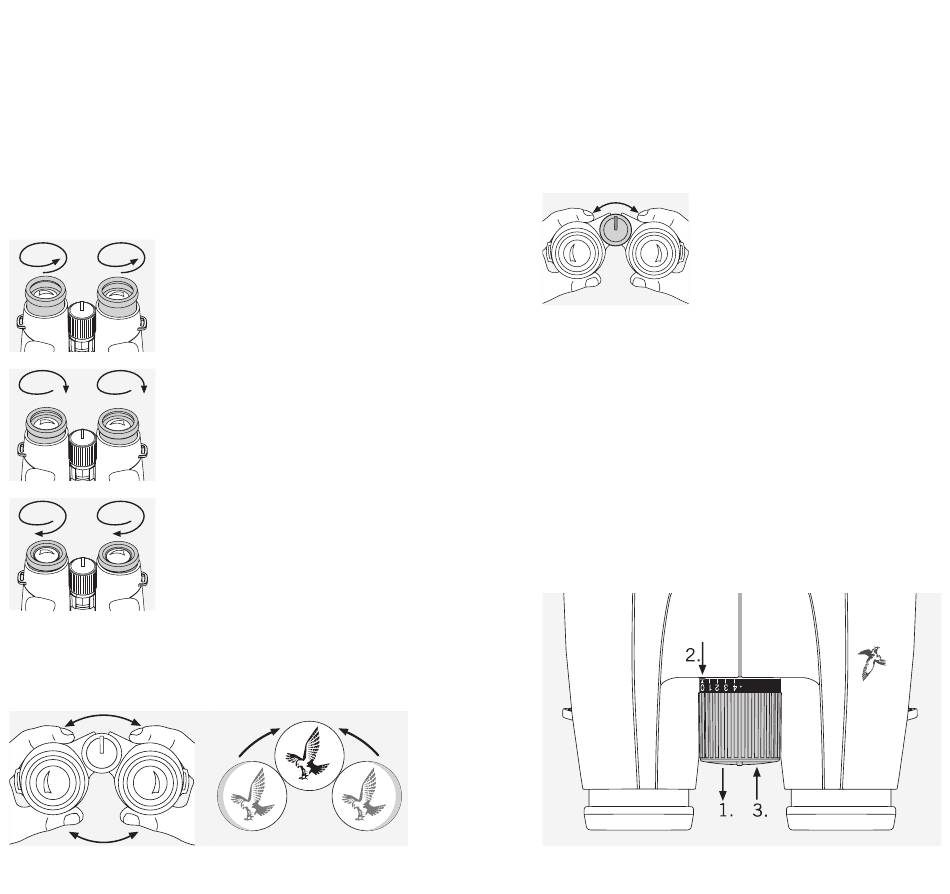

Pos. A: Initial position without eye-
glasses: For this, twist out the eyecups
counterclockwise to the full extent.
Pos. B: Initial position with eyeglas-
ses: Twist in the eyecups clockwise
until they stop.
Pos. C and D: Alternative positions
or interim adjustment stages for eye-
glass-wearers and non-eyeglasses-
wearers.
3.2 ADJUSTMENT OF INTERPUPILLARY DISTANCE
16
SLC / EN SLC / DE
To see a single round image, turn the two halves of the bino-
culars until no irritating shadows can be seen.
3.3 ADJUSTMENT OF FOCUSING
It is possible to bring every subject
into focus from the shortest adjust-
ment distance (see technical data
sheet) to infinity by turning the focu-
sing wheel.
In the infinity position the little nose of
the focusing wheel is at the top.
3.4 DIOPTRIC COMPENSATION
To achieve optimal image quality, the possibly varying visual
acuity between the left and right eye must be corrected.
Use with equal acuity of both eyes:
1. Pull the focusing wheel outwards.
2. By turning the focusing wheel, set the dioptric scale to "0".
3. Push the focusing wheel back in.
SLC / EN SLC / DE
