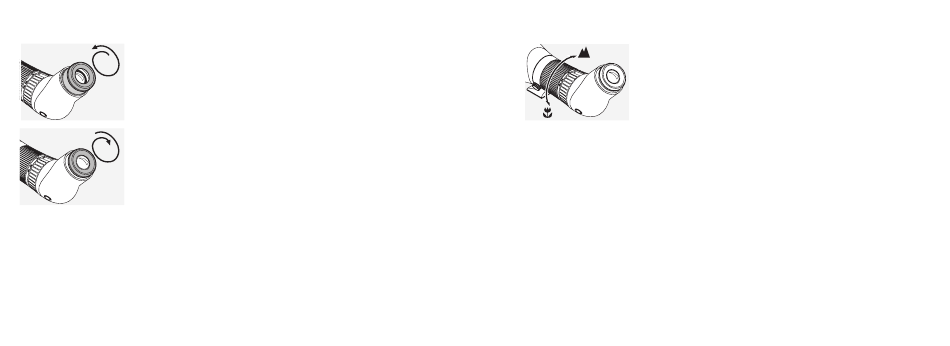

2.5 ADJUSTMENT OF THE SCREW-IN-TYP EYE CUP

Use without eyeglasses:
Turn the eye cup (counterclockwise) until it stops.
Use with eyeglasses:
Turn the eye cup (clockwise) until it stops.
Tip for eyeglass wearers:
The SWAROVSKI OPTIK special eyecup offer additional viewing comfort, now avail-
able at choice retailers.
22
ATX/STX / EN ATX/STX / DE
2.6 FOCUSING
• For distant objects, turn the focusing wheel to the right
(clockwise).
• By turning the focusing wheel to the left (counterclockwise),
you can observe objects that are nearer.
• In order to ensure fatigue-free observation, turn the adjust-
ment ring for focusing a bit to the left (counterclockwise) until the image becomes slightly
unsharp. Then turn the focusing wheel to the right (clockwise) until the maximum image
definition is attained for the first time.
Useful tip:
Use the focusing wheel of the spotting scope for accurate focusing. This reduces eye
strain.
