INSTALLATION

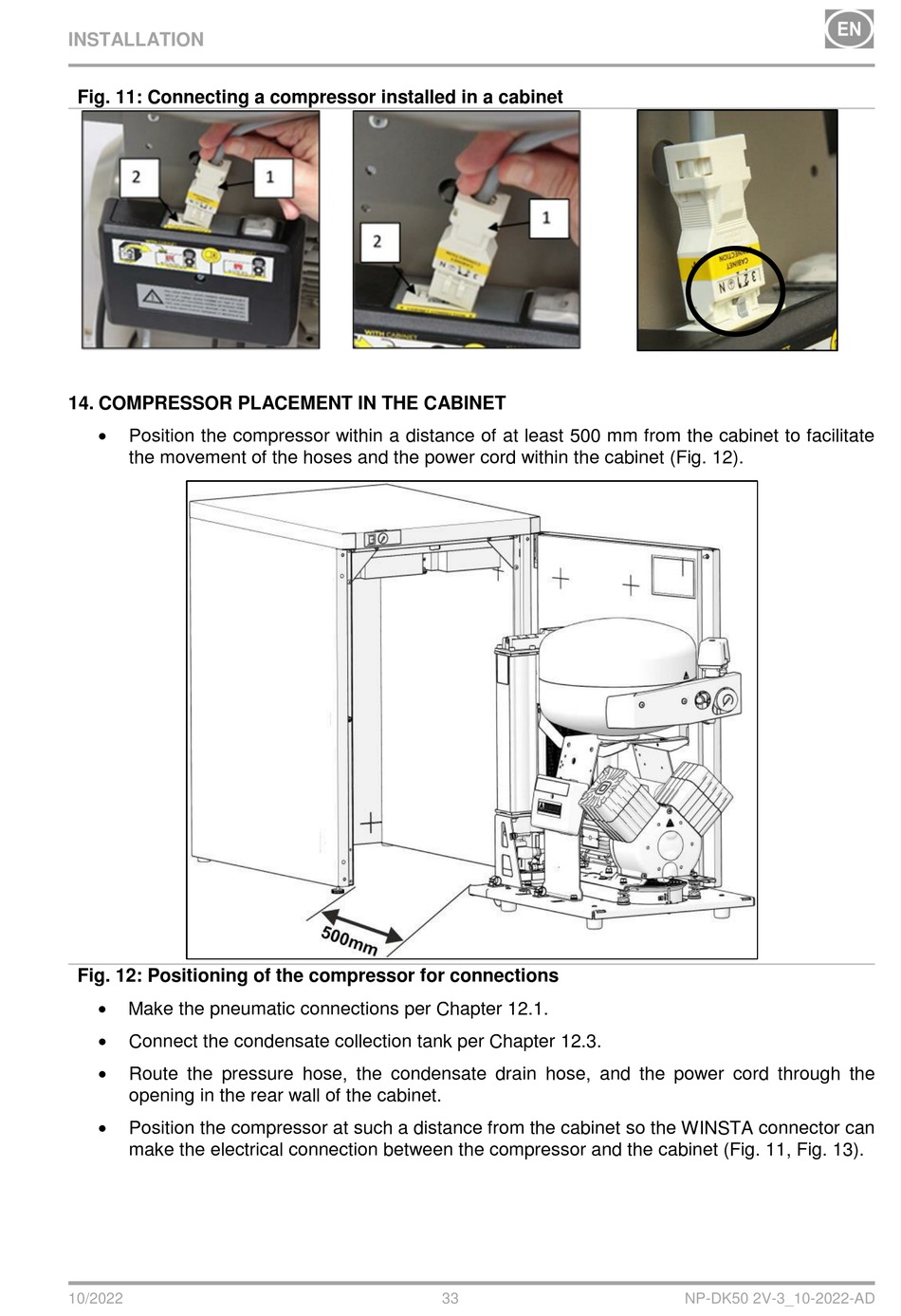

Fig. 11: Connecting a compressor installed in a cabinet

14. COMPRESSOR PLACEMENT IN THE CABINET


Position the compressor within a distance of at least 500 mm from the cabinet to facilitate
the movement of the hoses and the power cord within the cabinet (Fig. 12).
Fig. 12: Positioning of the compressor for connections

Make the pneumatic connections per Chapter 12.1.

Connect the condensate collection tank per Chapter 12.3.

Route the pressure hose, the condensate drain hose, and the power cord through the
opening in the rear wall of the cabinet.

Position the compressor at such a distance from the cabinet so the WINSTA connector can
make the electrical connection between the compressor and the cabinet (Fig. 11, Fig. 13).
10/2022 33 NP-DK50 2V-3_10-2022-AD
