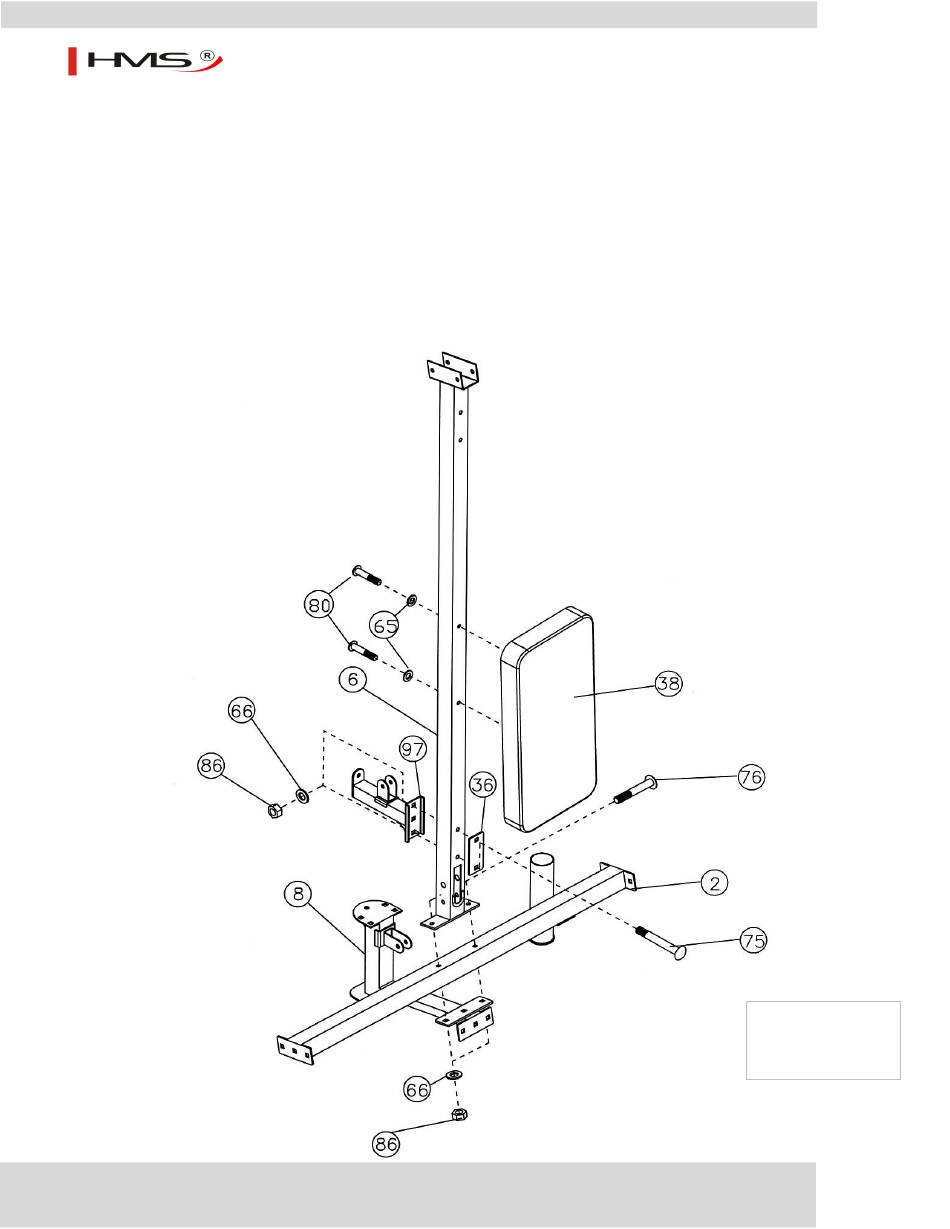

STEP 3 (See Diagram 3)
1) Attach the Rear Vertical Beam (#6) to the top of the Cross Brace (#2). Attach the Weight Glide Base
(#8) to the Cross Brace from the Bottom. Align the holes. Secure them with two M10 x 3" Carriage
Bolts (#76), Ø ¾" Washers (#66), and M10 Aircraft Nuts (#86).
2) Attach the Pulley Support Frame (#97) to the Rear Vertical Beam. Secure it with two M10 x 2 ¾"
Carriage Bolts (#75), one 4 ¾" x 2" Bracket (#36), two Ø ¾" Washers (#66), and two M10 Aircraft
Nuts (#86).
3) Attach the Backrest Board (#38) to the Rear Vertical Beam. Secure it with two M8 x 2 ½" Allen Bolts
(#80) and Ø 5/8" Washers (#65).
