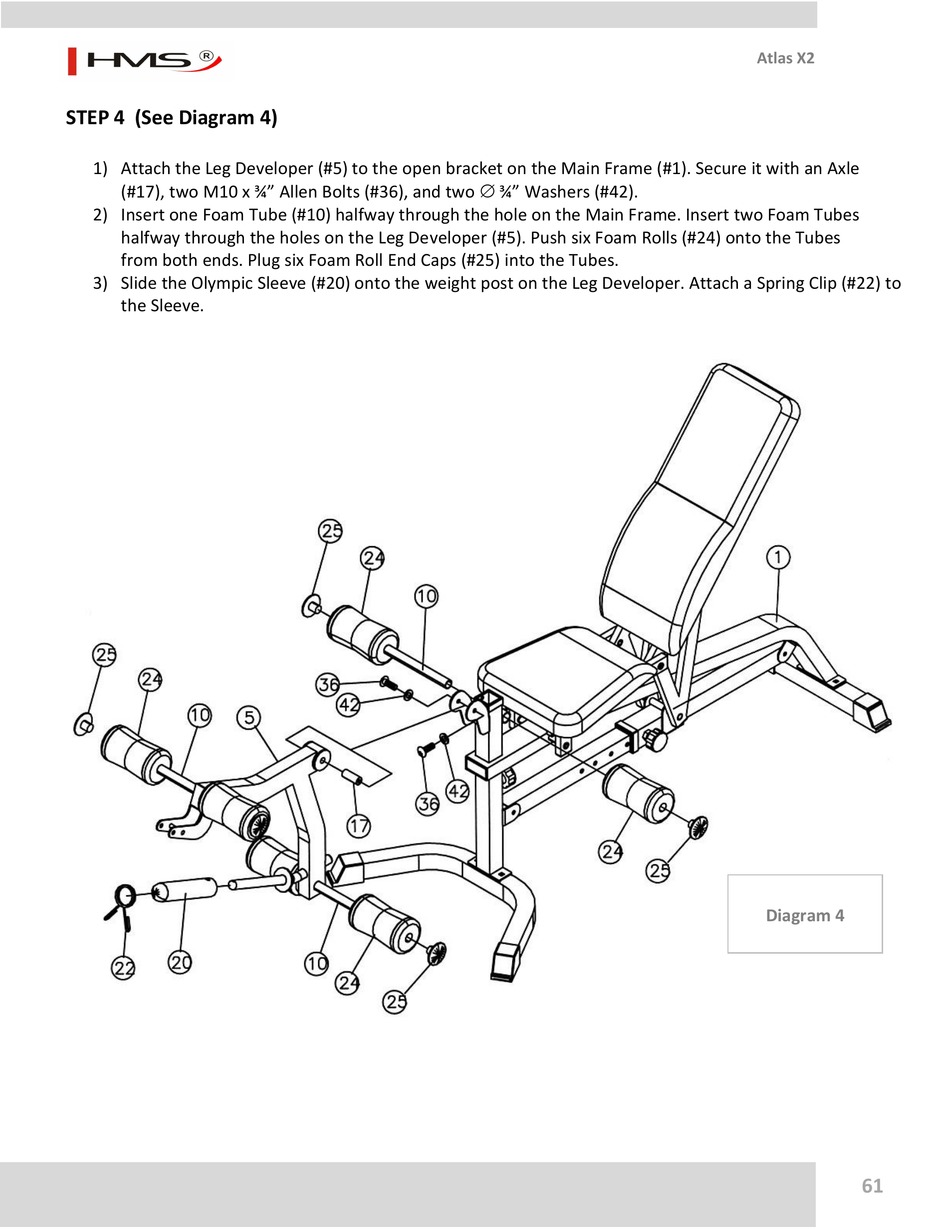

STEP 4 (See Diagram 4)
1) Attach the Leg Developer (#5) to the open bracket on the Main Frame (#1). Secure it with an Axle
(#17), two M10 x ¾" Allen Bolts (#36), and two  ¾" Washers (#42).
2) Insert one Foam Tube (#10) halfway through the hole on the Main Frame. Insert two Foam Tubes
halfway through the holes on the Leg Developer (#5). Push six Foam Rolls (#24) onto the Tubes
from both ends. Plug six Foam Roll End Caps (#25) into the Tubes.
3) Slide the Olympic Sleeve (#20) onto the weight post on the Leg Developer. Attach a Spring Clip (#22) to
the Sleeve.
