4

Preparation and operation

4.1 Connecting the module up to the
therapy device

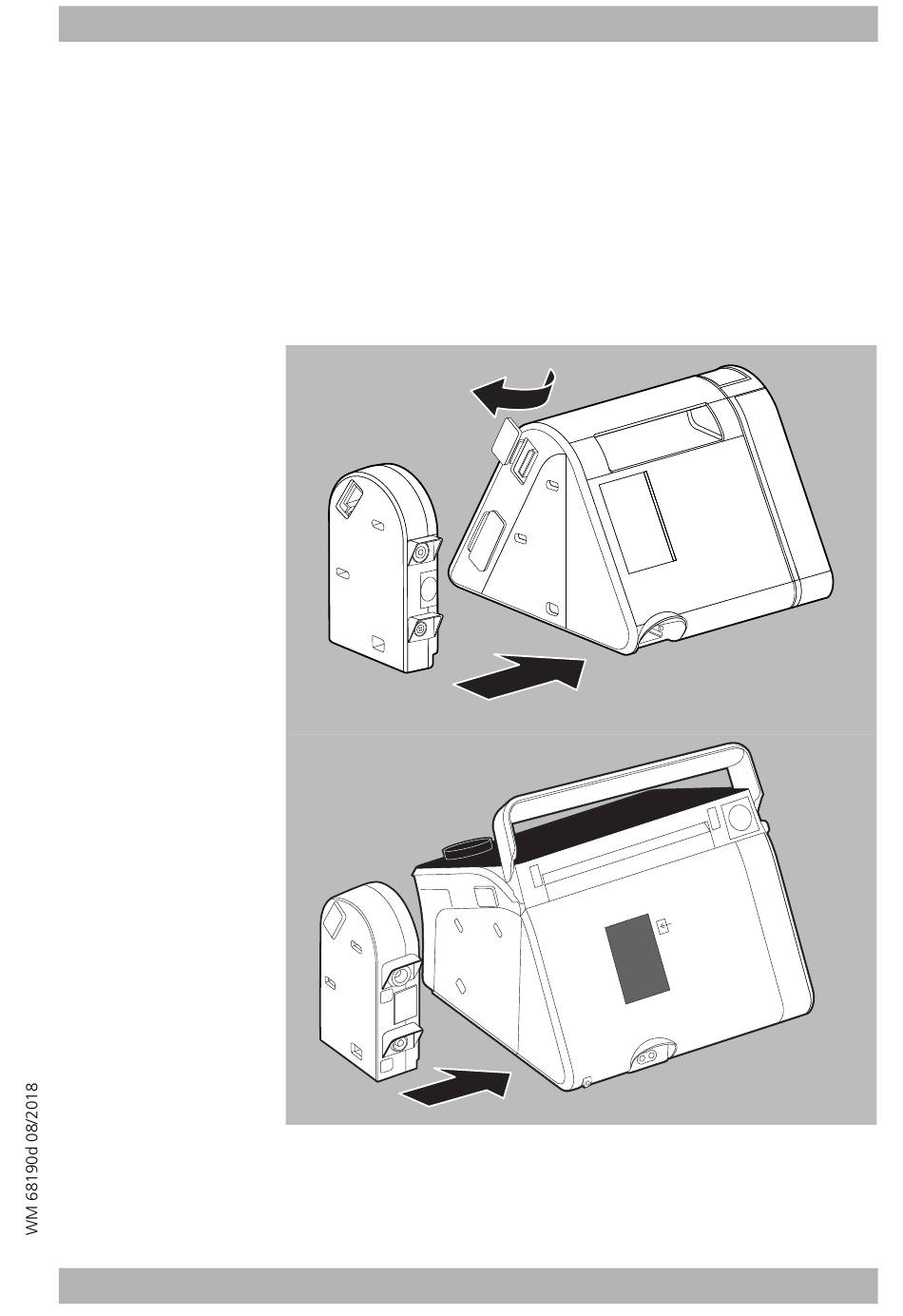

1. Open the system interface cover on the right side of the
therapy device.
prismaLINE
(WM 100 TD)
prismaVENT
(WM 110 TD,
WM 120 TD)
2. Keep the unlocking button on the module depressed.
3. Slide the module's locking hooks into the mounting holes on
the therapy device until it clicks into place.
prisma CHECK EN 35
