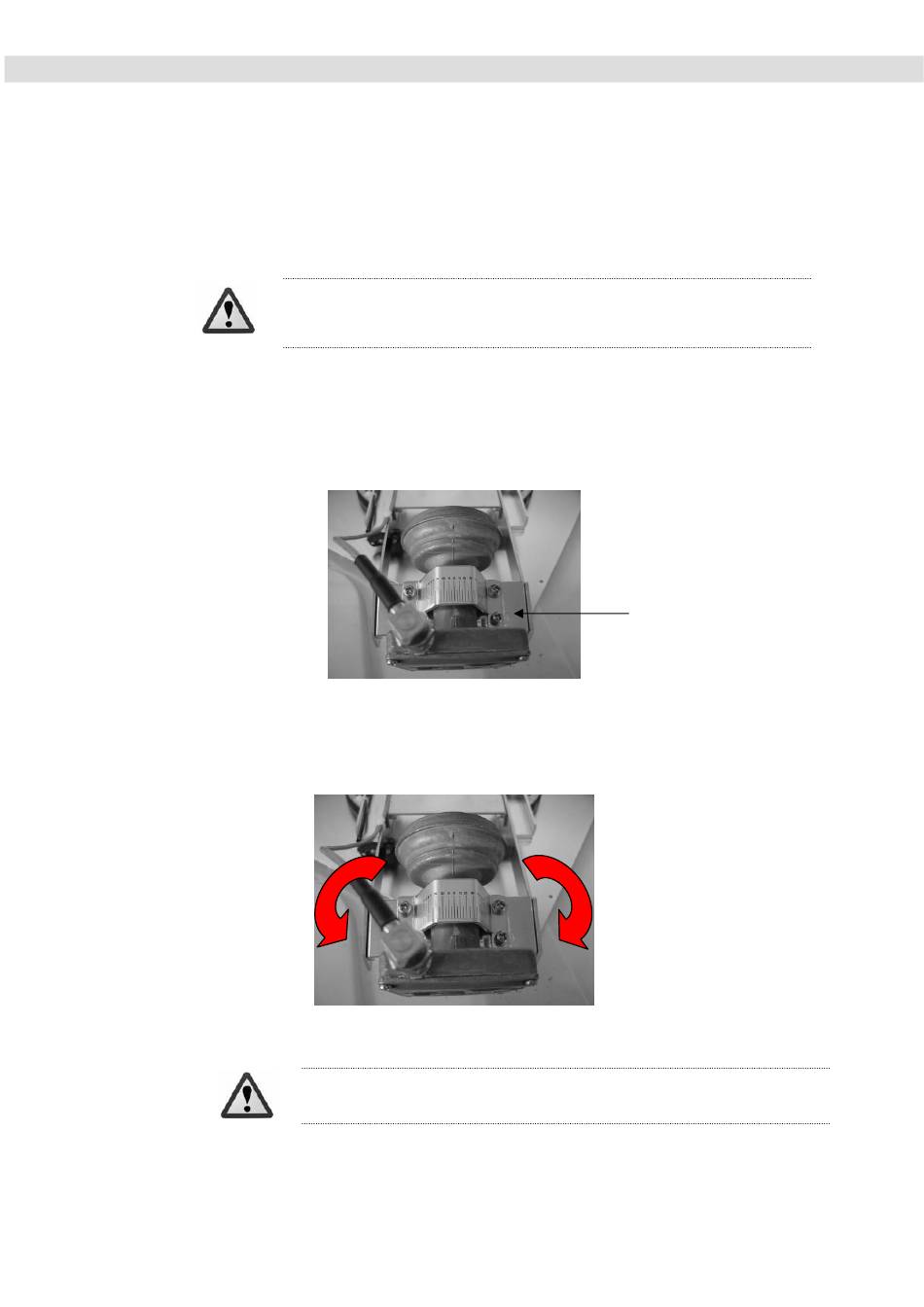

Setting the Skew Angle in Free Way antennas

If you have determined the correct skew angle, follow the steps below to adjust the
antenna's LNB skew angle.
1. Turn off the antenna and disconnect power to all wired components
2. Using the screwdriver, remove the screws securing the radome. Then
remove and set it aside in a safe place
3. Localize the LNB assembly in the front of the antenna reflector
4. Loosen the four screws fastening the LNB
5. Adjust the LNB clockwise or counter-clockwise, until the skew arrow on the
LNB points to the skew angle that you determined earlier
(-) Direction
Figure A-5
6. Tighten the four screws
Caution – To avoid bodily injury, be sure to turn off the antenna and
disconnect the power to all wired components.
Figure A-4 Free Way LNB
LNB Center Line
Free Way LNB Skew Angle adjustment
Caution – Be sure to keep the LNB fully inserted into the hall to ensure
the optimum performance
LNB
(+) Direction
