4.1. Installation
The products in the CLX Series must be installed indoors or in an electrical cabinet. It can be
mounted either horizontally or vertically (connectors facing downwards) on a mounting rail sys-
tem or on a wall using the supplied wall bracket.
4

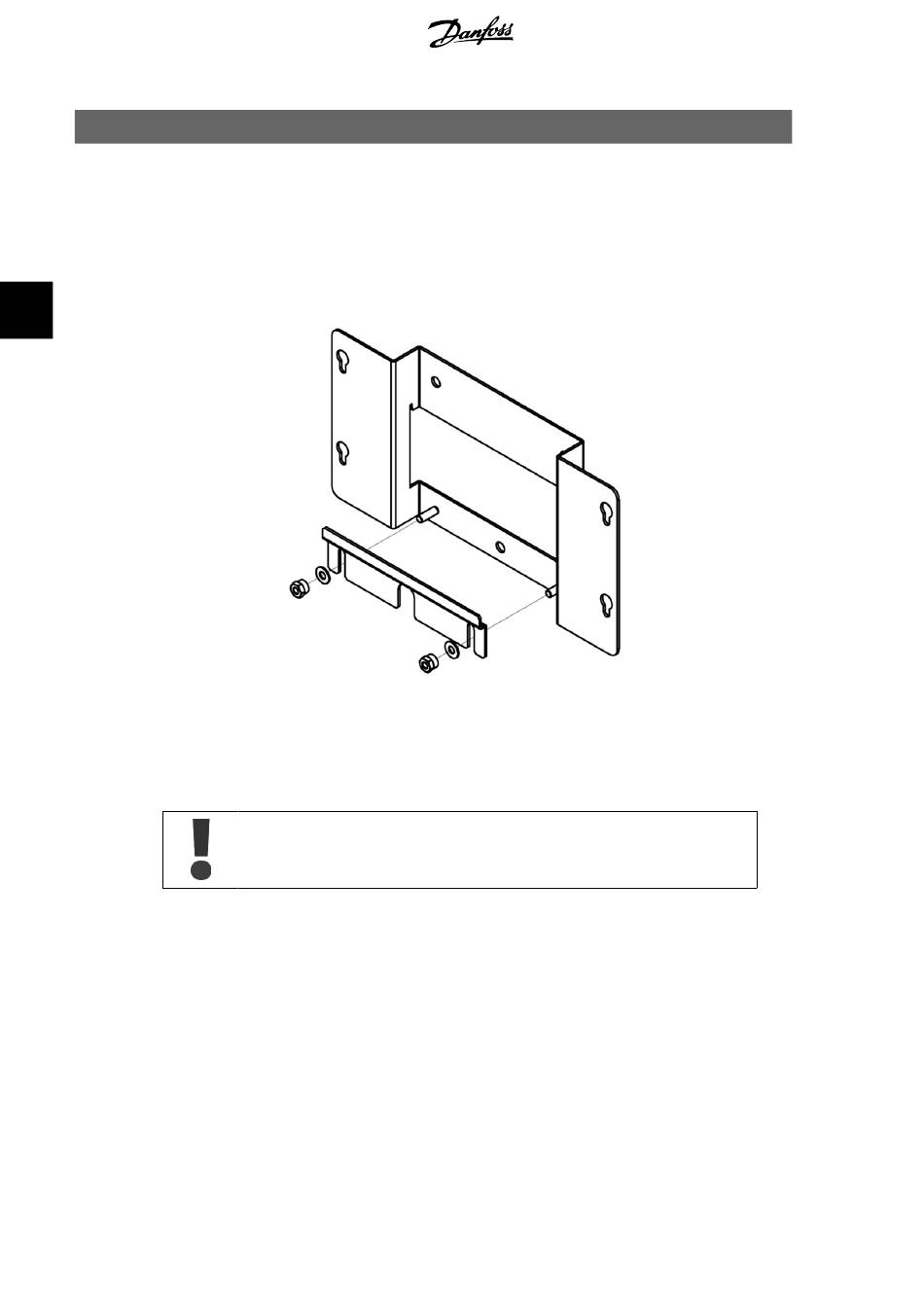

Illustration 4.1: Wall Bracket
Fit the box to the bracket by clipping the screws on the back of the unit into the bracket. When
mounting the equipment, ensure free access for cable connections from below. Use cable an-
chors for strain relief.
4.2. Signalling of Power Management
Power
*) Applies to CLX Home GM and CLX Standard GM only.
Signalling of power management is handled by the ripple control receiver of the electricity com-
pany. The connection between the ripple control receiver and the products in the CLX Series is
type-dependent. It is described here using a Landis+Gyr
10
Like all electronic equipment, all products in the CLX Series must be protected
from humidity, in particular condensation.
*)
*)
and Reactive
®
receiver as an example.
L00410601-06_5b
