EVERYSPACE interior

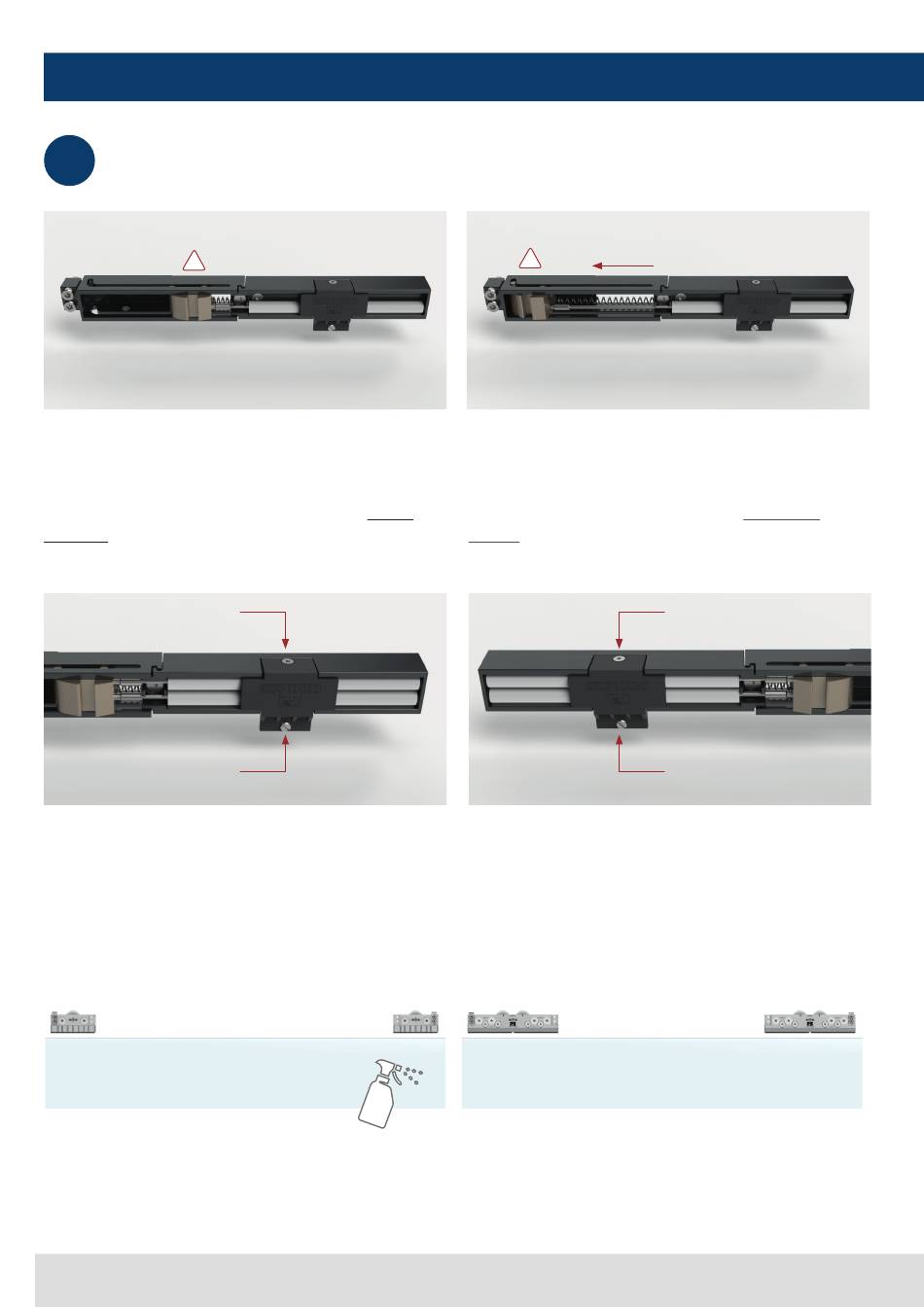

Laufwagen / Softstopp montieren

9
roll-carriage / mounting the Softstopp
!
Feder entspannt
spring is unloaded
9.A
Den Softstopp vorbereiten: Die Mitnehmergabel in
Pfeilrichtung schieben und damit die Federn spannen.
Beim Einbau des Softstopp müssen die Federn immer
gespannt sein.
(Teil
| part
1)
(Teil
| part
2)
Bei Verwendung des einseitigen Softstopp (Art-Nr.:
3441RAL7016-SSD50/100), muss dieser durch drehen
(Teil 1)
der Kunststoffkappe
angepasst werden. Somit zeigen die
die Glasführung immer nach unten.
9.B
Glas im Klemmbereich reinigen und Laufwagen auf die
Glaskante klemmen.
18
an die linke und rechte Seite
Zapfen(Teil 2)
für
!
Feder gespannt
spring is loaded
Prepare the Softstopp: Push the driving fork in the direction
of the arrow and thereby tensioning the springs. When
installing the Softstopp, the springs must always be
loaded.
When using the one-sided Softstopp (Art. no.:
3441RAL7016-SSD50/100), it must be adjusted by
(part 1)
turning the plastic cap
(part 2)
that the pins
for the glass guidance always point
downwards.
Clean the glass in the clamping area and clamp the roller
unit onto the edge of the glass.
(Teil
| part
1)
(Teil
| part
2)
to the left and right, so
