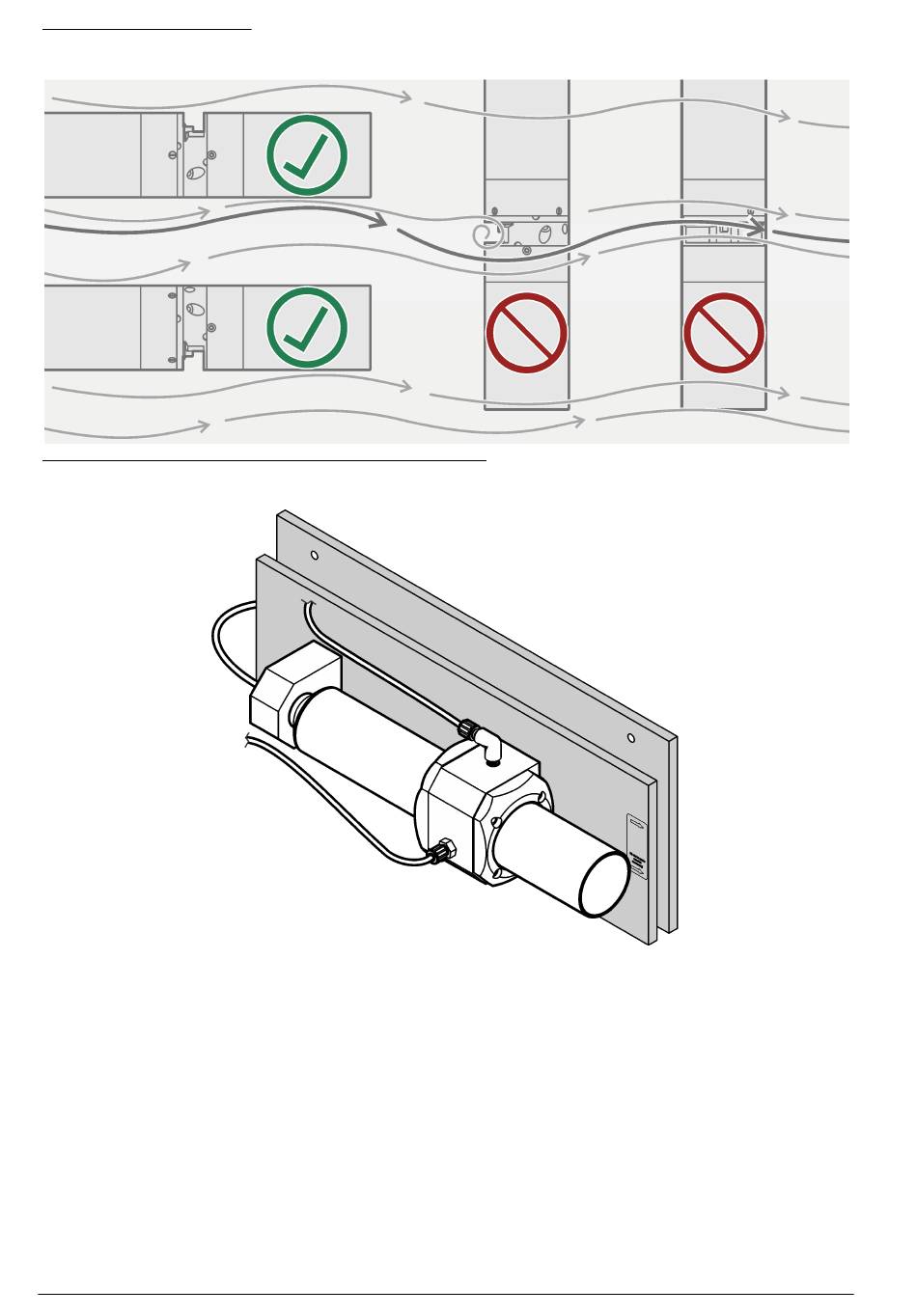

Figure 4 Flow direction
Figure 5 Sensor with flow through unit installation
3.3 Connect the probe to the controller
Connect the sensor cable to the quick-connect fitting of the SC controller. Keep the device connector
caps for future use. Refer to
Note: Extension cables are available if a longer cable is necessary.
10 English
Figure 6. Refer to the controller documentation for more information.
