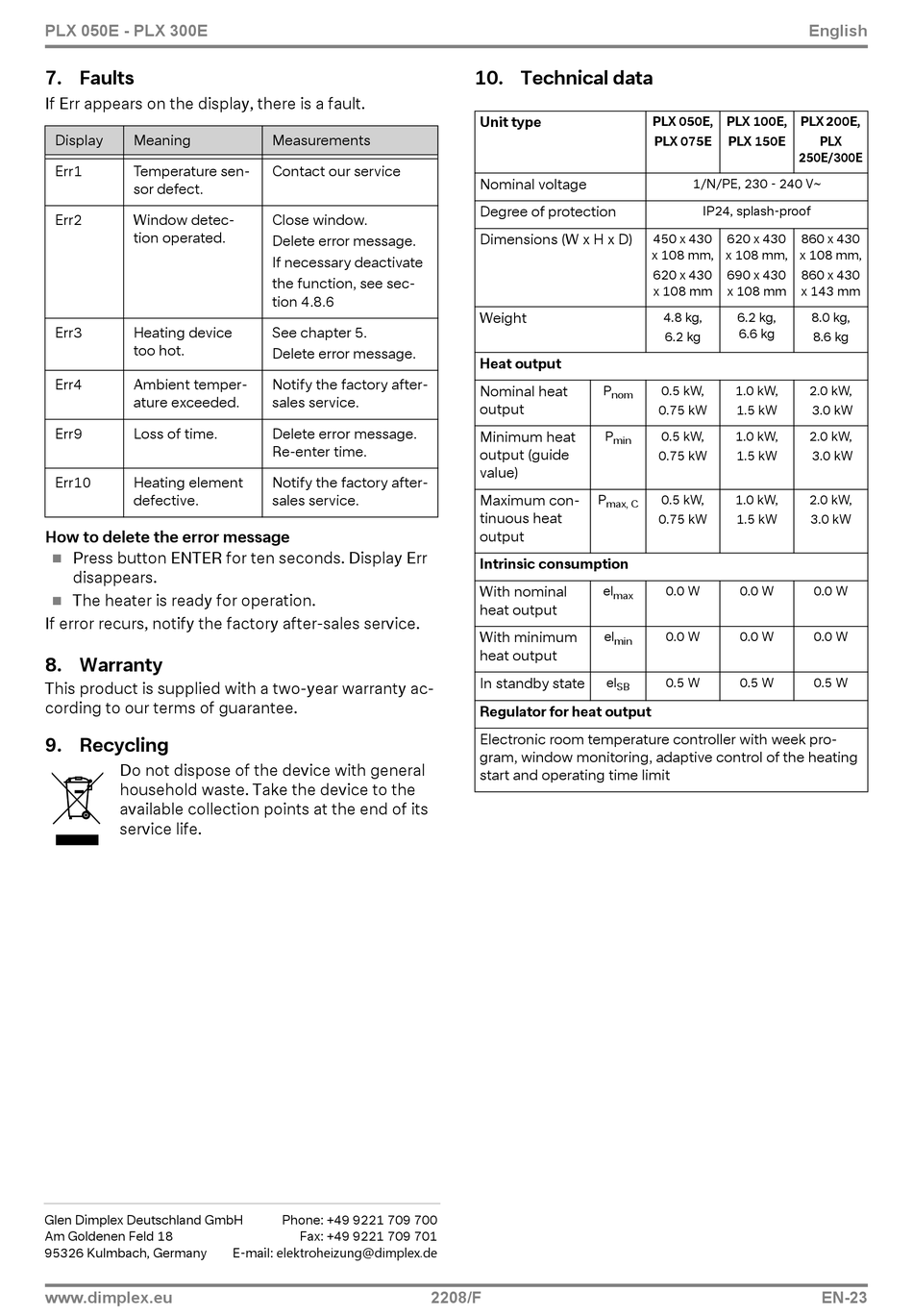

PLX 050E - PLX 300E
7. Faults
If Err appears on the display, there is a fault.
Display Meaning
Err1 Temperature sen-
sor defect.
Err2 Window detec-
tion operated.
Err3 Heating device
too hot.
Err4 Ambient temper-
ature exceeded.
Err9 Loss of time.
Err10 Heating element
defective.
How to delete the error message
Press button ENTER for ten seconds. Display Err

disappears.
The heater is ready for operation.

If error recurs, notify the factory after-sales service.
8. Warranty
This product is supplied with a two-year warranty ac-
cording to our terms of guarantee.
9. Recycling
Do not dispose of the device with general
household waste. Take the device to the
available collection points at the end of its
service life.
Glen Dimplex Deutschland GmbH
Am Goldenen Feld 18
95326 Kulmbach, Germany
www.dimplex.eu
Measurements
Contact our service
Close window.
Delete error message.
If necessary deactivate
the function, see sec-
tion 4.8.6
See chapter 5.
Delete error message.
Notify the factory after-
sales service.
Delete error message.
Re-enter time.
Notify the factory after-
sales service.
Phone: +49 9221 709 700
Fax: +49 9221 709 701
E-mail: elektroheizung@dimplex.de

10. Technical data

Unit type
Nominal voltage
Degree of protection
Dimensions (W x H x D)
Weight
Heat output
Nominal heat
output
Minimum heat
output (guide
value)
Maximum con- P
tinuous heat
output
Intrinsic consumption
With nominal
heat output
With minimum
heat output
In standby state
Regulator for heat output
Electronic room temperature controller with week pro-
gram, window monitoring, adaptive control of the heating
start and operating time limit
2208/F
PLX 050E, PLX 100E,
PLX 075E PLX 150E
1/N/PE, 230 - 240 V~
IP24, splash-proof
450 x 430 620 x 430
x 108 mm, x 108 mm,
620 x 430 690 x 430
x 108 mm x 108 mm
4.8 kg, 6.2 kg,
6.6 kg
6.2 kg
P 0.5 kW, 1.0 kW,
nom
0.75 kW 1.5 kW
P 0.5 kW, 1.0 kW,
min
0.75 kW 1.5 kW
0.5 kW, 1.0 kW,
max, C
0.75 kW 1.5 kW
el 0.0 W 0.0 W
max
el 0.0 W 0.0 W
min
el 0.5 W 0.5 W
SB
English
PLX 200E,
PLX
250E/300E
860 x 430
x 108 mm,
860 x 430
x 143 mm
8.0 kg,
8.6 kg
2.0 kW,
3.0 kW
2.0 kW,
3.0 kW
2.0 kW,
3.0 kW
0.0 W
0.0 W
0.5 W
EN-23
