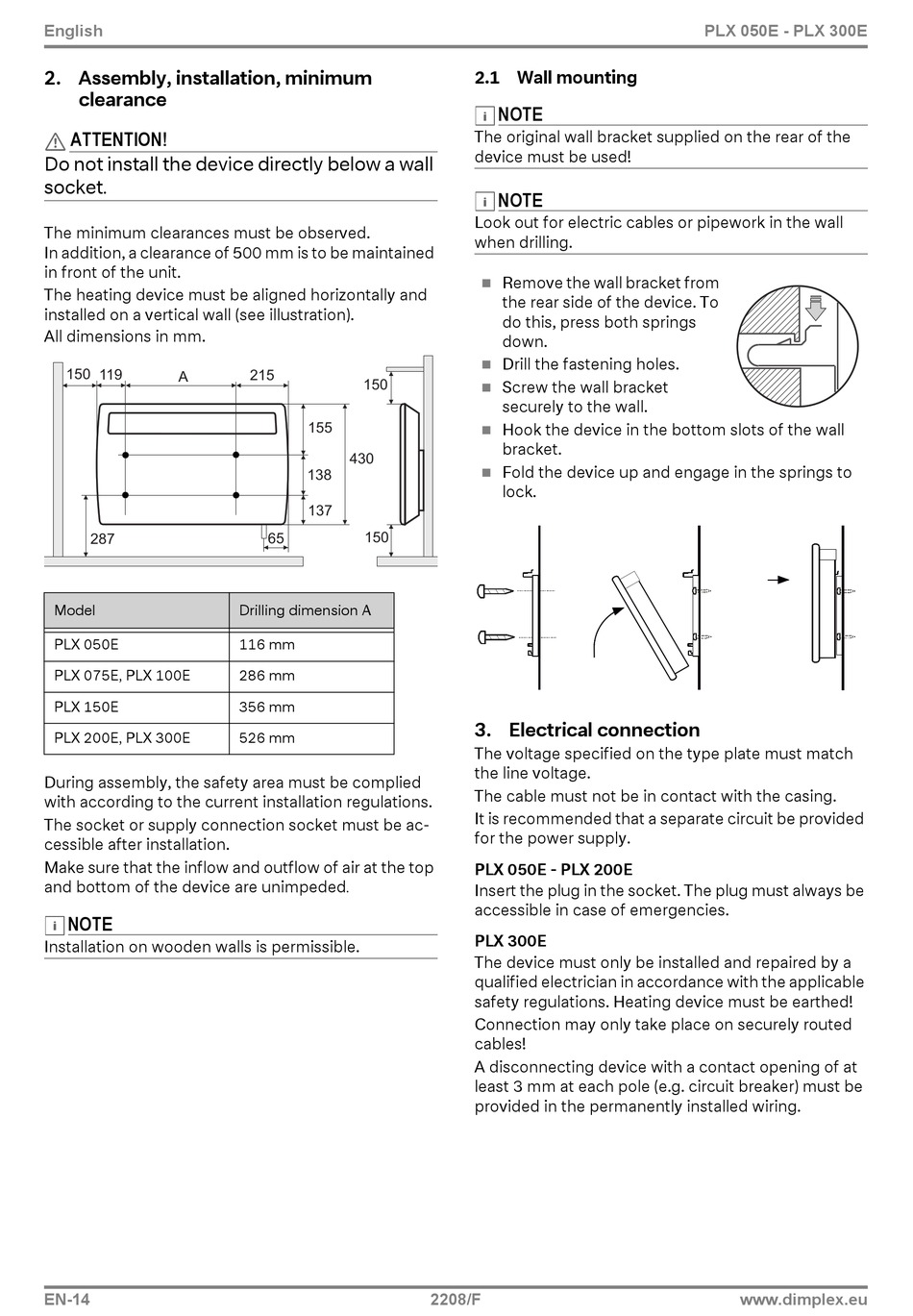

2. Assembly, installation, minimum
clearance
ATTENTION!
Do not install the device directly below a wall
socket.
The minimum clearances must be observed.
In addition, a clearance of 500 mm is to be maintained
in front of the unit.
The heating device must be aligned horizontally and
installed on a vertical wall (see illustration).
All dimensions in mm.
Model
PLX 050E
PLX 075E, PLX 100E
PLX 150E
PLX 200E, PLX 300E
During assembly, the safety area must be complied
with according to the current installation regulations.
The socket or supply connection socket must be ac-
cessible after installation.
Make sure that the inflow and outflow of air at the top
and bottom of the device are unimpeded
NOTE
Installation on wooden walls is permissible.
EN-14
Drilling dimension A
116 mm
286 mm
356 mm
526 mm
.
2.1 Wall mounting
NOTE
The original wall bracket supplied on the rear of the
device must be used!
NOTE
Look out for electric cables or pipework in the wall
when drilling.
Remove the wall bracket from
the rear side of the device. To
do this, press both springs
down.
Drill the fastening holes.
Screw the wall bracket
securely to the wall.
Hook the device in the bottom slots of the wall
bracket.
Fold the device up and engage in the springs to
lock.
3. Electrical connection
The voltage specified on the type plate must match
the line voltage.
The cable must not be in contact with the casing.
It is recommended that a separate circuit be provided
for the power supply.
PLX 050E - PLX 200E
Insert the plug in the socket. The plug must always be
accessible in case of emergencies.
PLX 300E
The device must only be installed and repaired by a
qualified electrician in accordance with the applicable
safety regulations. Heating device must be earthed!
Connection may only take place on securely routed
cables!
A disconnecting device with a contact opening of at
least 3 mm at each pole (e.g. circuit breaker) must be
provided in the permanently installed wiring.
2208/F
PLX 050E - PLX 300E
