PLX 050E - PLX 300E

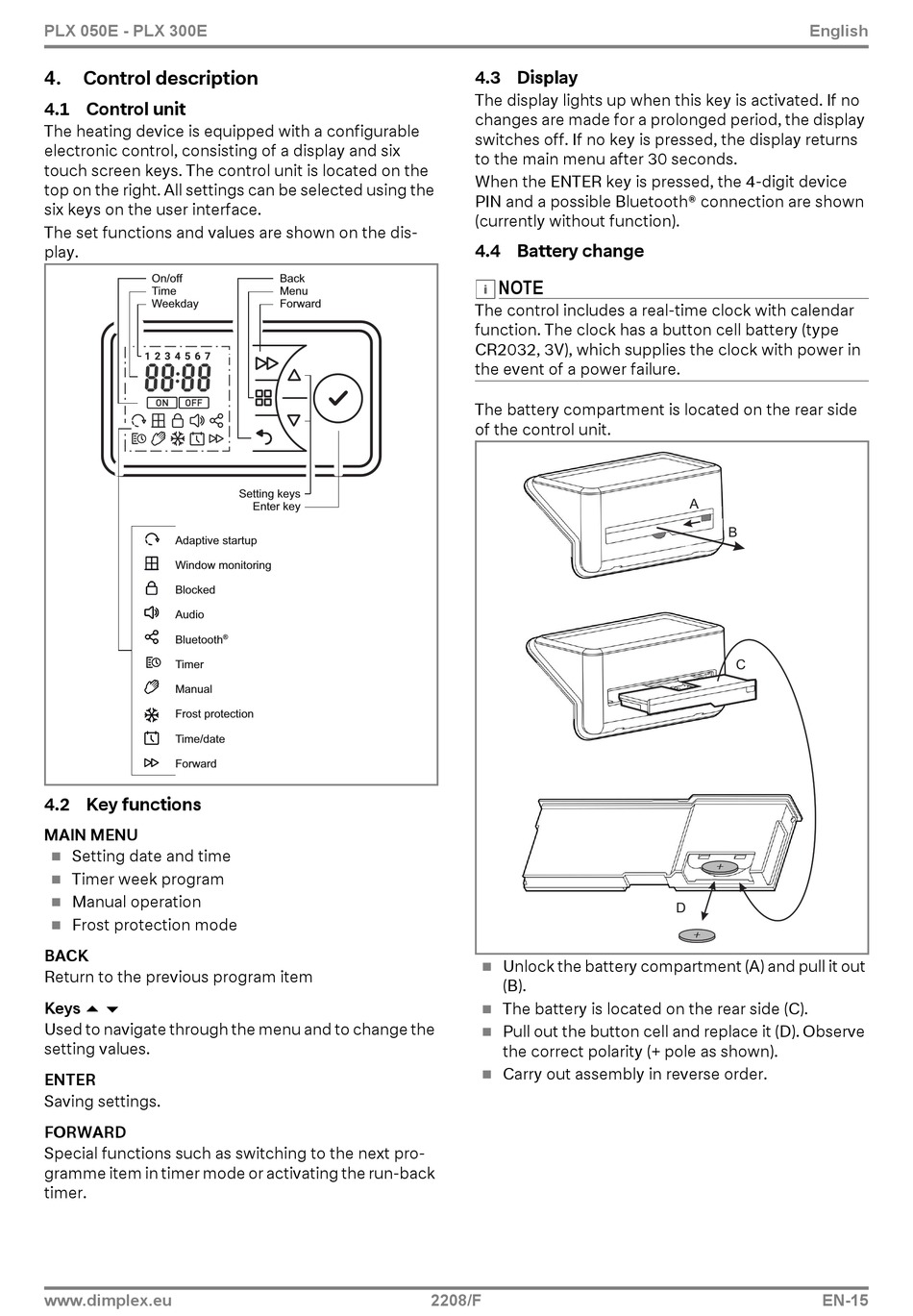

4.

Control description

4.1 Control unit

The heating device is equipped with a configurable
electronic control, consisting of a display and six
touch screen keys. The control unit is located on the
top on the right. All settings can be selected using the
six keys on the user interface.
The set functions and values are shown on the dis-
play.
On/off
Time
Weekday
Adaptive startup
Window monitoring
Blocked
Audio
Bluetooth
Timer
Manual
Frost protection
Time/date
Forward

4.2 Key functions

MAIN MENU
Setting date and time

Timer week program

Manual operation

Frost protection mode

BACK
Return to the previous program item
Keys  
Used to navigate through the menu and to change the
setting values.
ENTER
Saving settings.
FORWARD
Special functions such as switching to the next pro-
gramme item in timer mode or activating the run-back
timer.
www.dimplex.eu
Back
Menu
Forward
Setting keys
Enter key
®
4.3 Display
The display lights up when this key is activated. If no
changes are made for a prolonged period, the display
switches off. If no key is pressed, the display returns
to the main menu after 30 seconds.
When the ENTER key is pressed, the 4-digit device
PIN and a possible Bluetooth® connection are shown
(currently without function).

4.4 Battery change

NOTE
The control includes a real-time clock with calendar
function. The clock has a button cell battery (type
CR2032, 3V), which supplies the clock with power in
the event of a power failure.
The battery compartment is located on the rear side
of the control unit.
Unlock the battery compartment (A) and pull it out

(B).
The battery is located on the rear side (C).

Pull out the button cell and replace it (D). Observe

the correct polarity (+ pole as shown).
Carry out assembly in reverse order.

